Burl Audio B2 ADC

The Burl Audio B2 Bomber ADC is a reference 2-channel 24-bit/192kHz A/D converter engineered to bring analog depth, weight, and dimensional realism to digital recording. Unlike conventional converters that rely on cheap operational amplifiers and IC-based input stages, the B2 Bomber features Burl Audio’s custom BX1 input transformers delivering the warmth, dynamic saturation, and feel of tracking to 2-inch tape.

Pushing analog levels into the proprietary BX1 transformer stage saturates signal transients smoothly, rounding off harsh peaks and adding low-end weight without digital clipping.

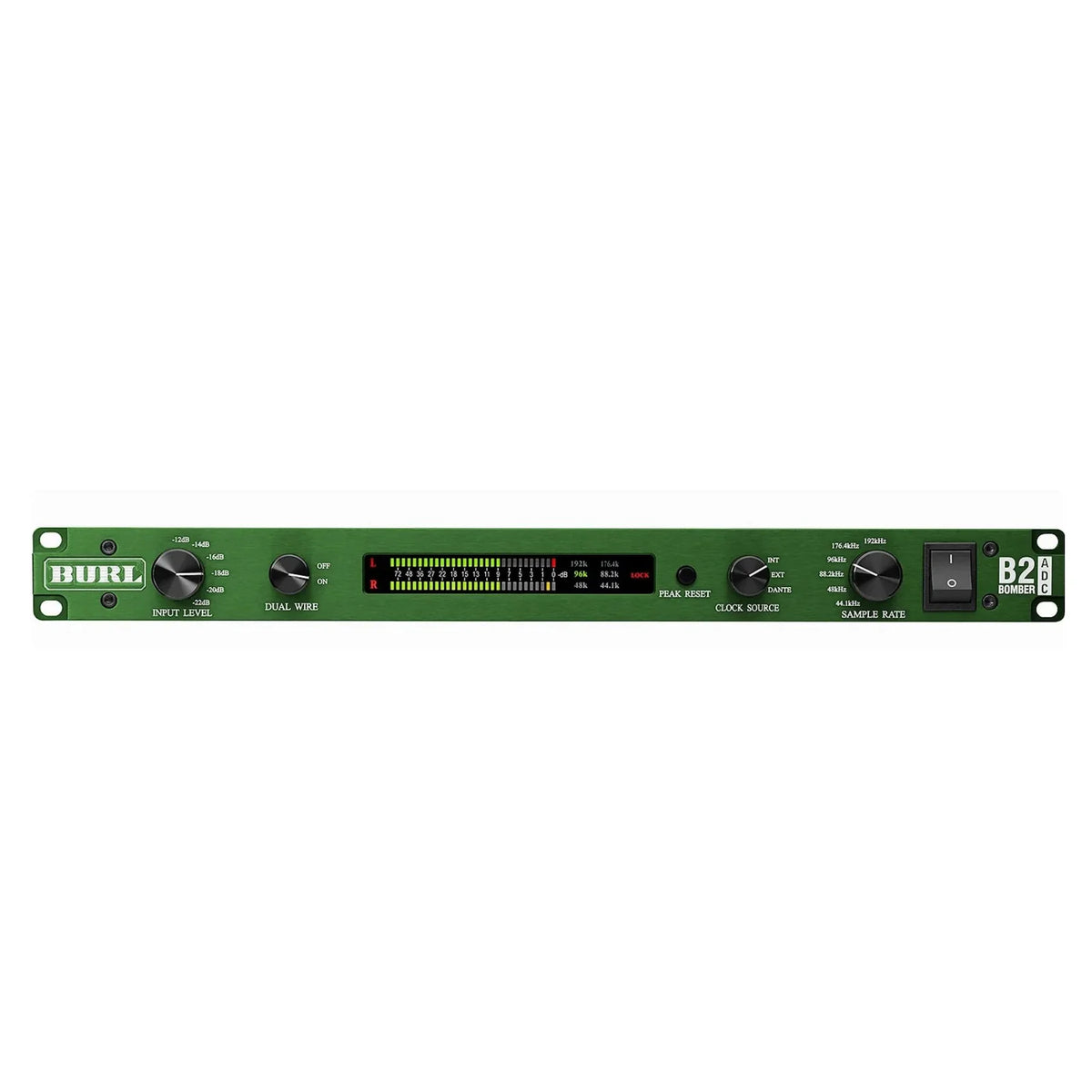

Designed specifically for tracking, mix capture, and mastering workflows, the front panel features a 6-position attenuator to quickly readjust input headroom settings. Simultaneous RMS LED metering provides continuous visual tracking of signal levels, ensuring precise gain staging before hitting your DAW.

Key Features

• Proprietary Burl BX1 Transformers: High-definition input transformers deliver analogue saturation, natural compression, and deep bass extension.

• Class-A Discrete Signal Path: Direct-coupled, zero-feedback circuit topology eliminates capacitor distortion for maximum transparency and transient speed.

• Ultra-Low Jitter Clocking: Integrated master clock with two BNC outputs to sync downstream digital hardware with rock-solid stability.

• 6-Position Headroom Attenuator: Stepped front-panel control to adjust input sensitivity for hitting the transformers hotter or cleaner.

• Simultaneous Peak & RMS Metering: High-resolution 30-segment display for clear visual monitoring during mix down and mastering.

• Flexible Digital Outputs: Simultaneous transmission across AES/EBU, S/PDIF, and TOSLink optical connections.

• Heavy Duty Construction: 1U rack mount steel chassis built for continuous operation in high-end commercial facilities.

Technical Specifications

• Form Factor: 1U 19-Inch Rackmount Unit

• Channel Count: 2 Channels (A/D Conversion)

• Conversion Resolution: 24-Bit / $44.1\text{ kHz}$ to $192\text{ kHz}$

• Input Stage: Proprietary Burl Audio BX1 Transformers

• Circuit Topology: Discrete Class-A Transistors (Zero Feedback, Zero Capacitors in Signal Path)

• Dynamic Range: $120\text{ dB}$ (A-weighted) / $117\text{ dB}$ (unweighted)

• THD+N: $-100\text{ dB}$ ($+4\text{ dBu}=-15\text{ dBFS}$) / $-94\text{ dB}$ ($+18\text{ dBu}=-1\text{ dBFS}$)

• Frequency Response:

  • $12\text{ Hz}-22\text{ kHz}(\pm 0.1\text{ dB}@48\text{ kHz})$

  • $15\text{ Hz}-46\text{ kHz}(\pm 0.1\text{ dB}@96\text{ kHz})$

  • $18\text{ Hz}-94\text{ kHz}(\pm 0.1\text{ dB}@192\text{ kHz})$

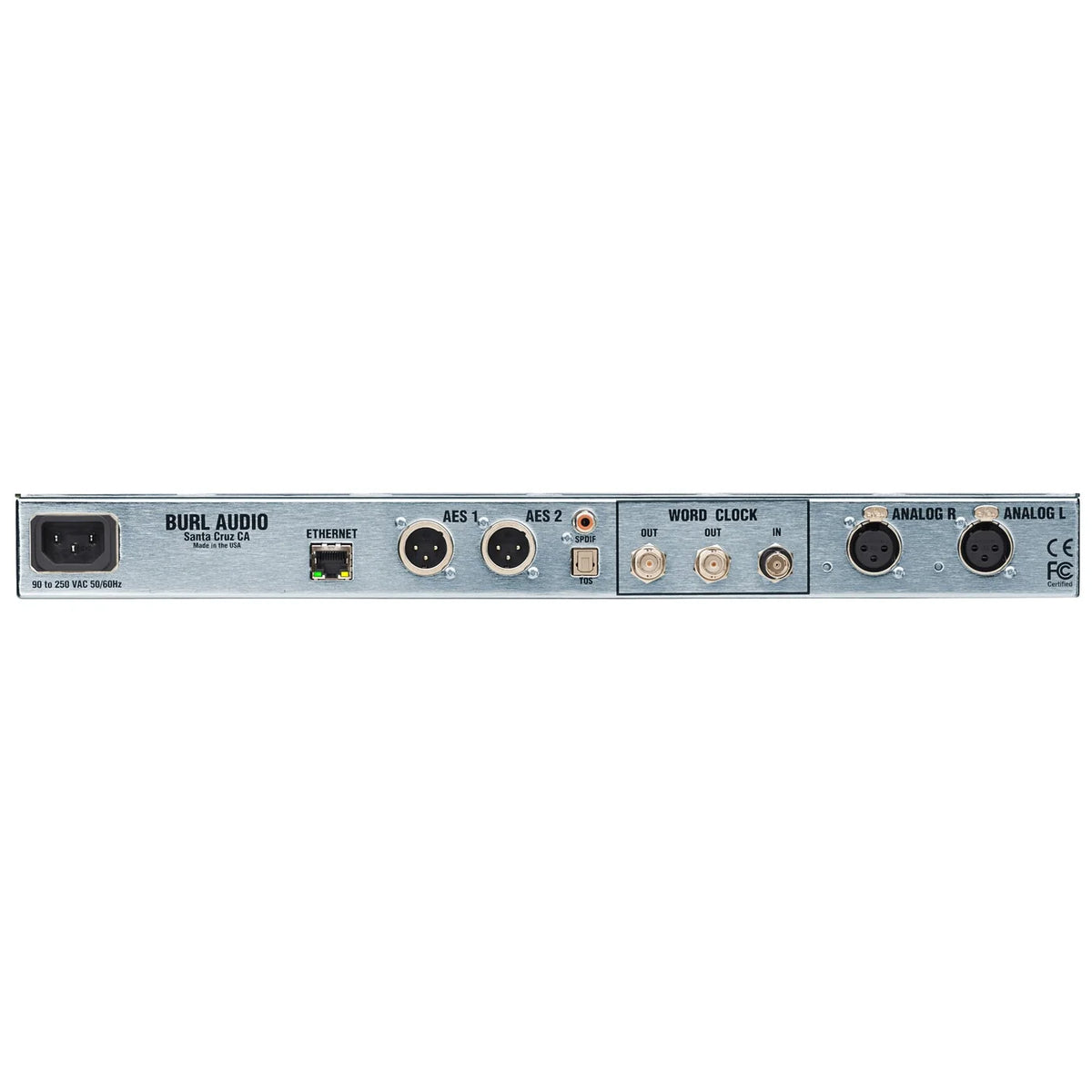

• Analog Inputs: 2x XLR Female (Balanced)

• Digital Outputs: 2x AES/EBU (XLR), 1x S/PDIF (Coaxial RCA), 1x TOSLink Optical

• Word Clock I/O: 1x BNC Input, 2x BNC Clock Outputs

• Power Requirements: Internal AC Power Supply
