Burl Audio BAD4M For B16

The Burl Audio BAD4M is a 4-channel analog-to-digital converter daughter card purpose-built for critical mastering, mix bus conversion, and high-end tracking within the B80 and B16 Mothership chassis. Combining Burl Audio’s mastering grade ADC conversion path with ultimate analog flexibility, the BAD4M features dual input stages: a switchable BX1 transformer-coupled path for rich, tape-like harmonic saturation, and a transformerless Class-A path powered by NextGen BOPA14 discrete op-amps for pristine, uncoloured capture of analog signals.

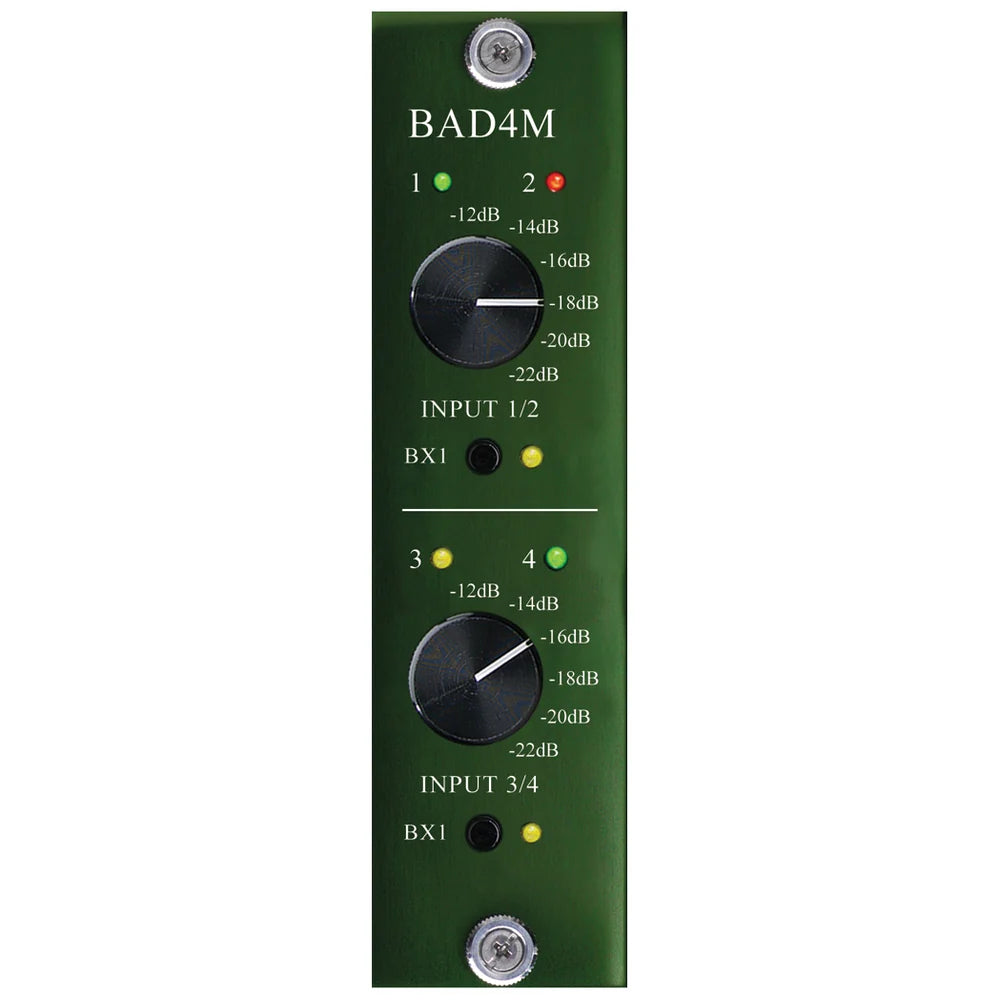

Built specifically for mastering workflows, the BAD4M incorporates stepped input attenuators derived from the legendary B2 Bomber ADC, ensuring accurate level matching.

Equipped with dedicated rear-panel XLR balanced inputs, the BAD4M bypasses multi-pin DB25 breakout cables for direct, clean connections. Hardware jumpers on the board allow engineers to select between Short Delay and Long Delay digital reconstruction filter modes, as well as automatic Avid delay compensation to guarantee phase alignment when used as hardware inserts in Pro Tools.

Key Features

• 4-Channel Mastering A/D Conversion: Premium 24-bit/192kHz conversion engineered specifically for mix bus and mastering applications.

• Dual Switchable Input Paths: Select between BX1 input transformers for analog saturation or BOPA14 transformerless Class-A paths for ultra-transparent capture.

• Stepped Input Attenuators: Precision B2 Bomber-style stepped gain control for perfect channel balance and exact recall.

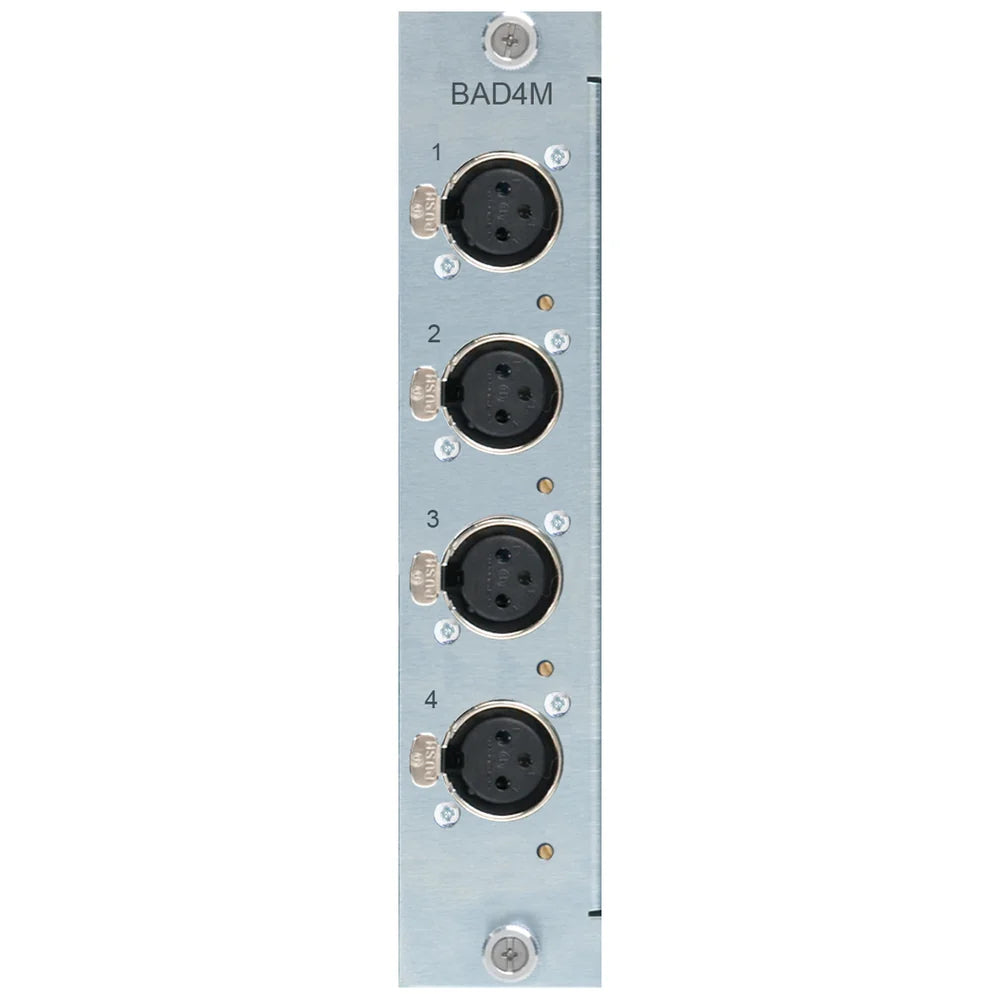

• Direct XLR Connectivity: 4 female XLR inputs on the rear card faceplate for direct mastering-grade cabling.

• Selectable Digital Filters: Configurable Short Delay and Long Delay ADC filter modes via onboard hardware jumpers.

• Pro Tools Delay Matching: Integrated Avid delay compensation for phase-aligned hardware insert loops.

• Mothership Compatibility: Hot-swappable daughter card compatible across all B80 Mothership and B16 chassis.

Technical Specifications

• Form Factor: Single-Slot Daughter Card (B80 and B16 Mothership Compatible)

• Channel Count: 4 Channels (A/D Conversion)

• Conversion Resolution: 24-Bit / $44.1\text{ kHz}$ to $192\text{ kHz}$

• Analog Input Stages:

  • Transformer Path: Proprietary Burl Audio BX1 Input Transformers

  • Transformerless Path: Class-A Discrete NextGen BOPA14 Op-Amps

• Attenuators: Stepped Precision Input Attenuators

• Analog Input Connectors: 4x XLR Female (Direct Panel Mount)

• Dynamic Range: $115\text{ dB}$ (A-weighted)

• THD+N: $-96\text{ dB}$ (Full scale output $=+22\text{ dBu}$)

• Frequency Response:

  • $10\text{ Hz}-22\text{ kHz}(\pm 0.1\text{ dB}@48\text{ kHz})$

  • $10\text{ Hz}-30\text{ kHz}(\pm 0.1\text{ dB}@96\text{ kHz})$

  • $10\text{ Hz}-30\text{ kHz}(\pm 0.1\text{ dB}@192\text{ kHz})$
