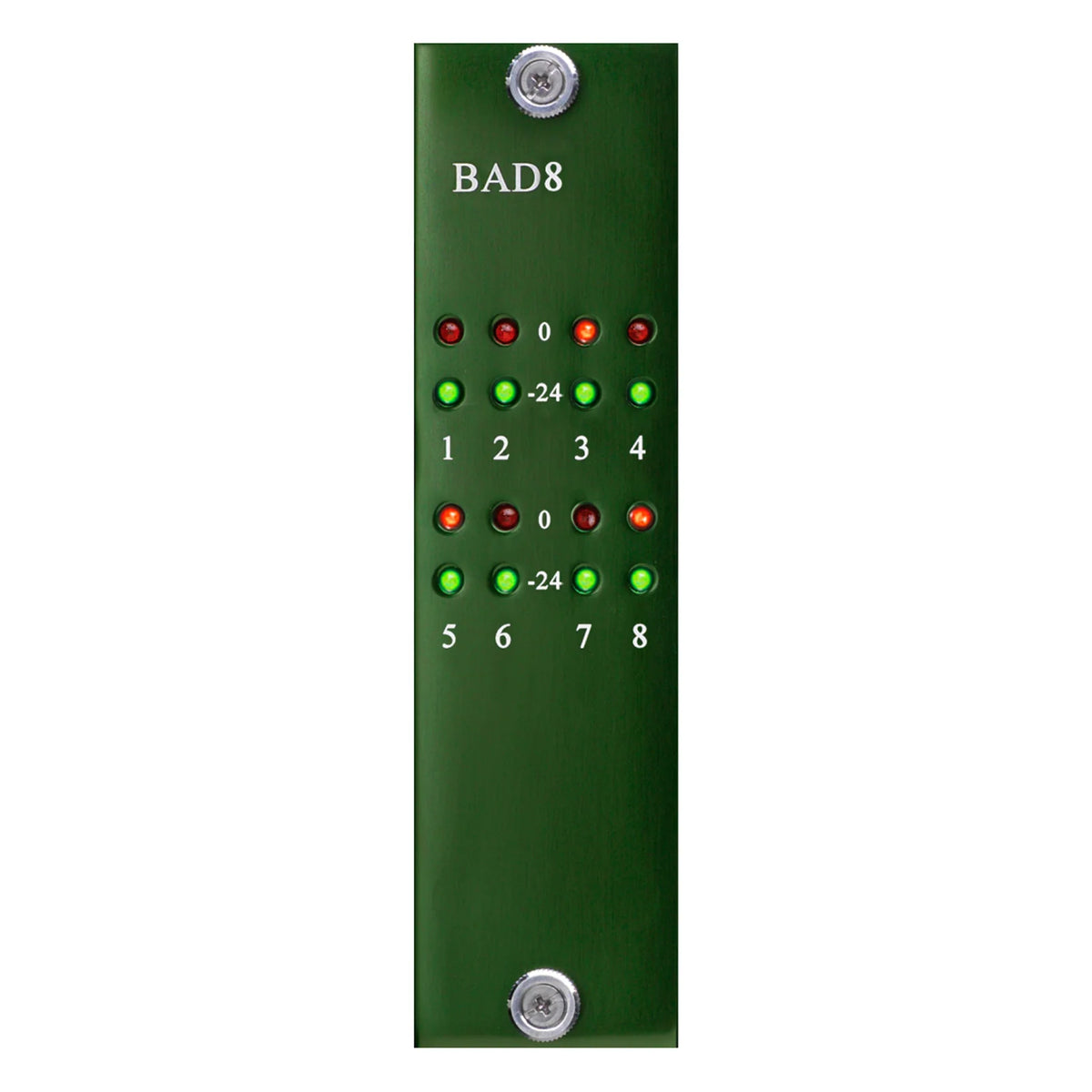

Burl Audio BAD8 For B80

The Burl Audio BAD8 is an 8-channel analog-to-digital converter module engineered for the B80 and B16 Mothership modular chassis. Built on Burl Audio’s NextGen Analog architecture, the BAD8 utilises a redesigned, Burl BX1 input transformer on every channel. Designed for tracking, hybrid summing, and commercial recording setups, the BAD8 turns incoming signals into dynamic, tape like digital audio with harmonic warmth, low end punch, and three dimensional spatial depth.

By pairing Class A transistor topology with the small footprint BX1 input transformer, the BAD8 delivers 8 full channels of classic Burl analog saturation per slot, allowing up to 80 channels of transformer coupled ADC in a single 4U B80 Mothership chassis.

Hardware jumpers allow the customisation of the digital conversion performance. Users can switch between the default Short Delay filter (ultra-low latency with classic punch) and the Long Delay filter (for a more forward midrange hump). Onboard jumpers also enable phase accurate Avid HD I/O delay matching and latency alignment when running alongside BAD4 daughter cards in complex hybrid rigs.

Key Features

• 8-Channel A/D Conversion: Delivers 8 channels of 24-bit/192kHz conversion in a single Mothership slot.

• NextGen Class-A Discrete Path: Direct-coupled, zero-capacitor circuit topology for maximum dynamic response and high headroom.

• Proprietary BX1 Input Transformers: High-definition custom transformers add organic tape-like saturation and low-end stability on every channel.

• Configurable Digital Filters: Selectable Short Delay or Long Delay reconstruction filter settings via onboard hardware jumpers.

• Avid & BAD4 Delay Matching: Hardware alignment jumpers ensure sample-accurate delay compensation across Pro Tools sessions and mixed card setups.

• DB25 Analog Inputs: Industry-standard DB25 female connector (TASCAM pinout) for clean multi-channel cabling.

• Hot-Swappable Mothership Design: Fully compatible across all B80 Mothership and B16 chassis.

Technical Specifications

• Form Factor: Single-Slot Daughter Card (B80 / B16 Mothership Compatible)

• Channel Count: 8 Channels (A/D Conversion)

• Conversion Resolution: 24-Bit / $44.1\text{ kHz}$ to $192\text{ kHz}$

• Analog Circuitry: Direct-Coupled Class-A Discrete Transistor Design

• Input Transformers: Proprietary Burl Audio BX1 (High-Density Form Factor)

• Analog Input Connector: 1x DB25 Female (Balanced, TASCAM Pinout)

• Dynamic Range: $115\text{ dB}$ (A-weighted)

• THD+N: $-96\text{ dB}$ (Full scale output $=+22\text{ dBu}$)

• Frequency Response:

  • $10\text{ Hz}-22\text{ kHz}(\pm 0.1\text{ dB}@48\text{ kHz})$

  • $10\text{ Hz}-30\text{ kHz}(\pm 0.1\text{ dB}@96\text{ kHz})$

  • $10\text{ Hz}-30\text{ kHz}(\pm 0.1\text{ dB}@192\text{ kHz})$
