Burl Audio Black BDA16

The Burl Audio Black BDA16 is a 16-channel digital-to-analog converter daughter card engineered specifically for the B80 and B16 Mothership modular chassis. Designed to maximize channel density for large summing setups, hybrid outboard loops, and immersive multi-speaker monitoring, the BDA16 delivers 16 channels of high-resolution 24-bit/192kHz D/A conversion in a single card slot. Built on Burl’s NextGen Class-A discrete architecture powered by proprietary BOPA14 op-amps, it provides smooth high-frequency clarity, warm low-end weight, and deep spatial imaging across all 16 outputs.

Designed to take full advantage of the Mothership 3 intercommunication architecture, the BDA16 automatically maps 16 continuous analog output channels per slot across MADI, Dante, or SoundGrid networks.

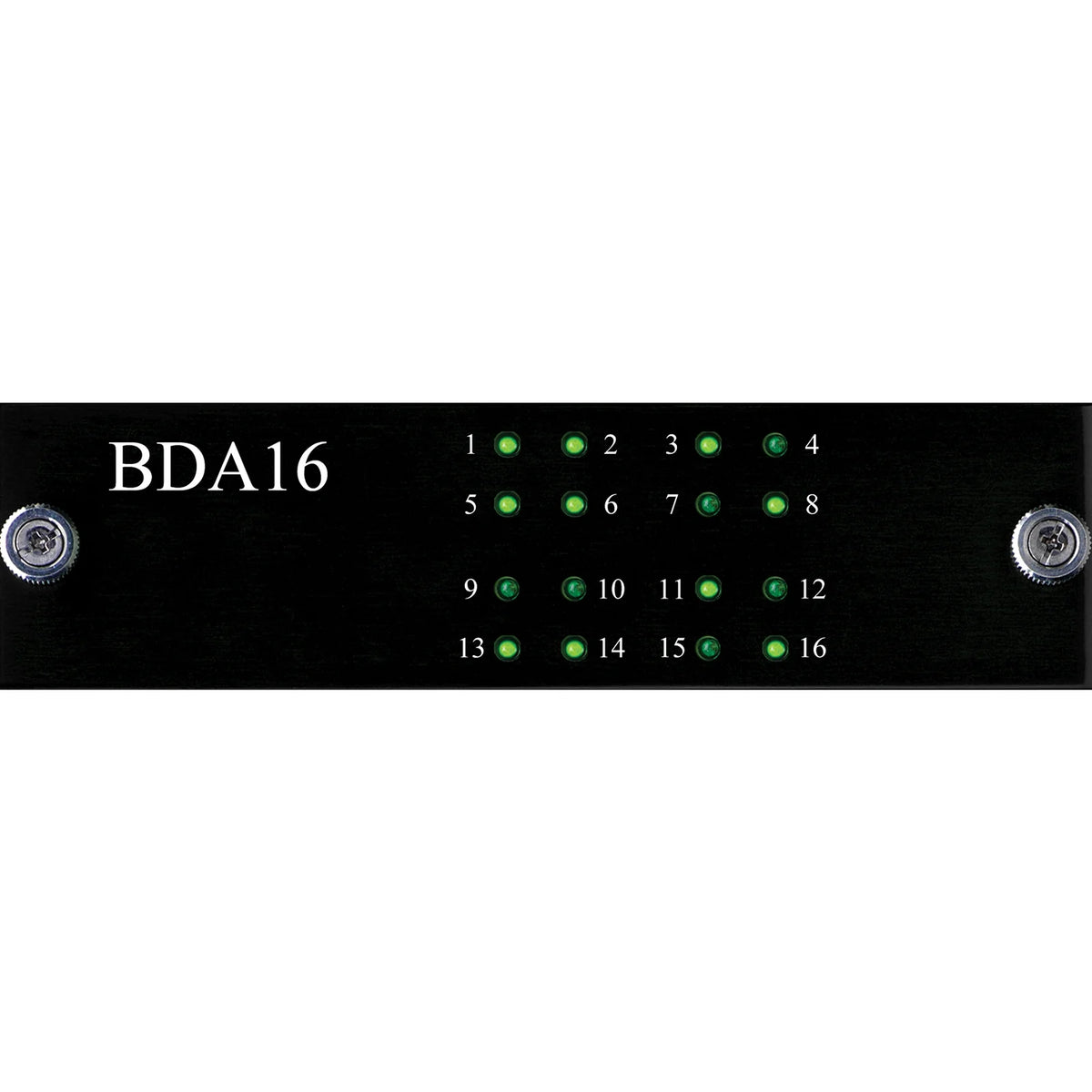

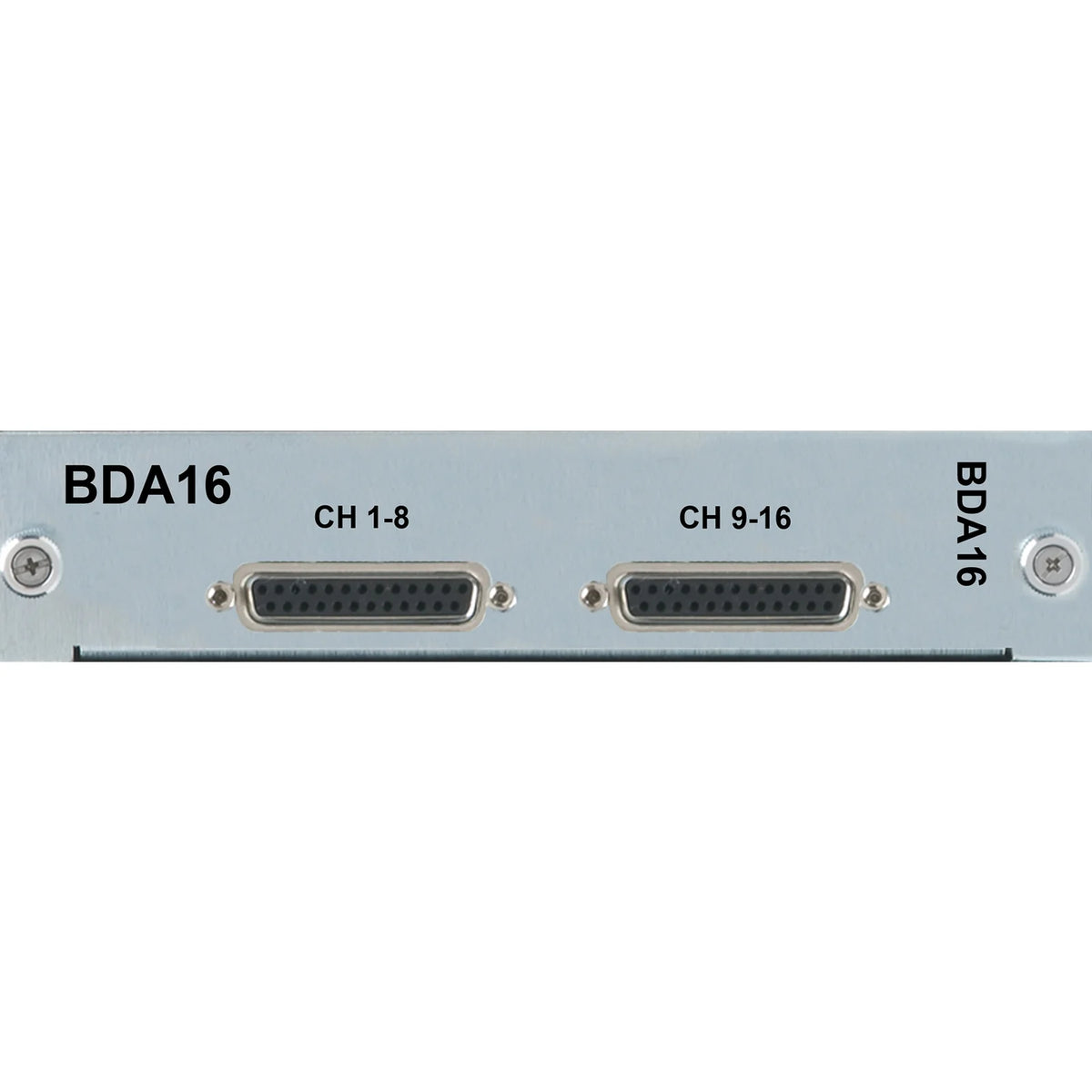

Equipped with two industry-standard DB25 female connectors on the rear faceplate, the BDA16 outputs 16 balanced analog channels in a compact, single-slot form factor. The front panel features individual LED status indicators for all 16 channels for real-time visual signal monitoring. Integrated Avid delay compensation ensures sample-accurate phase alignment when running hardware inserts alongside other Mothership daughter cards in Pro Tools.

Key Features

• 16-Channel D/A Conversion: Delivers 16 channels of high-resolution D/A conversion in a single Mothership slot.

• NextGen BOPA14 Discrete Op-Amps: Class-A discrete transistor path using BOPA14 op-amps for warm, high-headroom analog output.

• Anodized Black Faceplate: Matches the sleek visual aesthetic options of the Burl BLACK series.

• Up to 128 DAC Channels per B80 Frame: Scale up to 128 continuous DAC output channels in a single 4U B80 chassis.

• Dual DB25 Analog Outputs: 2x DB25 female connectors (TASCAM pinout, 8 channels each) for streamlined multi-channel audio snakes.

• Front-Panel Signal LEDs: Clear LED signal status indicators for all 16 output channels.

• Avid Hardware Delay Matching: Maintains sample-accurate phase alignment across Pro Tools sessions.

Technical Specifications

• Form Factor: Single-Slot Daughter Card (B80 / B16 Mothership 3 Compatible)

• Channel Count: 16 Channels (D/A Conversion)

• Conversion Resolution: 24-Bit / $44.1\text{ kHz}$ to $192\text{ kHz}$

• Analog Circuitry: Direct-Coupled Class-A Discrete Topology (BOPA14 Op-Amps)

• Faceplate Finish: Anodized Black

• Analog Output Connectors: 2x DB25 Female (Balanced, TASCAM Pinout — Channels 1–8 and 9–16)

• Signal Indication: 16x Front-Panel Signal Status LEDs

• Max DAC Capacity:

  • B16 Chassis: Up to 32 DAC Channels

  • B80 Chassis: Up to 128 DAC Channels ($44.1\text{ kHz}/48\text{ kHz}$)
