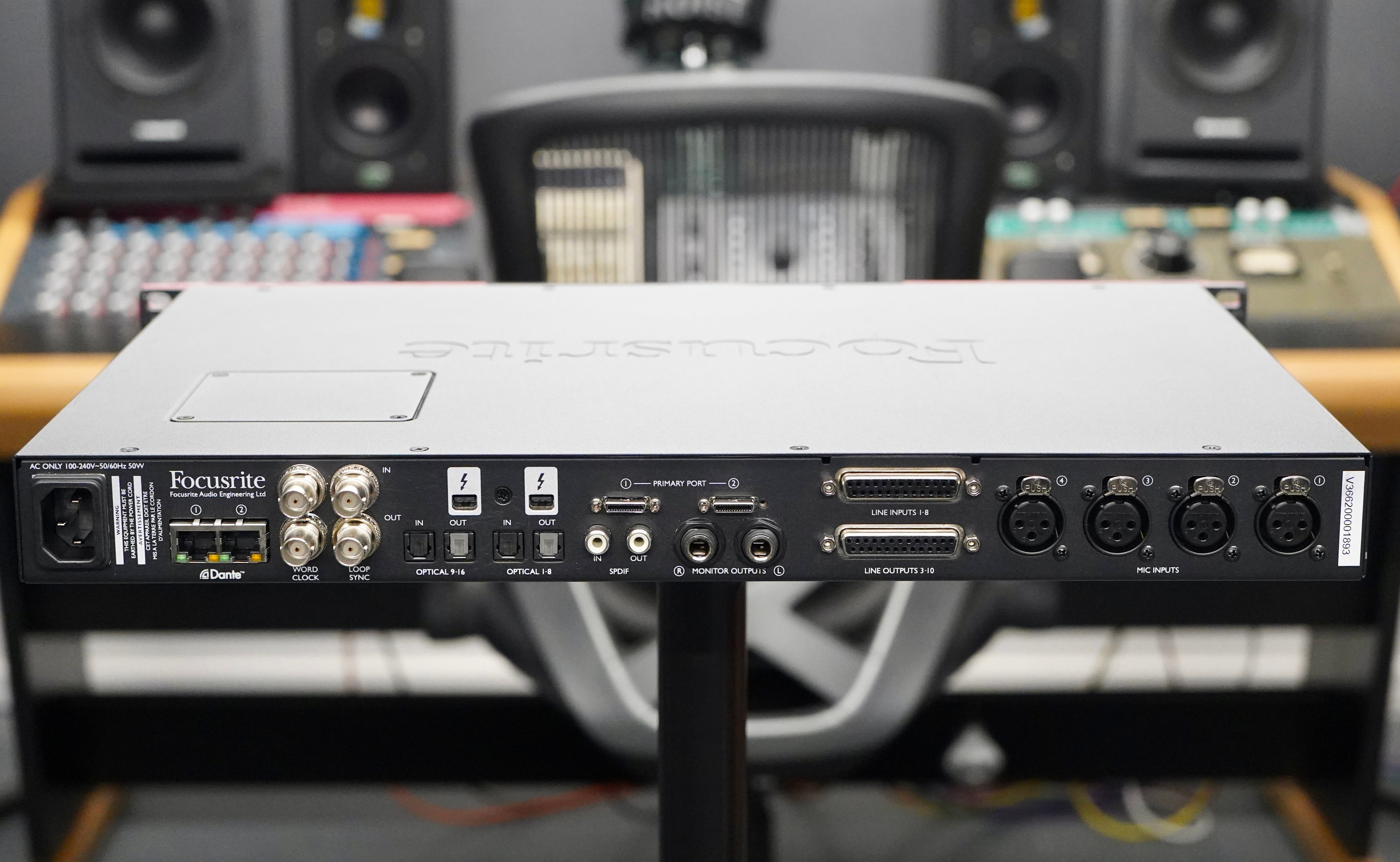

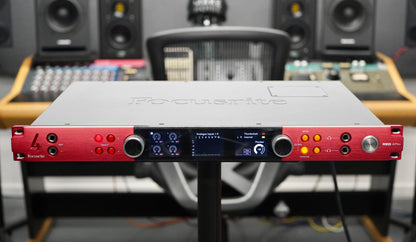

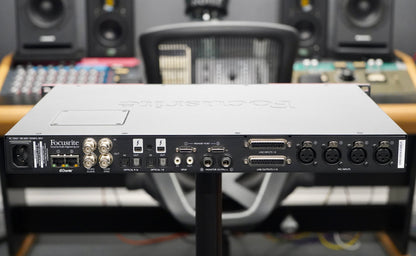

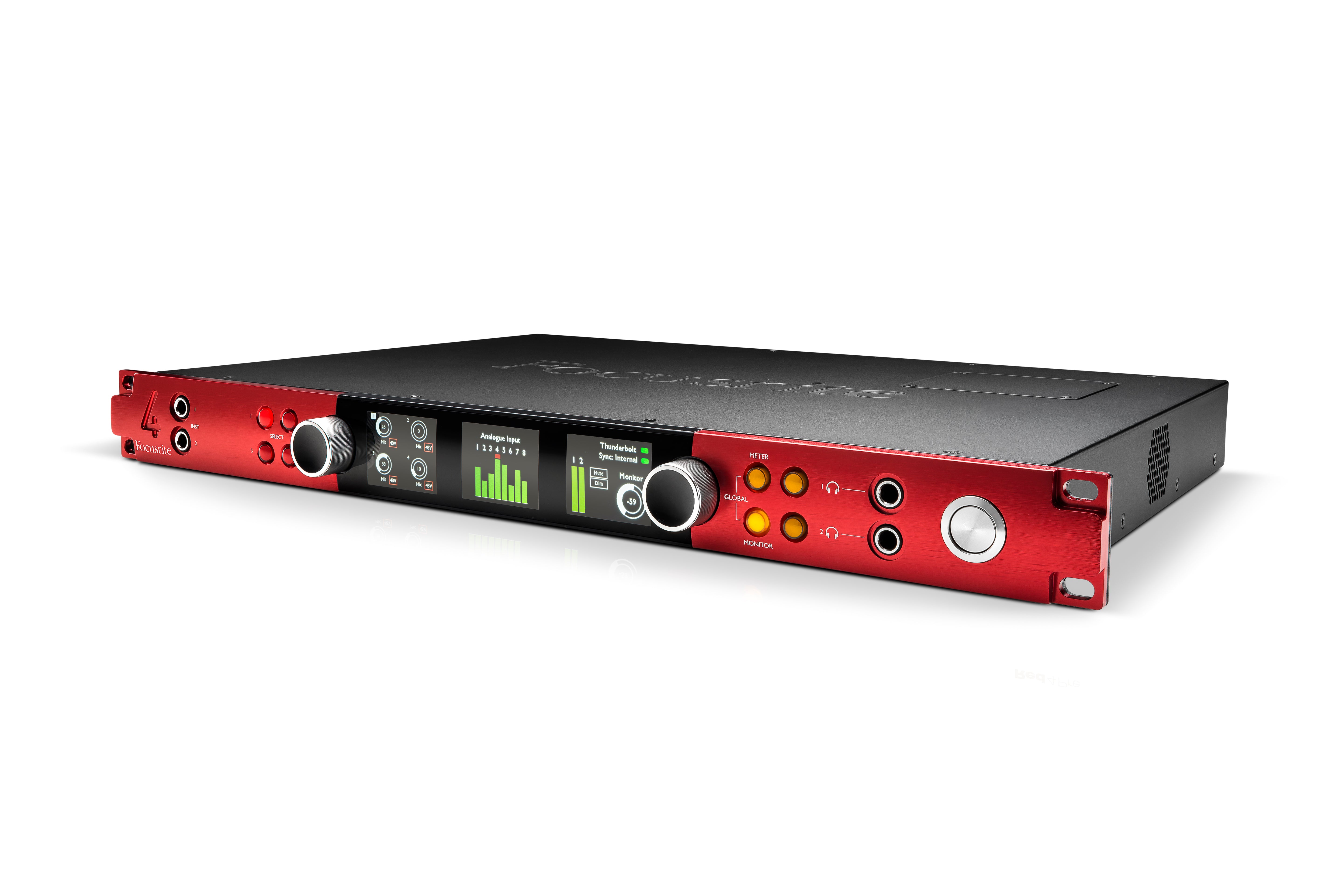

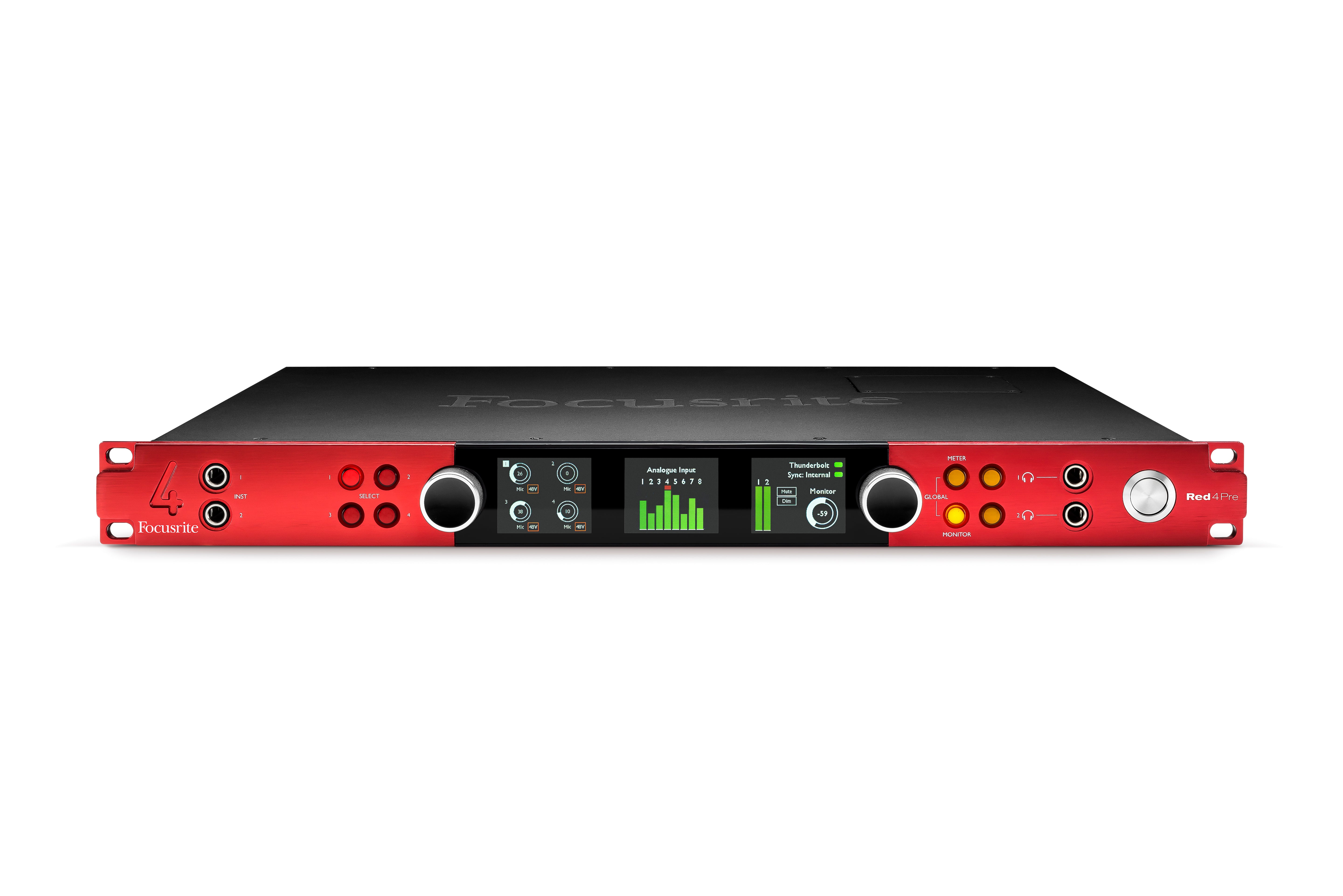

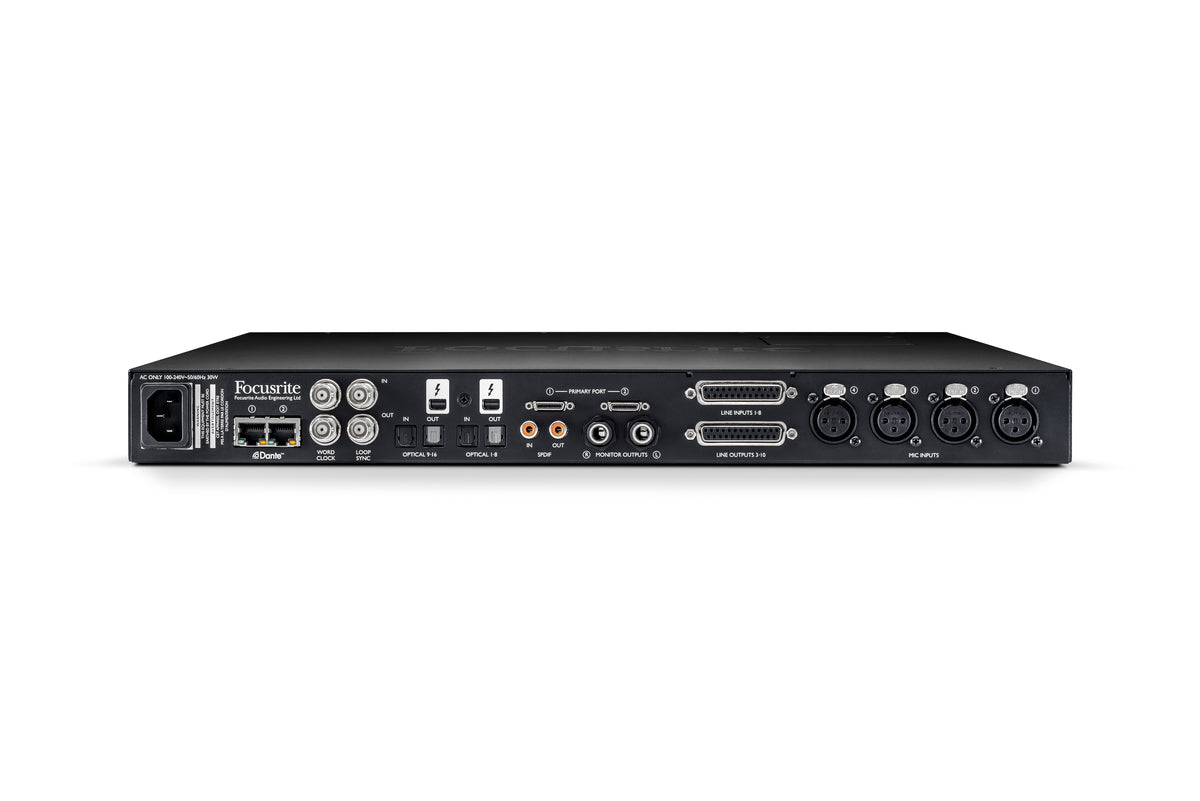

Focusrite Red 4Pre
The Focusrite Red 4Pre is a high-performance 58x64 audio interface designed for elite tracking, mixing, and commercial post-production environments. Combining dual Thunderbolt 2 ports, DigiLink connectivity for Pro Tools HD, and native Dante AoIP networking in a compact 1U chassis. Using two parallel A/D converters per channel helps the 4Pre achieve a stunning dynamic range and lower noise floor.
Key Features
-
Multi-Format Host Connectivity: Dual Thunderbolt 2 ports, dual DigiLink ports for Pro Tools HD, and dual RJ45 Dante ports built-in standard.
-
Four Red Evolution Preamps: Digitally controllable gain with recallable software settings and switchable analog Air mode.
-
Ultra-Low Latency Performance: High-speed Thunderbolt architecture allows tracking through plugins in real time without distracting delay.
-
Parallel Path AD/DA Conversion: Delivers pristine dynamic range (118 dB A/D, 121 dB D/A) and microscopic total harmonic distortion.
-
High-Density Analog & Digital I/O: Features 8 line inputs/outputs via DB-25, 2 front-panel instrument DIs, 2 independent headphone outputs, and ADAT/SPDIF digital I/O.
-
Network Expandability: Add up to 64 additional channels of audio over IP by connecting external Dante devices via Ethernet.
Technical Specifications
-
Form Factor: 1U Standard 19" Rackmount
-
Simultaneous Channel I/O: 58 Inputs / 64 Outputs
-
Audio Resolution: Up to 24-bit / 192 kHz
-
Host Connectivity: 2x Thunderbolt 2, 2x Mini-DigiLink (Pro Tools HD/HDX), 2x RJ-45 (Dante Ethernet)
-
Microphone Preamps: 4x Digitally Controlled Red Evolution Preamps with Air Mode Emulation
-
Preamp Gain Range: 0 to +63 dB
-
Dynamic Range: 118 dB A-weighted (Inputs), 121 dB A-weighted (Outputs)
-
Analog Inputs: 4x XLR (Mic), 8x Line via DB-25, 2x 1/4" TS Front-Panel Instrument DIs
-
Analog Outputs: 8x Line via DB-25, 2x 1/4" TRS Monitor Out, 2x Stereo Headphone Out
-
Digital I/O: 2x ADAT Optical (Up to 16 Ch), 1x S/PDIF Coaxial I/O, Word Clock In/Out, Loop Sync In/Out
