Focusrite RedNet AM2

The Focusrite RedNet AM2 is a compact, roadworthy Dante receiver unit providing stereo headphone and line-level monitoring directly from an AoIP network. Combining a high-power headphone amplifier with two balanced line outputs in a rugged aluminum chassis, it is an essential monitoring solution for live performance stages, broadcast commentary positions, and multi-room studio setups. Engineered with a robust internal headphone amplifier that effortlessly drives both low and high impedance headphones (up to $600\Omega$) with pristine clarity, high volume output, and an exceptional dynamic range.

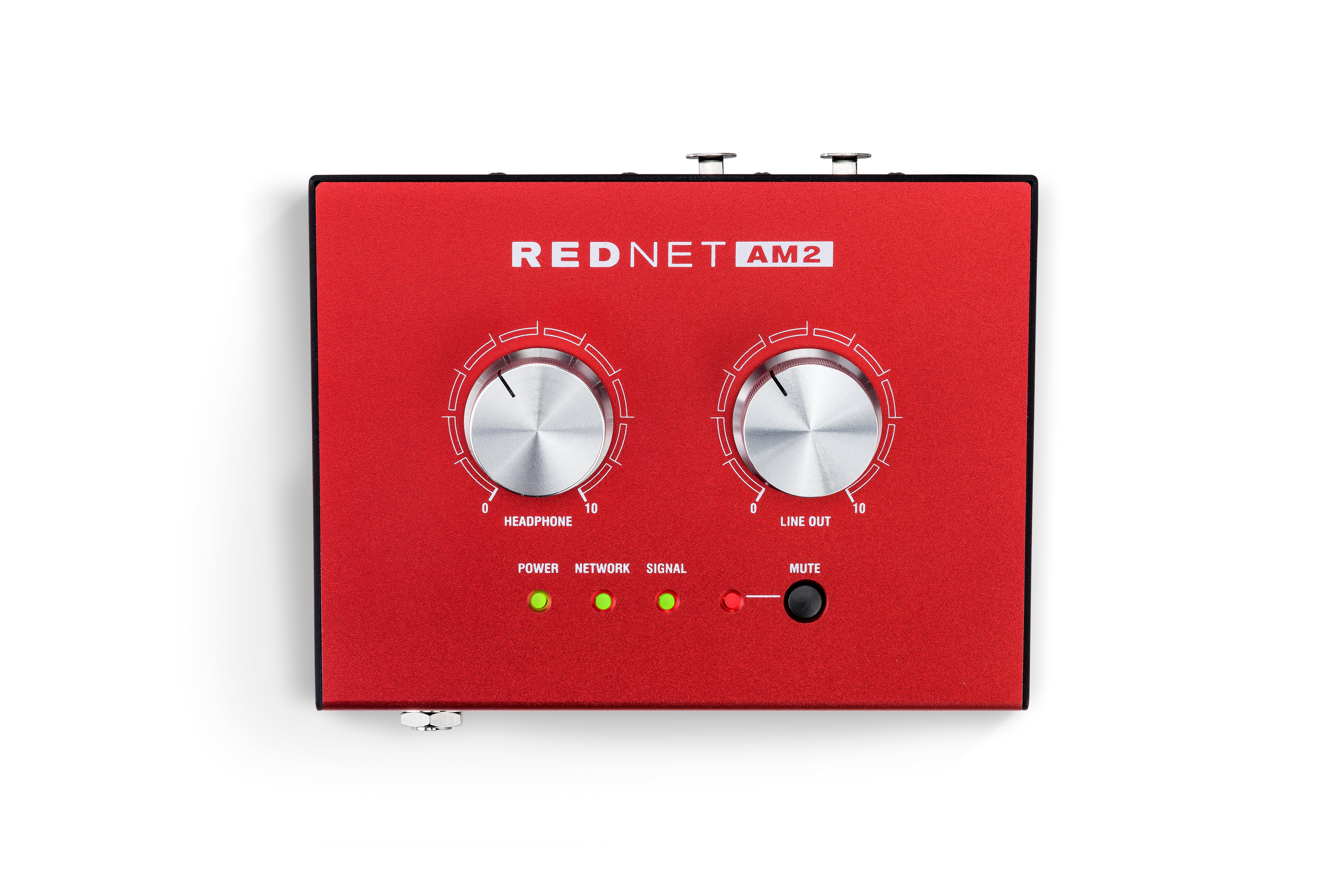

Featuring Power over Ethernet (PoE), a single Cat 5e/6 cable supplies both DC power and uncompressed network audio directly to the unit. Top-panel rotary encoders provide independent control over headphone and line output levels, while mute switches allow instant monitoring control. Integrated mic stand mounting threads on the underside allow the unit to be mounted right on a mic stand.

Key Features

• Dante Network Monitoring: Converts stereo Dante network streams into high-quality analog line and headphone outputs.

• High-Power Headphone Output: Drives high-impedance studio headphones with abundant volume, extended low end, and low distortion.

• Power over Ethernet (PoE): Operates on standard PoE (IEEE 802.3af) or via the included 12V DC power supply.

• Independent Level Controls: Top-panel rotary knobs and dedicated mute switches for line and headphone outputs.

• Pro Conversion Quality: Digital-to-analog converters deliver up to $120\text{ dB}$ of dynamic range at sample rates up to $24\text{-bit / }96\text{ kHz}$.

• Stage-Ready Chassis: Heavy-duty extruded aluminum enclosure with non-slip rubber feet and threaded mic stand mounting point.

Technical Specifications

• Form Factor: Compact Desktop / Mic-Stand Mountable Chassis

• Audio Connectivity: Dante Audio-over-IP (AES67 compatible)

• Dynamic Range: $120\text{ dB}$ A-weighted (Line & Headphone outputs)

• Supported Sample Rates: $44.1\text{ kHz},48\text{ kHz},88.2\text{ kHz},96\text{ kHz}$ ($24\text{-bit}$)

• Headphone Output: 1x 1/4" TRS Stereo Output (Supports $16\text{–}600\Omega$ impedance)

• Line Outputs: 2x XLR Male Balanced Line Outputs (Switchable $+18\text{ dBu}/+24\text{ dBu}$ max output)

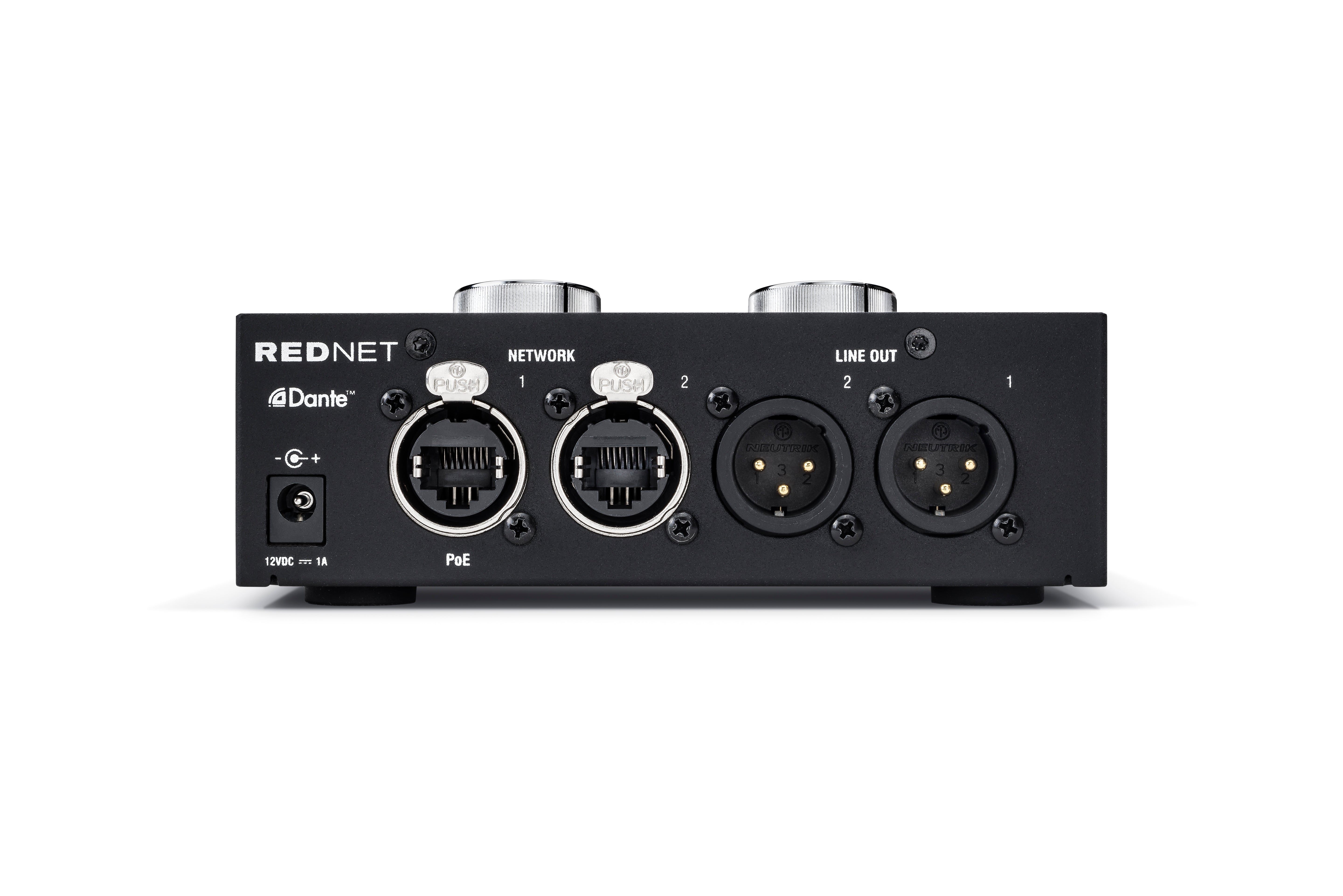

• Network Ports: 2x RJ45 Gigabit Ethernet (EtherCON, with internal network switch)

• Power Supply: Power over Ethernet (IEEE 802.3af Class 0) or external 12V DC power supply
