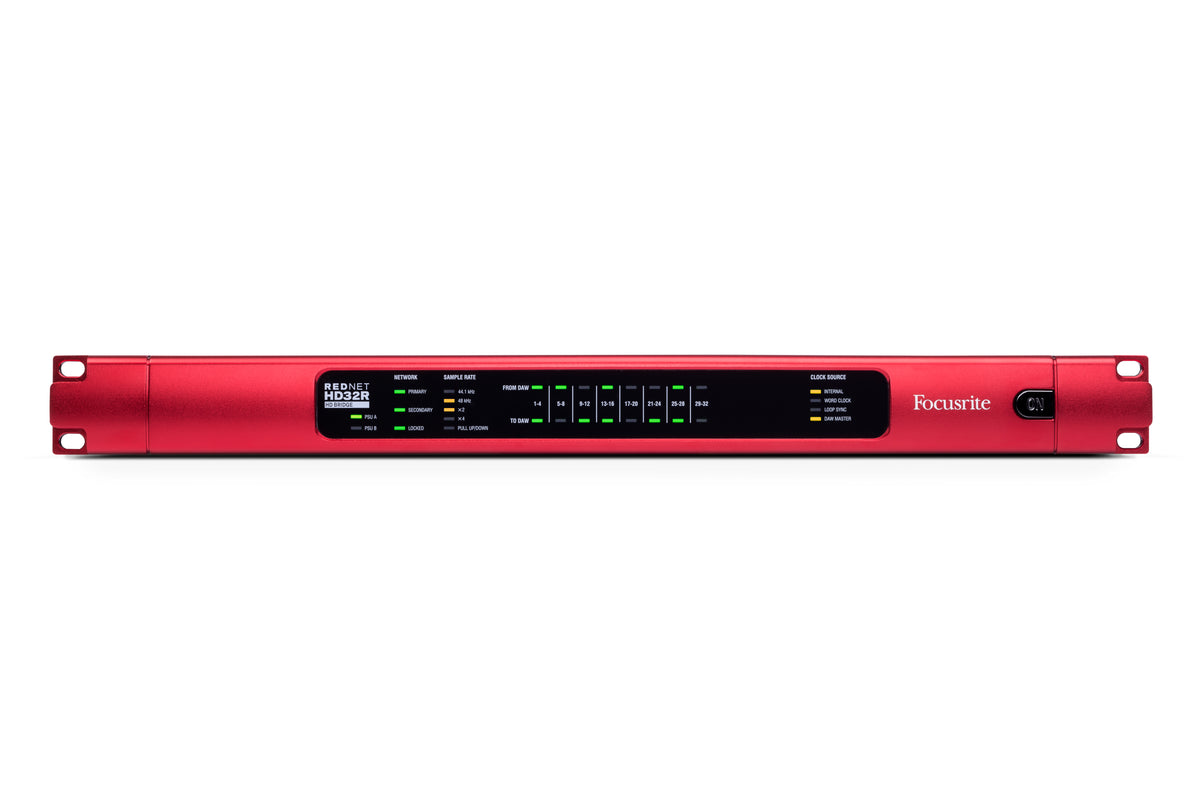

Focusrite RedNet HD32R

The Focusrite RedNet HD32R is a 1U rackmount bridge unit that seamlessly connects Pro Tools HD, HDX, or Native systems directly to a Dante Audio-over-IP network. Acting as a 32x32 channel digital interface, it allows Pro Tools users to access remote Dante-enabled preamps, converters, and digital consoles over Ethernet without requiring additional Avid I/O hardware or complex option cards.

Designed for high-availability environments like broadcast facilities, post-production stages, and live sound trucks, the HD32R features dual internal power supplies with independent IEC inlets and dual etherCON network ports. This hardware redundancy ensures continuous, drop-free audio streaming even in the event of a primary network cable cut or power loss.

Key Features

• 32x32 Pro Tools HD to Dante Bridge: Routes 32 input and 32 output channels simultaneously between Pro Tools HD/HDX systems and Dante IP networks.

• Dual Mini-DigiLink Ports: Connects directly to Pro Tools HDX PCIe cards, HD Native systems, or legacy Pro Tools HD Core hardware.

• Complete Hardware Redundancy: Independent dual PSUs and dual locking etherCON network connectors provide bulletproof fail-safe protection.

• Automatic Delay Compensation: Maintains accurate sample-level timing and latency compensation within Pro Tools software.

• Enterprise & Broadcast Compatibility: Fully compliant with AES67, SMPTE ST 2110, and Dante Domain Manager (DDM) infrastructure.

• Centralized Network Management: Easily route channels and adjust system clocking using Focusrite RedNet Control and Audinate Dante Controller.

Technical Specifications

• Form Factor: 1U Standard 19" Rackmount

• Simultaneous Channel I/O: 32 Inputs / 32 Outputs (at $44.1\text{ to }192\text{ kHz}$)

• Audio Resolution: 24-bit

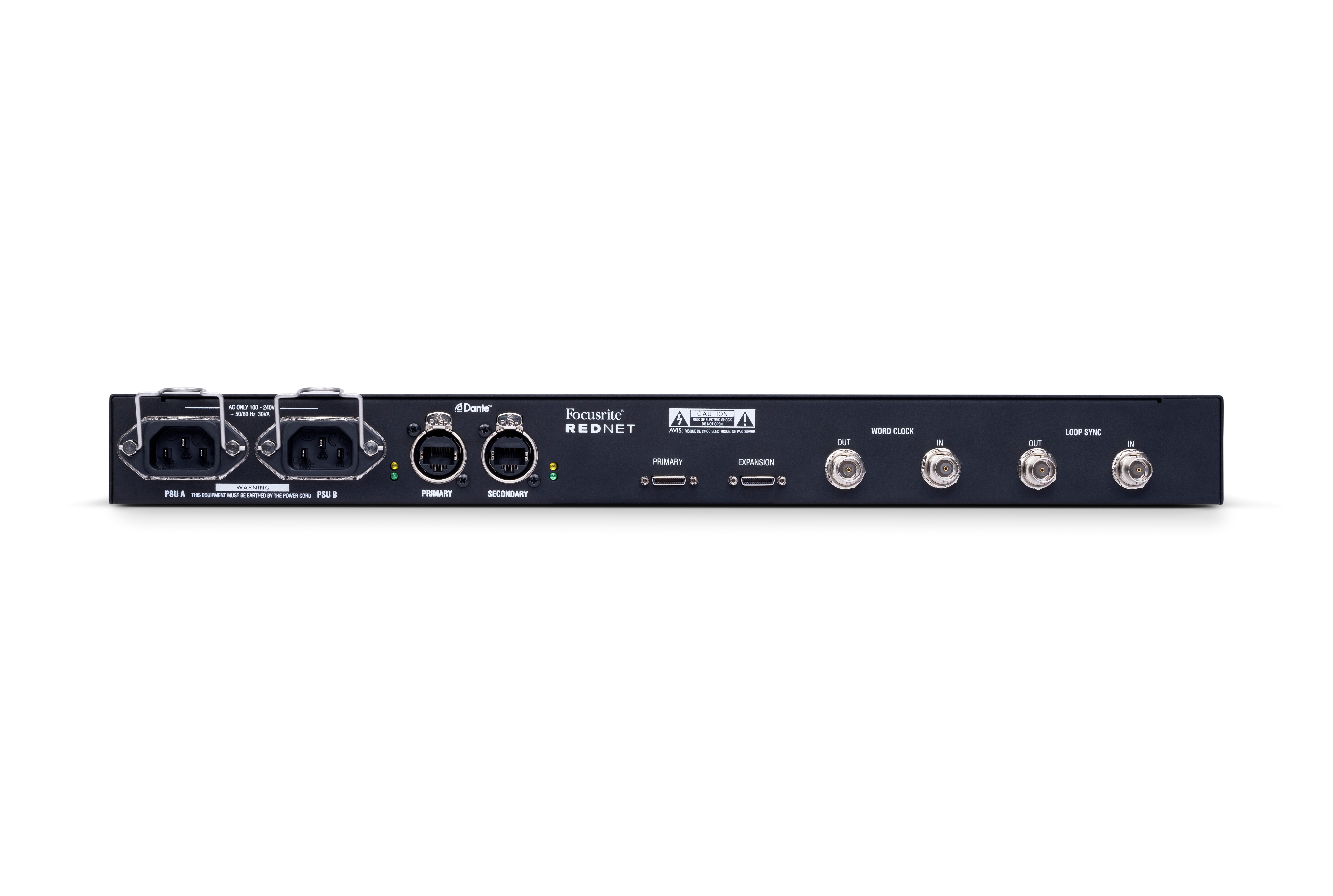

• Host Connections: 2x Primary Mini-DigiLink Ports (Port 1 & Port 2)

• Network Ports: 2x Neutrik etherCON (Redundant or Switched modes)

• Network Compatibility: Dante Audio-over-IP, AES67, SMPTE ST 2110, DDM

• Clocking Connections: BNC Word Clock Input, BNC Word Clock Output, Loop Sync Input, Loop Sync Output

• Power Supply: Dual internal PSUs with 2x IEC AC inlets ($100\text{–}240\text{V}$)
