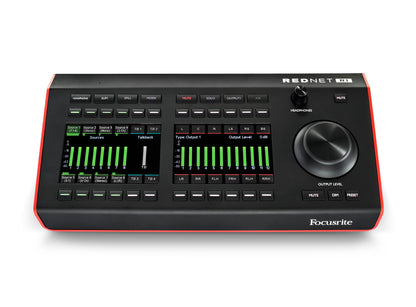

RedNet R1
The Focusrite RedNet R1 is a desktop remote controller designed for commercial mixing facilities, post-production suites, and high-end Dante-networked studios. Capable of controlling up to 28 simultaneous channels, it provides comprehensive monitor section management for setups ranging from mono and stereo up to 7.1.4 immersive Dolby Atmos speaker configurations.
Featuring twin high-resolution LCD screens, the RedNet R1 displays clear visual metering, channel labels, and configuration menus. It integrates a built-in talkback microphone, a dedicated high-power headphone amplifier, and an internal premium preamp for an external talkback mic. With Power over Ethernet (PoE) support, power and control data are handled over a single Cat 5e/6 network cable.
Key Features
Immersive Monitor Control: Supports monitoring from mono and stereo up to 7.1.4 Dolby Atmos and custom multi-channel speaker formats.
28-Channel Monitoring: Route, sum, and solo up to 28 input sources simultaneously across complex Dante networks and Red-series interfaces.

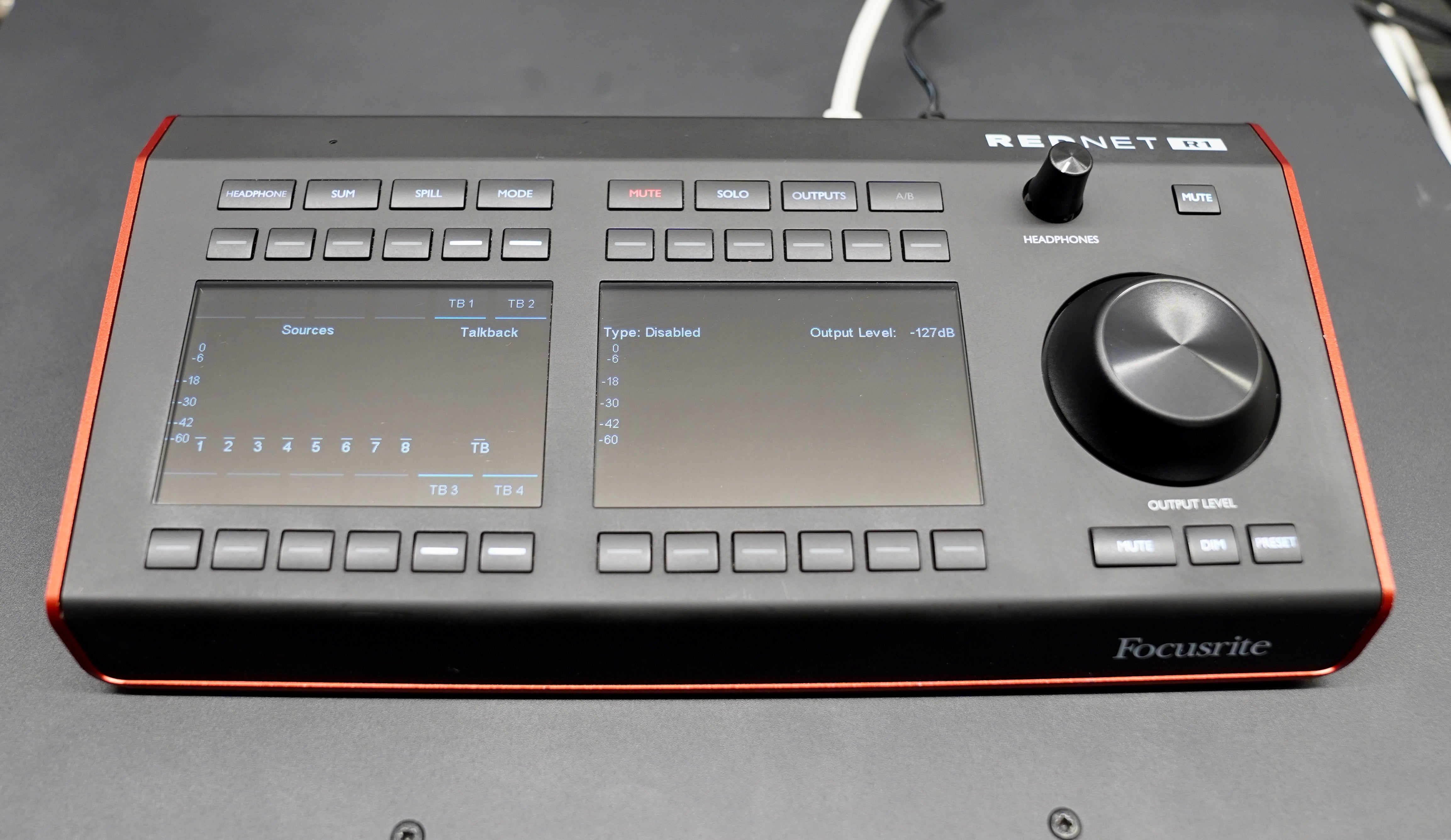

Dual Color LCD Displays: Provide dynamic visual level metering, source selection feedback, parameter displays, and system status menus.
Integrated Talkback System: Built-in condenser talkback microphone plus an XLR input with phantom power for external talkback mics.
Power over Ethernet (PoE): Operates on standard PoE (IEEE 802.3af) or via the included 12V DC external power supply.
Seamless Hardware Control: Native software integration with RedNet Control for quick key assignment, preset management, and routing overrides.
Technical Specifications
Form Factor: Desktop Remote Controller
Audio Connectivity: Dante Audio-over-IP (AES67 compatible)
Monitoring Capability: Up to 28 simultaneous input channels; Mono to 7.1.4 Immersive / Dolby Atmos arrays
Talkback Inputs: Integrated internal condenser mic + 1x XLR rear input (with switchable +48V phantom power)
Analog Outputs: 1x 1/4" TRS Stereo Headphone Output (front panel)

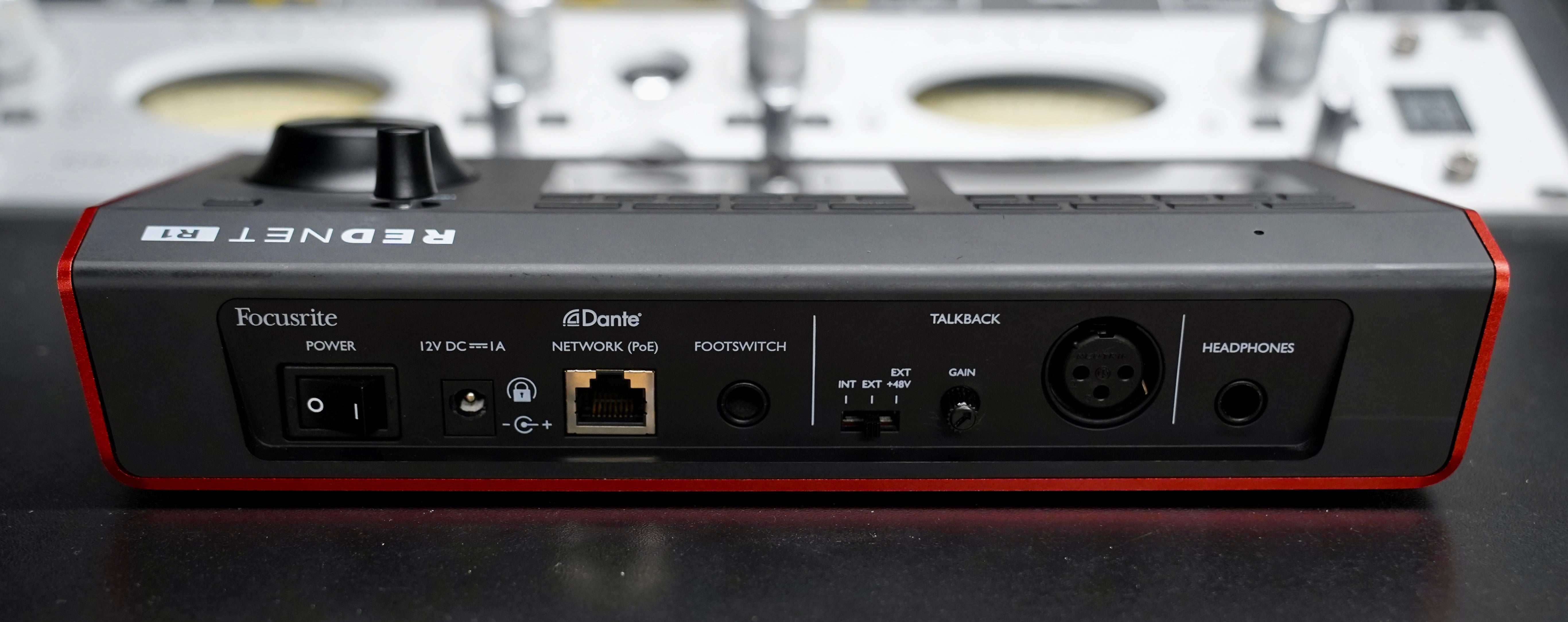

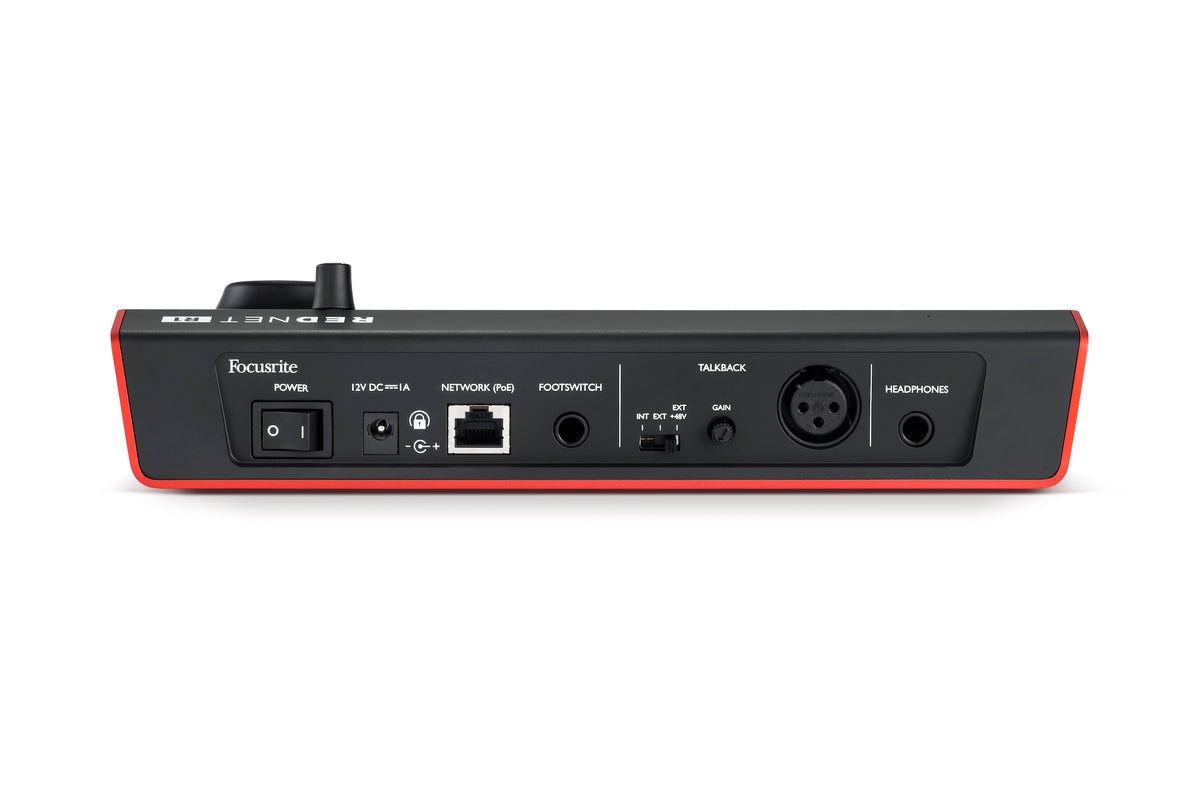

Network & Power Connections: 1x RJ45 Ethernet port (PoE enabled), 1x 12V DC barrel connector, 1x 1/4" Footswitch input

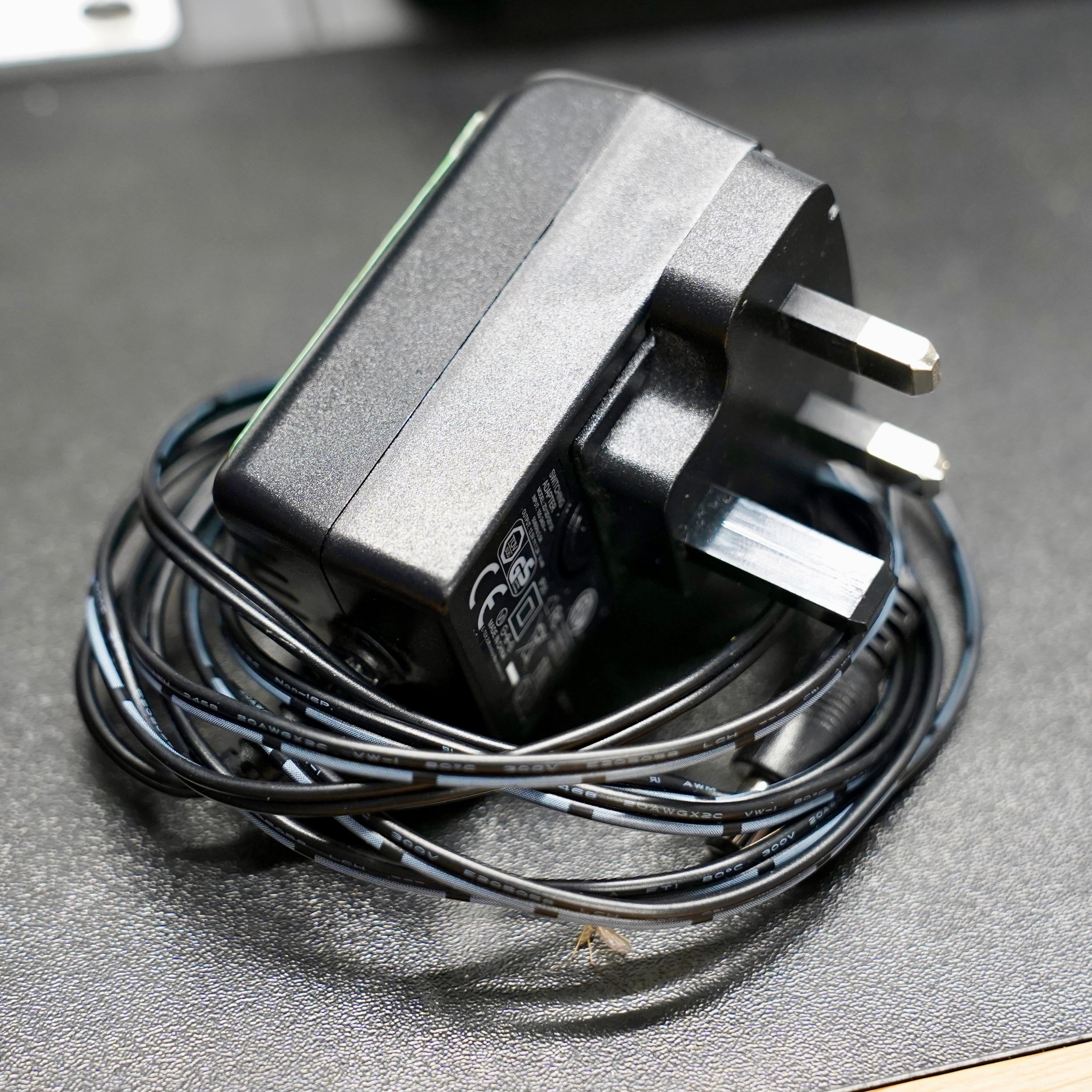

Power Supply: Power over Ethernet (IEEE 802.3af Class 0) or external 12V DC power supply
Chassis: Rugged steel chassis with aluminum rotary encoder and backlit rubber buttons
