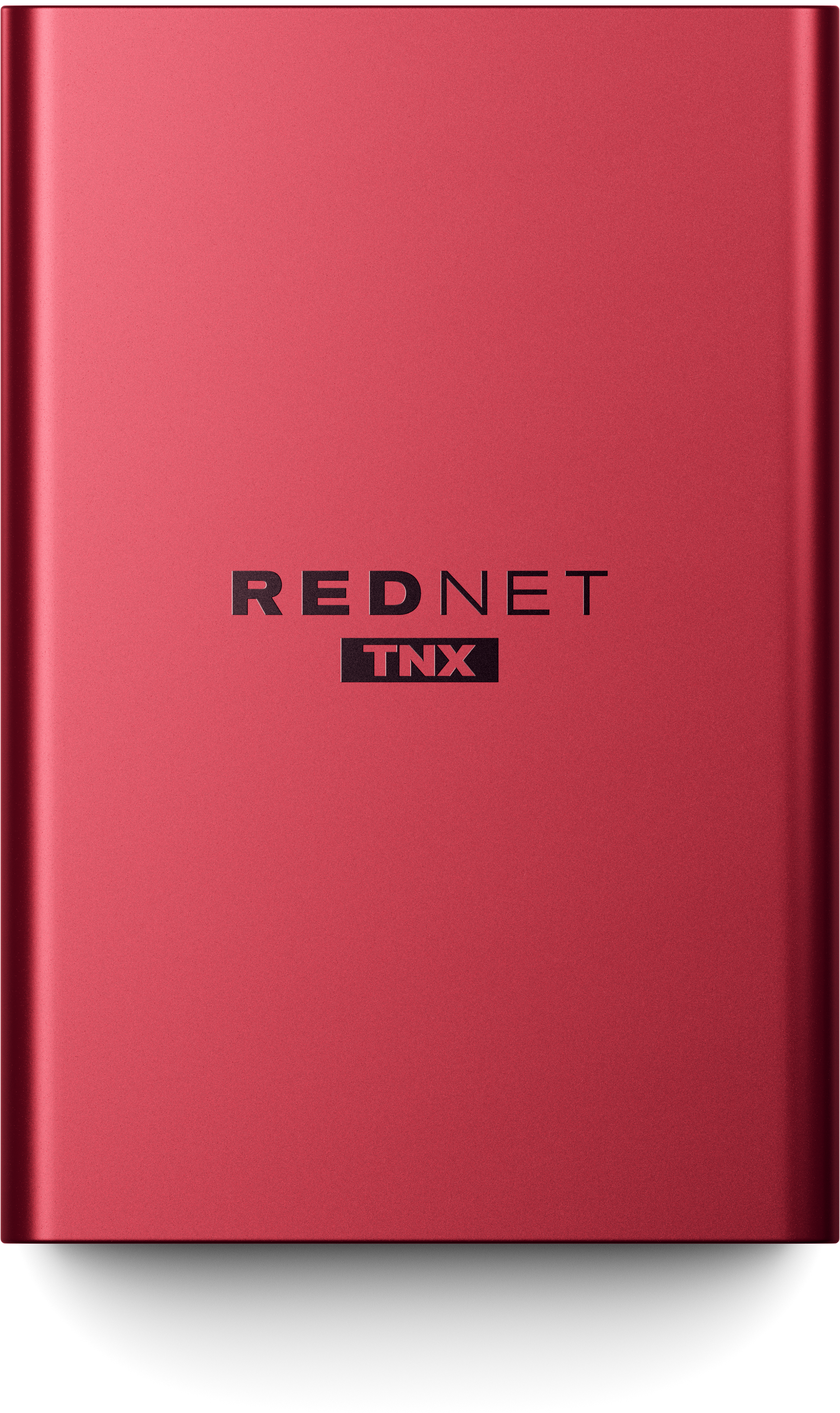

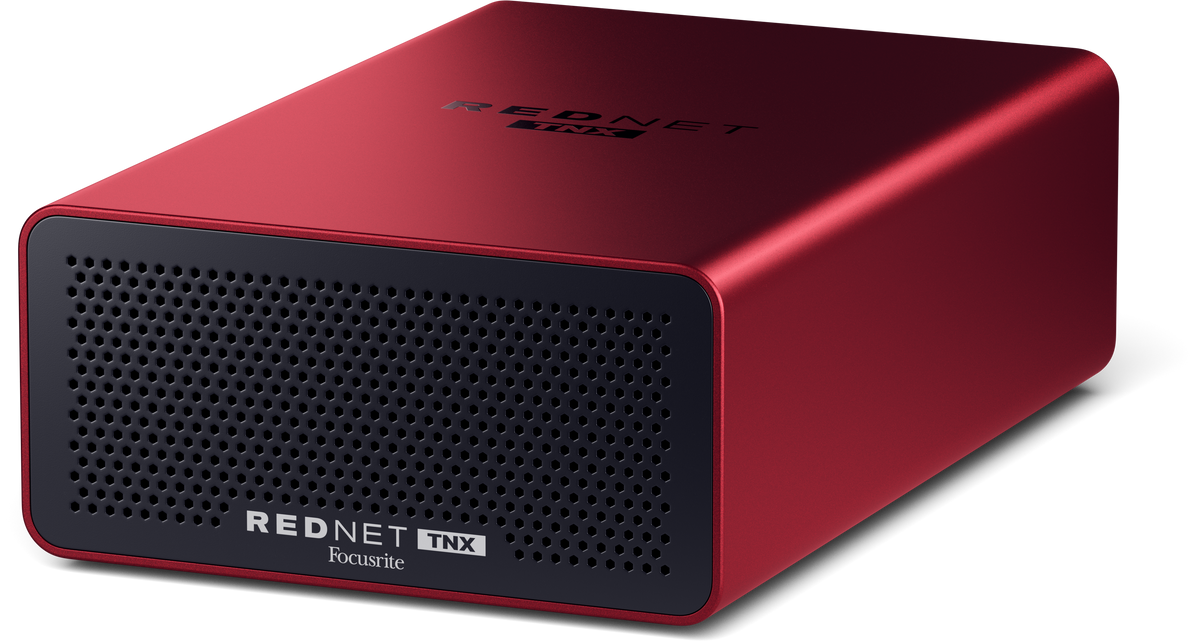

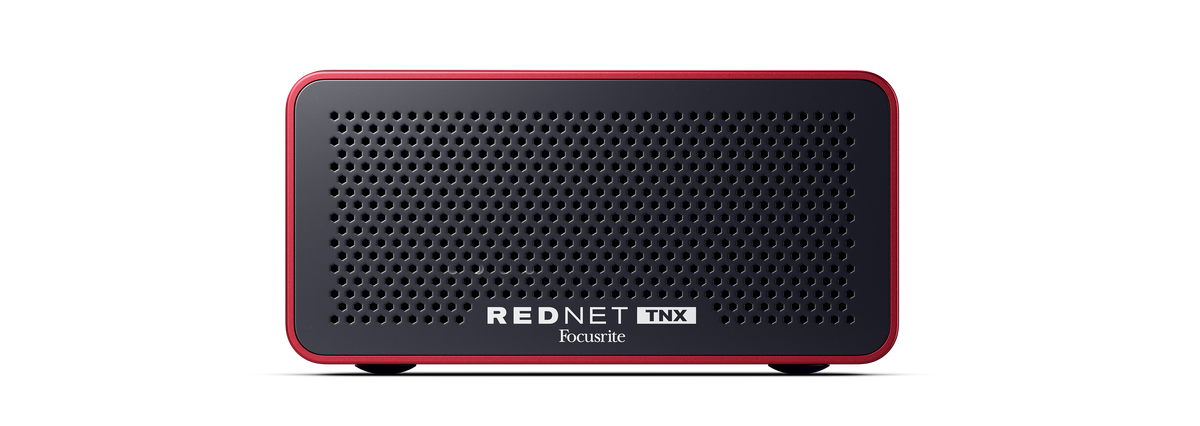

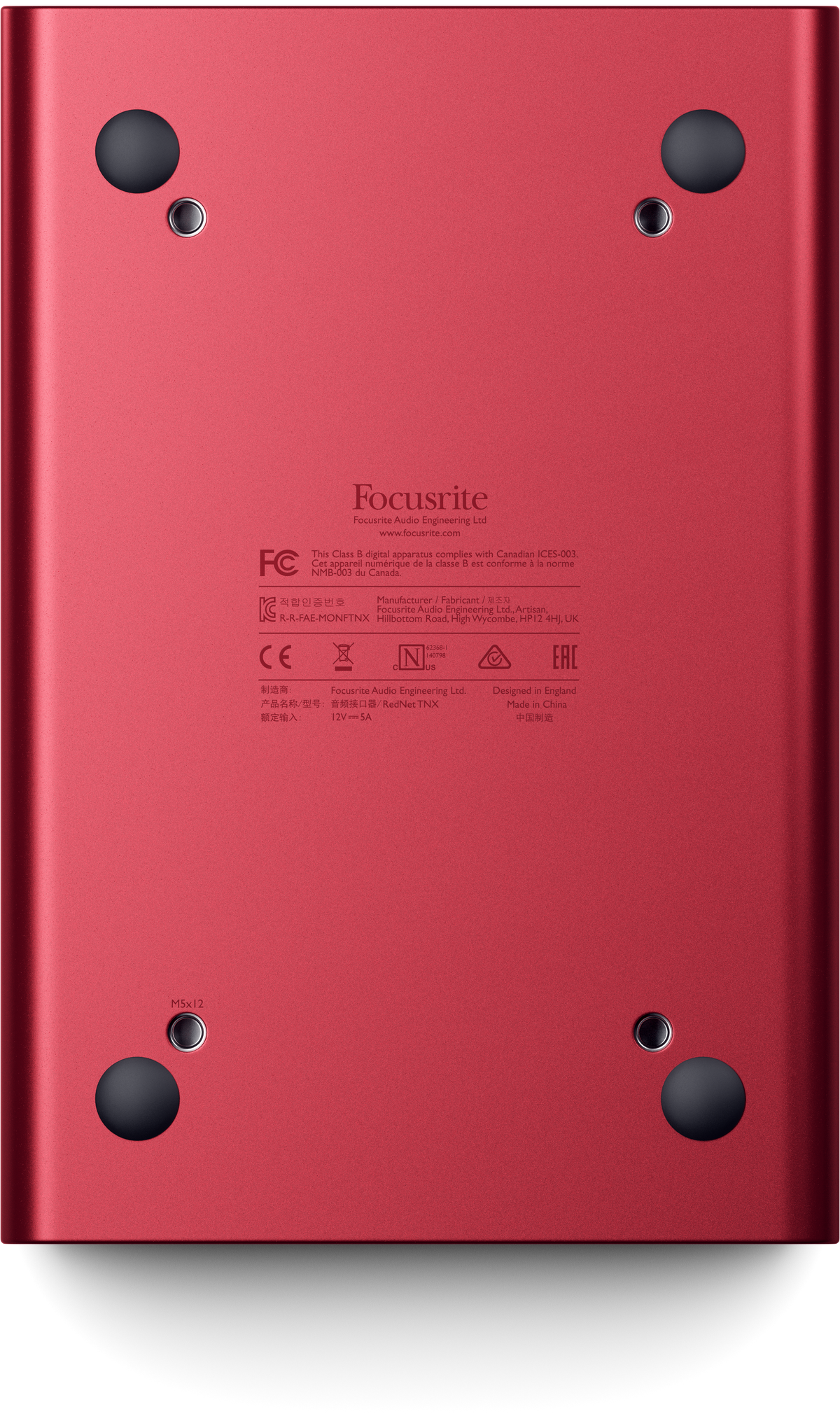

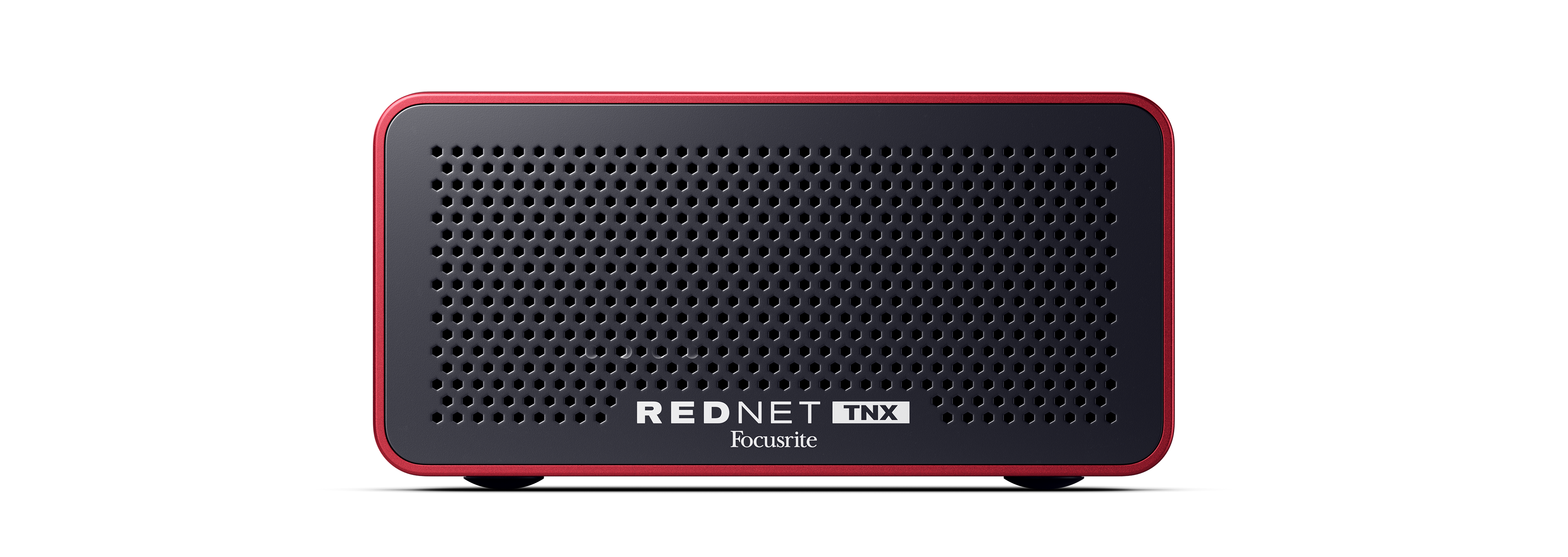

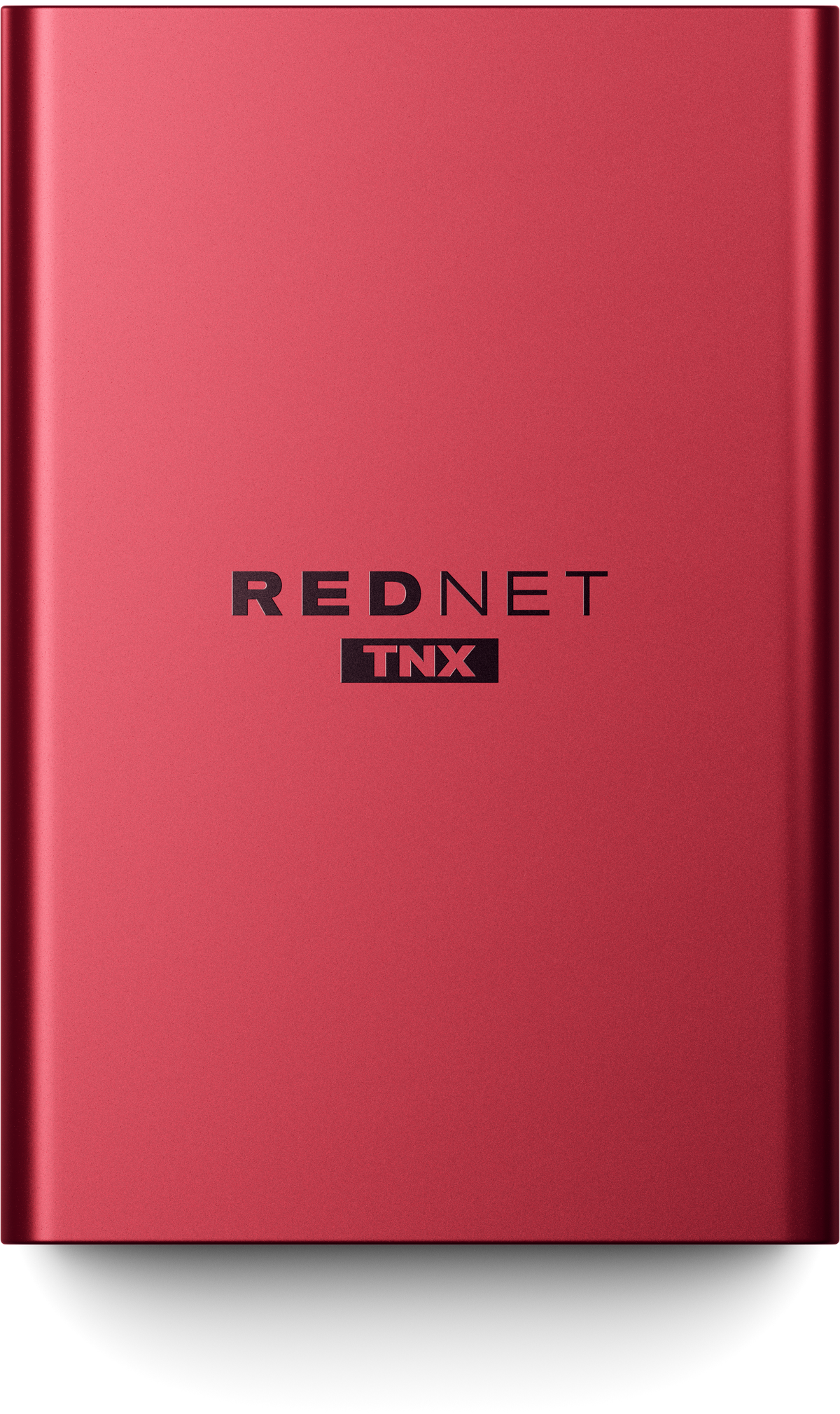

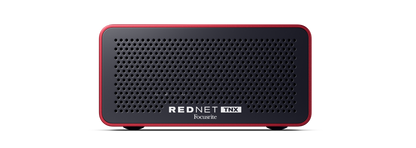

Focusrite RedNet TNX Dante interface
The Focusrite RedNet TNX brings ultra high channel count Dante networking to laptops and desktop rigs in a compact, portable format. Connected via a single Thunderbolt 3 cable, the TNX delivers 128x128 channels at sample rates up to 192 kHz. For massive live or post-production projects, an optional software upgrade unlocks up to 256x256 channels at 24-bit/96kHz.
The TNX features dual Ethernet ports supporting redundant or switched network modes, keeping audio flowing even if a primary cable fails. Full compliance with AES67, SMPTE ST 2110, and Dante Domain Manager (DDM) ensures seamless integration into existing broadcast and network infrastructures, while RedNet Control software delivers central routing and hardware management across the entire network.
Key Features
-
High-Density Audio-over-IP: Streams 128x128 channels at 24-bit/192kHz via a standard Thunderbolt 3 connection on macOS or Windows.
-
Dante Ready™ Expansion: Optionally expandable to 256x256 channels at 24-bit/96kHz via software upgrade.
-
Redundant Network Security: Dual RJ-45 Ethernet ports support redundant network operation or switched network configurations.
-
Broadcast & Immersive Ready: Fully compatible with AES67, Dante Domain Manager, and SMPTE ST 2110 standards for Dolby Atmos and live broadcast workflows.
-

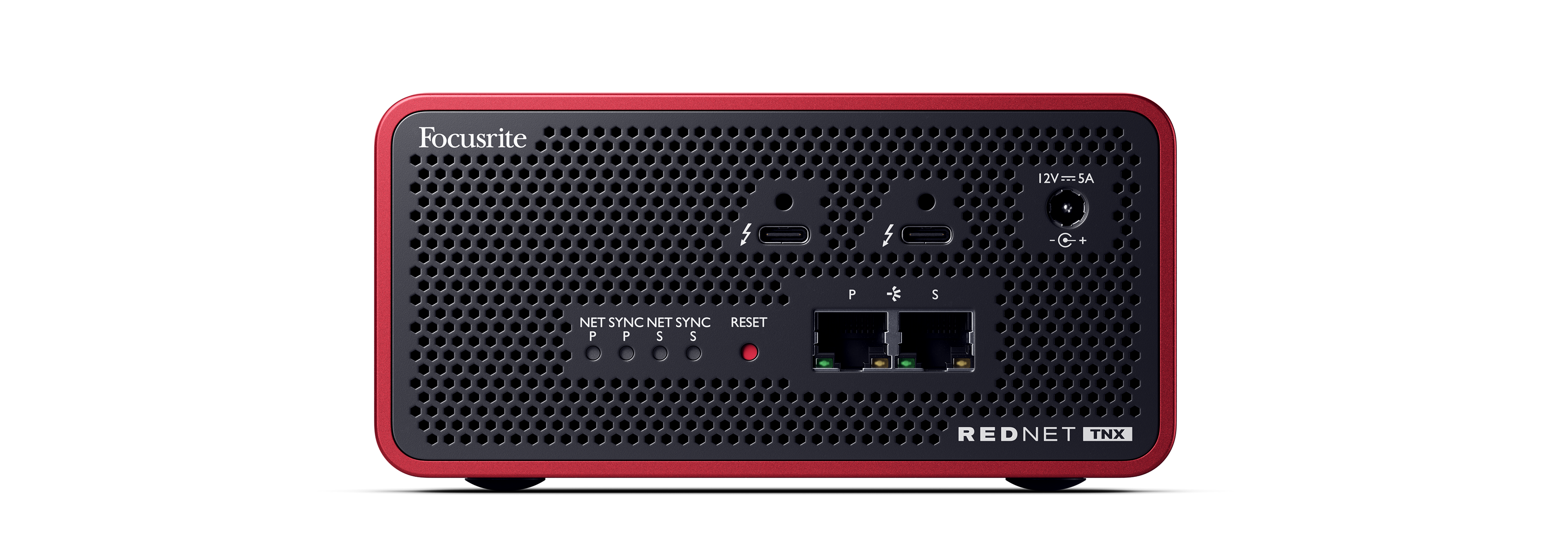

Dual Thunderbolt 3 Ports: Features secondary TB3 port for daisy-chaining downstream storage, displays, or processing hardware.
-
Comprehensive Software Control: Remote hardware management via Focusrite’s RedNet Control and Audinate’s Dante Controller.
Technical Specifications
-
Form Factor: Portable Desktop / Optional Rackmount
-
Computer Connection: Thunderbolt 3 (2x Ports, supports daisy-chaining)
-
Simultaneous Channel I/O: 128 x 128 (Standard up to 192 kHz) / 256 x 256 (Up to 96 kHz via Dante Ready™ upgrade)
-
Audio Resolution: 24-bit / up to 192 kHz
-

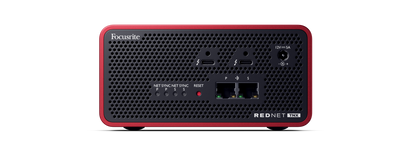

Network Ports: 2x RJ-45 Gigabit Ethernet (Redundant or Switched modes)
-
Network Compatibility: Dante, AES67, SMPTE ST 2110, Dante Domain Manager (DDM)
-
Driver Support: macOS (CoreAudio), Windows (Multi-Client ASIO and WDM)
-
Power Supply: External 12V DC power supply
-
Included Accessories: Thunderbolt 3 cable, Cat6A Ethernet cable, 12V DC power supply
