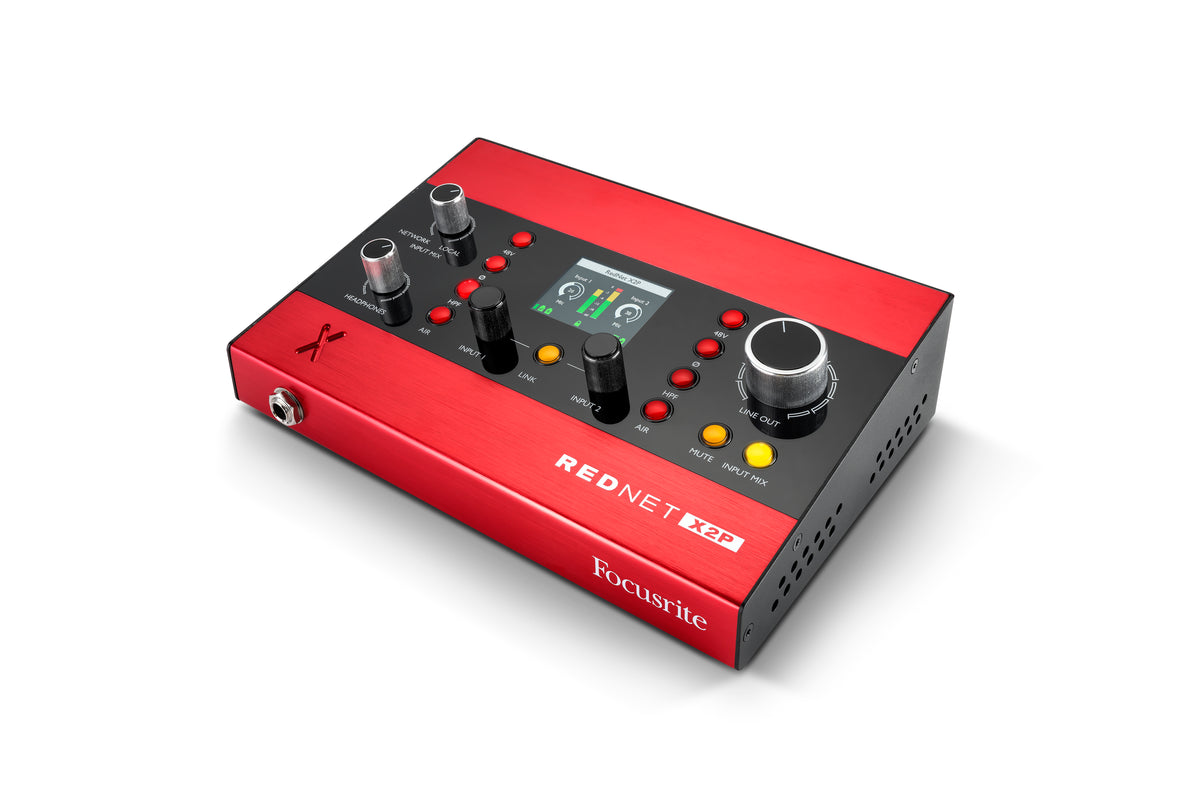

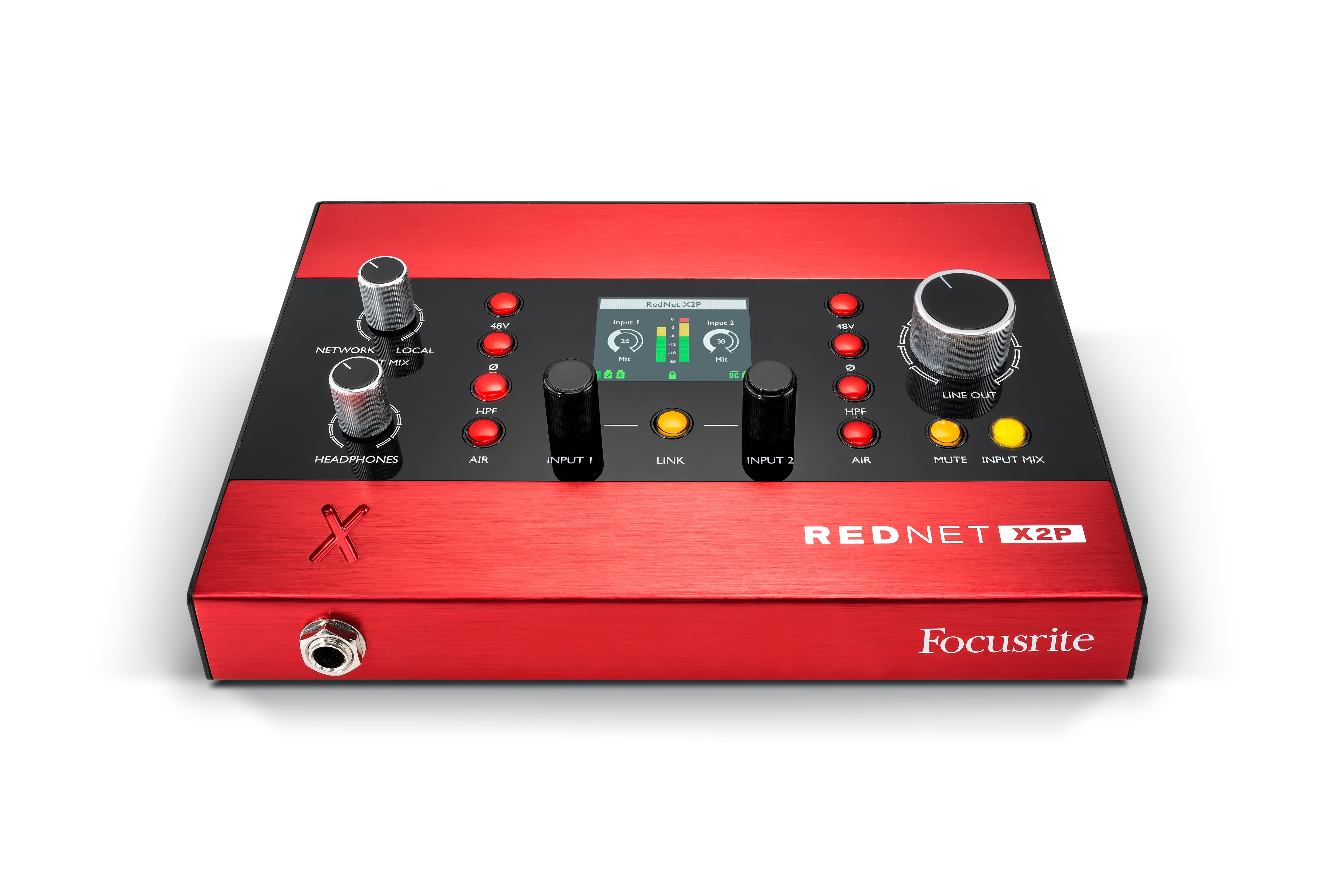

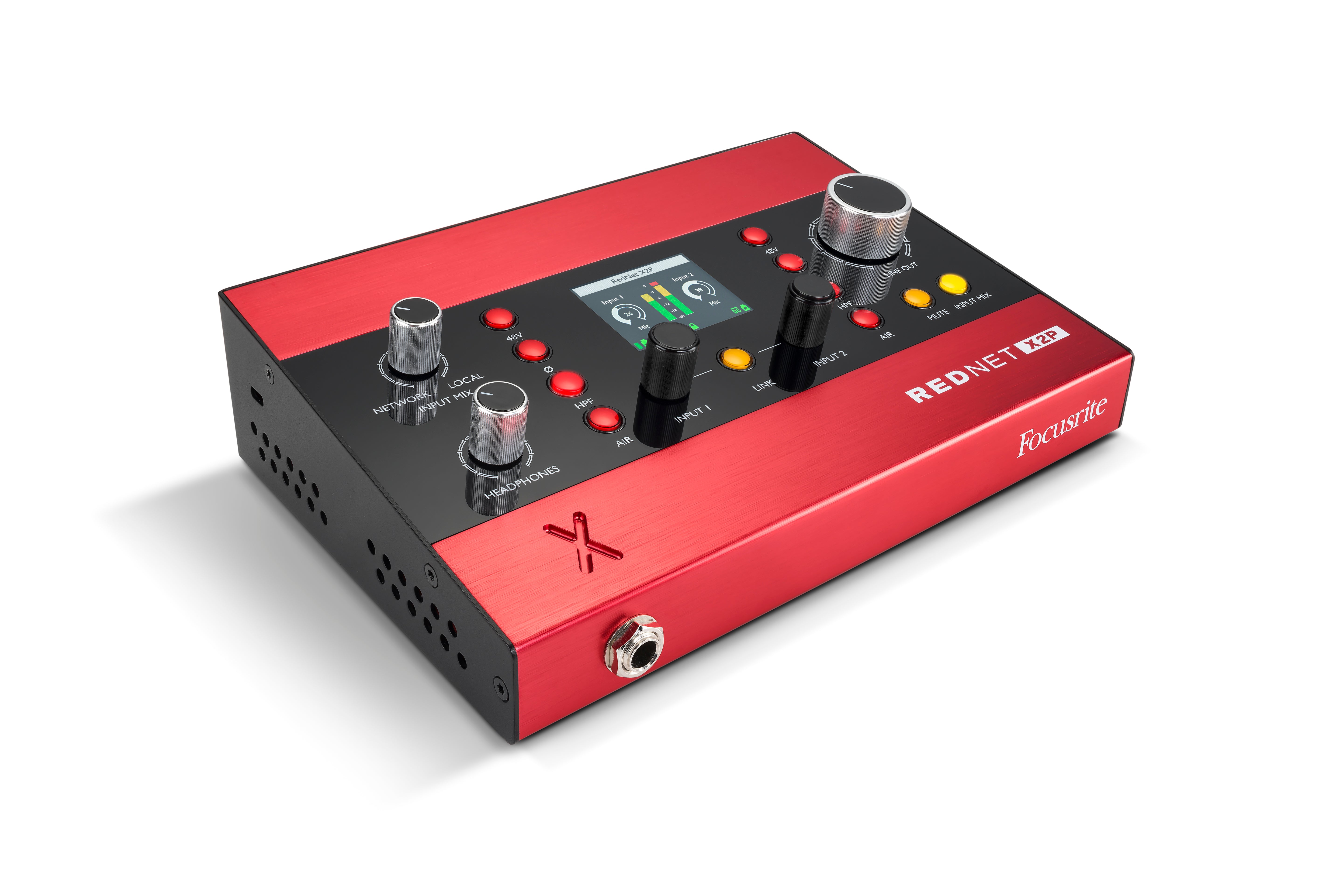

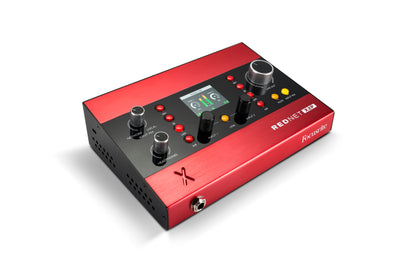

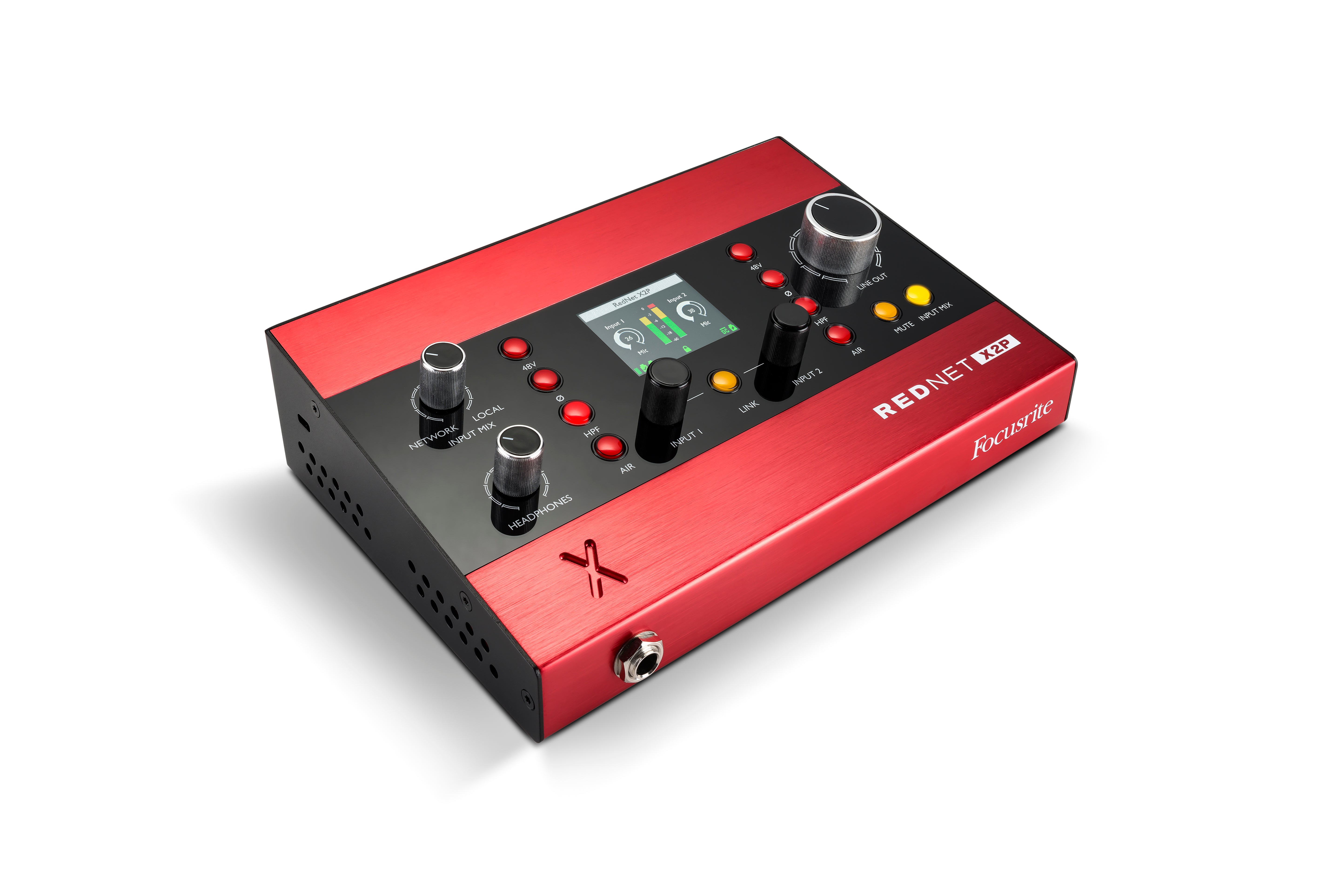

Focusrite RedNet X2P 2x2 interface

The Focusrite RedNet X2P is a compact, high quality 2x2 Dante audio interface designed for networked studio environments. Featuring two digitally controlled Red Evolution mic preamps, stereo line outputs, and a powerful headphone amplifier, it brings pristine conversion and low-latency audio networking straight to your desktop.

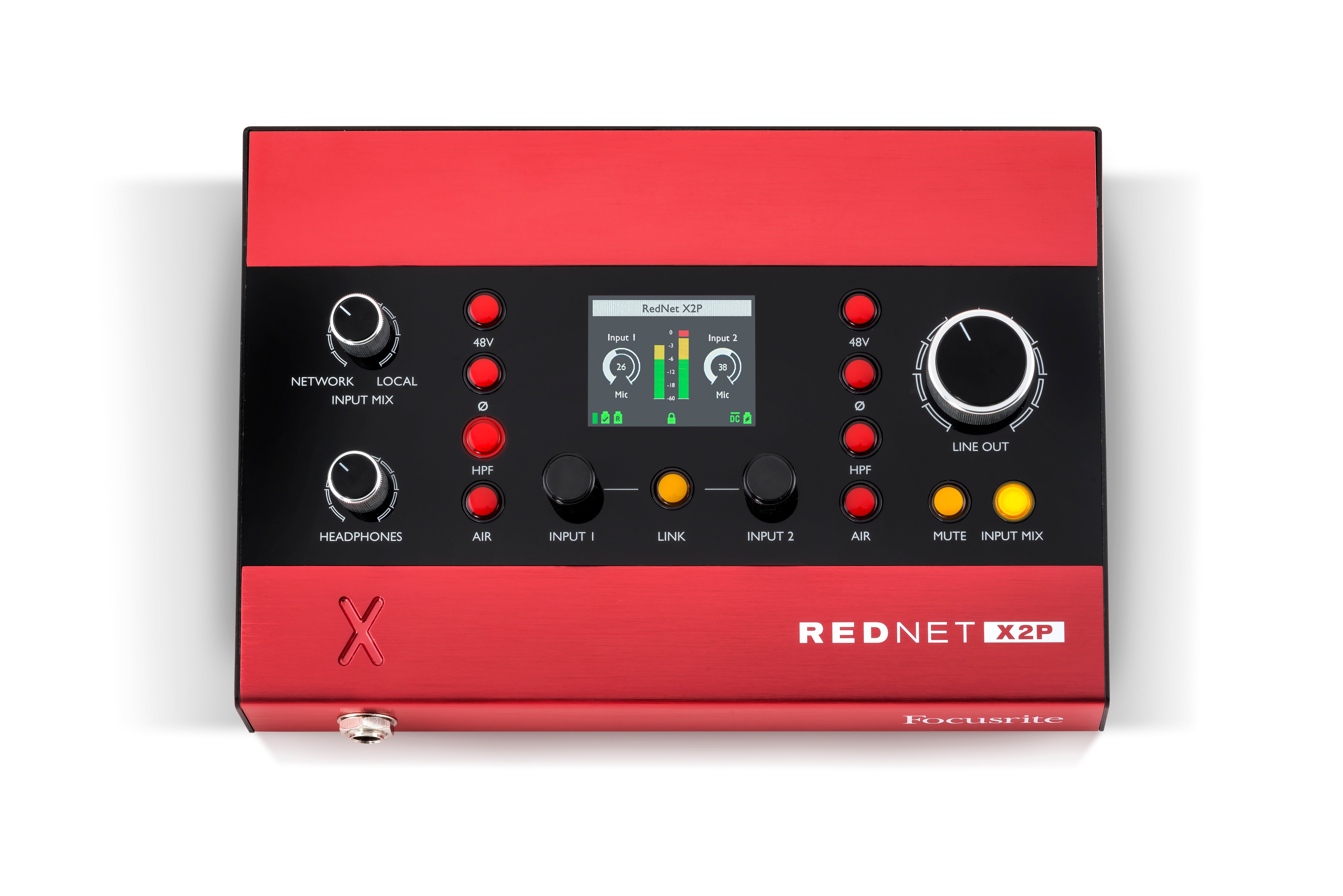

The X2P features an intuitive top panel with dedicated rotary controls for local input monitoring mix and network playback. You can instantly blend local zero-latency inputs with incoming Dante audio feeds for custom headphone mixes, while the control lock function prevents accidental adjustments during live tracking or broadcast sessions.

Key Features

• Dual Red Evolution Preamps: Digitally controlled, ultra-clean mic preamps delivering up to $68\text{ dB}$ of linear gain with switchable phantom power, high-pass filter, and phase reverse.

• Air Mode Emulation: Replicates the classic transformer-based frequency curve and impedance characteristics of the legendary Focusrite ISA 110 console module.

• Power over Ethernet (PoE): Powered natively via PoE (IEEE 802.3af) over a single Ethernet cable, or via the included 12V DC power supply.

• High-Performance Conversion: Conversion stages yield over $118\text{ dB}$ of dynamic range with flat frequency response and microscopic distortion.

• Integrated Headphone & Line Out: High-power stereo headphone output alongside two XLR line-level outputs with independent level and mute controls.

• Dante Network Integration: Seamlessly routes uncompressed digital audio over standard IP networks with RedNet Control software integration.

Technical Specifications

• Form Factor: Portable Desktop / Mic-Stand Mountable Chassis

• Channel Count: 2 Inputs / 2 Outputs

• Audio Networking: Dante Audio-over-IP (AES67 compatible)

• Preamps: 2x Digitally Controlled Red Evolution Preamps with Air Mode

• Maximum Preamp Gain: $+68\text{ dB}$

• Dynamic Range: $118\text{ dB}$ A-weighted (Inputs & Outputs)

• Frequency Response: $20\text{ Hz – }35\text{ kHz}$ ($\pm 0.1\text{ dB}$)

• Analog Inputs: 2x Neutrik Combination XLR / 1/4" TRS (Mic/Line/Inst)

• Analog Outputs: 2x XLR Male Line Outputs, 1x 1/4" TRS Stereo Headphone Output

• Network / Power Connections: 1x RJ45 Ethernet port (PoE enabled), 1x 12V DC Barrel Connector

• Power Supply: Power over Ethernet (IEEE 802.3af Class 0) or external 12V DC PSU
