Furman Merit Z-Series M-10z E 10A Power Conditioner

The Furman Merit Z-Series M-10z E is a next-generation 10A rackmount power conditioner engineered to safeguard equipment from mains spikes, electrical noise, and hazardous voltage fluctuations. Combining Furman’s active Extreme Voltage Shutdown (EVS) technology with linear RFI/EMI noise filtration, the M-10z E delivers clean, stable AC power while introducing modern studio conveniences like front-panel USB-C and USB-A fast charging.

Key Features

• Active EVS Voltage Shutdown: Automatically cuts power to connected gear during dangerous under-voltage ($<180\text{ VAC}$) or over-voltage ($>274\text{ VAC}$) conditions.

• RFI/EMI Noise Attenuation: Delivers over $20\text{ dB}$ of AC line noise filtering ($200\text{ kHz}-10\text{ MHz}$) to eliminate ground hum and hash.

• Front-Panel Fast Charging: Features dedicated USB-C ($5\text{V}/3\text{A}$) and USB-A ($5\text{V}/2.4\text{A}$) power ports for control tablets, mobile devices, and wireless receivers.

• High Peak Impulse Current Rating: Rated for up to $6,500\text{ A}$ peak surge impulse protection with $230\text{ Joules}$ of energy dissipation.

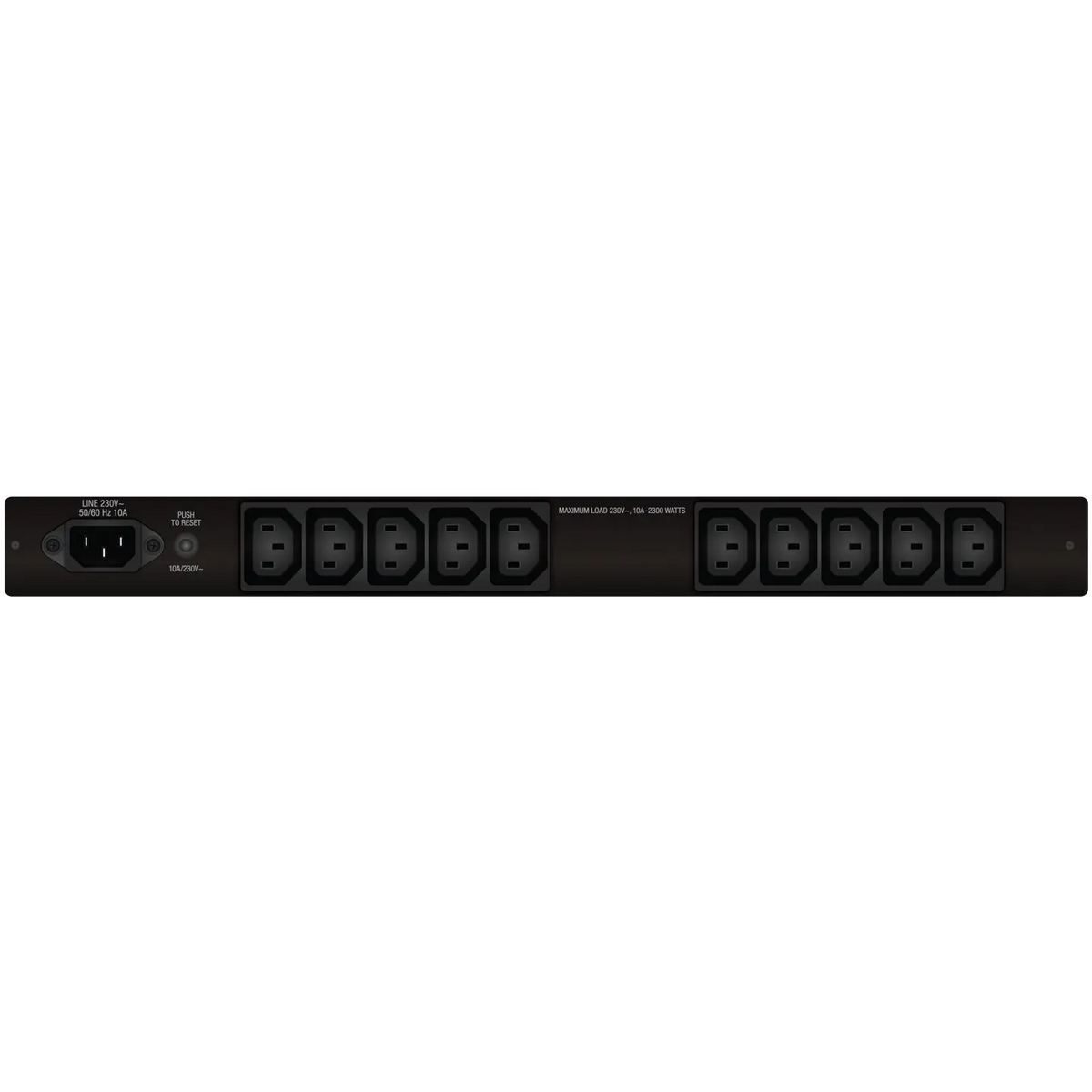

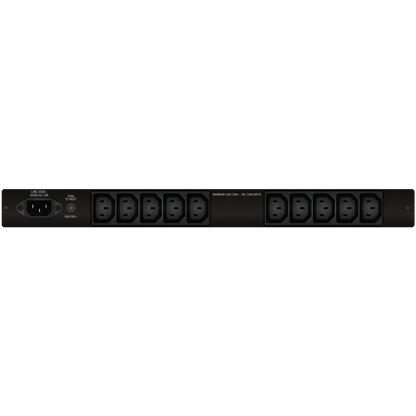

• Wall-Wart Spaced Outlets: Rear-panel IEC outlets are intentionally spaced to accommodate bulky external power transformers without blocking adjacent sockets.

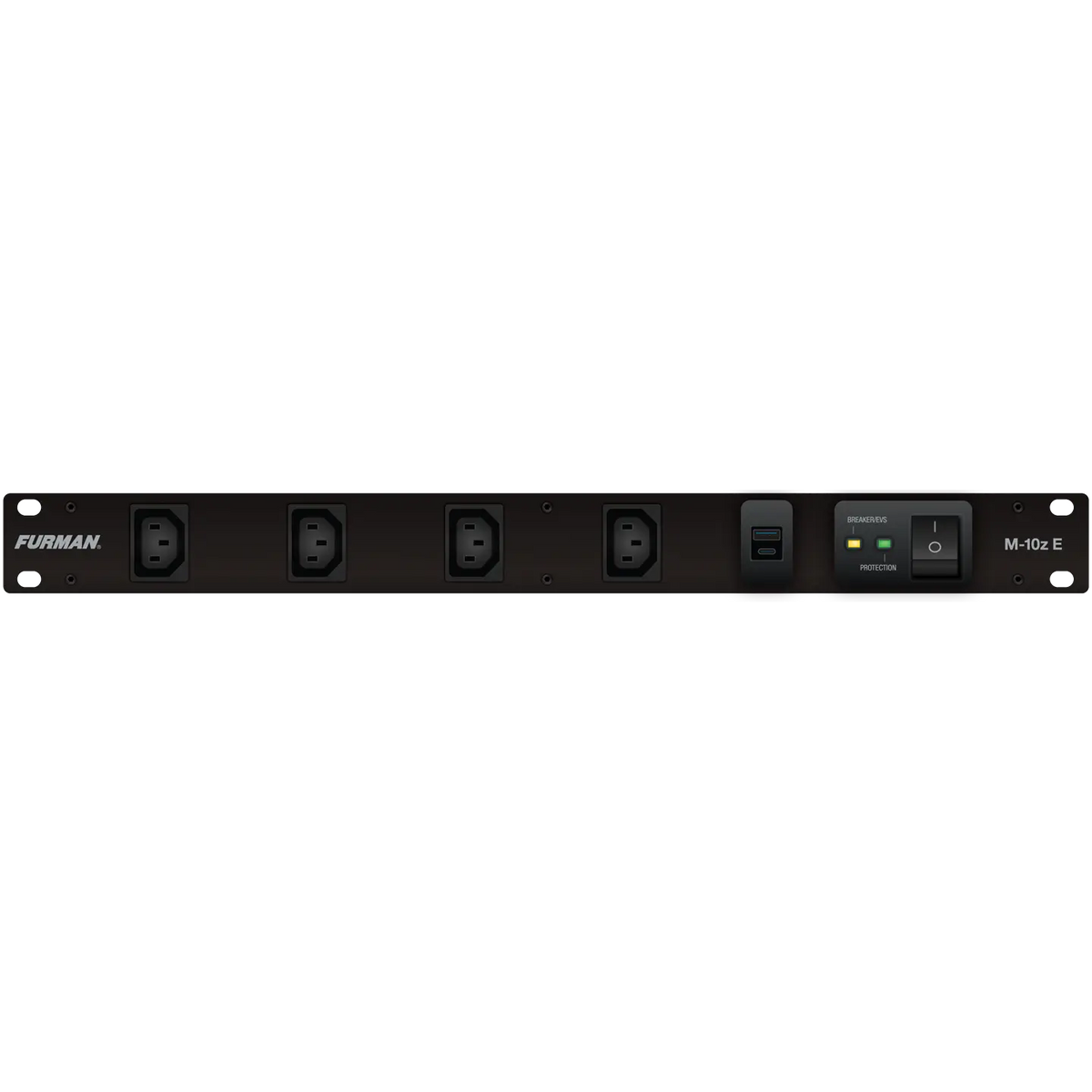

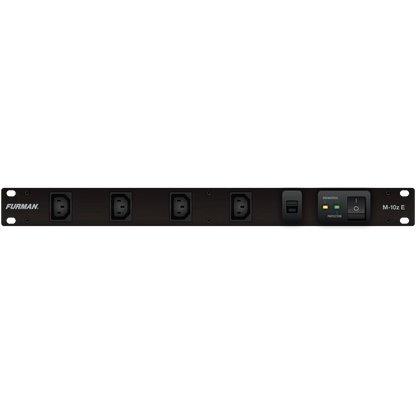

• Front-Panel LED Diagnostics: Instant status LEDs for Protection OK, EVS Activation, and Circuit Breaker reset.

• Rugged 1U Steel Enclosure: Compact $19"\text{ 1U}$ rackmount chassis designed for touring racks and studio installations.

Technical Specifications

• Form Factor: 1U 19-Inch Rackmount (Steel Chassis)

• Operating Voltage: $230\text{V AC}\sim 50/60\text{ Hz}$

• Maximum Current Rating: $10\text{ Amps}$

• EVS Shutdown Thresholds:

  • Under-Voltage: $180\text{ VAC}\pm 5\%$

  • Over-Voltage: $274\text{ VAC}\pm 5\%$

• Surge & Spike Protection:

  • Energy Dissipation: $230\text{ Joules}$

  • Peak Impulse Current: $6,500\text{ Amps}$

  • Let-Through Voltage: $920\text{ Volts}$

• Noise Attenuation: $>20\text{ dB}$, $200\text{ kHz}-10\text{ MHz}$

• Front-Panel USB Charging:

  • 1x USB-C Port ($5\text{V}/3\text{A}$)

  • 1x USB-A Port ($5\text{V}/2.4\text{A}$)

• Dimensions: $4.4\text{ cm}\times 48.3\text{ cm}\times 19.1\text{ cm}$ ($1.75"\text{H}\times 19"\text{W}\times 7.5"\text{D}$)

• Weight: $2.9\text{ kg}$ ($6.5\text{ lbs}$)
