RedNet A16R MkII

The Focusrite RedNet A16R MkII is a 1U rack mount Dante interface delivering 16 channels of high performance analog line level inputs and outputs. Designed for critical live sound, broadcast, and commercial recording facilities, it provides seamless 24-bit/192kHz conversion along with dual PSU and Ethernet redundancy to ensure bulletproof network audio reliability. The MkII revision adds individual input and output level controls per channel, allowing precise level matching and calibration for all 16 analog channels directly via RedNet Control software.

Built to handle demanding environments, the A16R MkII features dual power supplies with independent IEC inlets and dual etherCON network ports supporting redundant network modes. Full compliance with AES67, SMPTE ST 2110, and Dante Domain Manager (DDM) allows easy deployment across enterprise networks and multi-room facilities.

Key Features

• 16x16 Analog Line I/O: High-density DB-25 connectivity delivering 16 balanced inputs and 16 balanced outputs in a single 1U frame.

• Software Level Calibration: Individual input and output gain control per channel via RedNet Control for exact alignment with external hardware.

• Dual Power & Network Redundancy: Independent dual PSUs and dual etherCON network ports safeguard against power supply or cable failure.

• Premium 24-bit/192kHz Conversion: Delivers up to $119\text{ dB}$ of dynamic range on inputs and outputs with flat frequency response and microscopic distortion.

• Broadcast & Network Ready: Native support for AES67, SMPTE ST 2110, and Dante Domain Manager (DDM) integration.

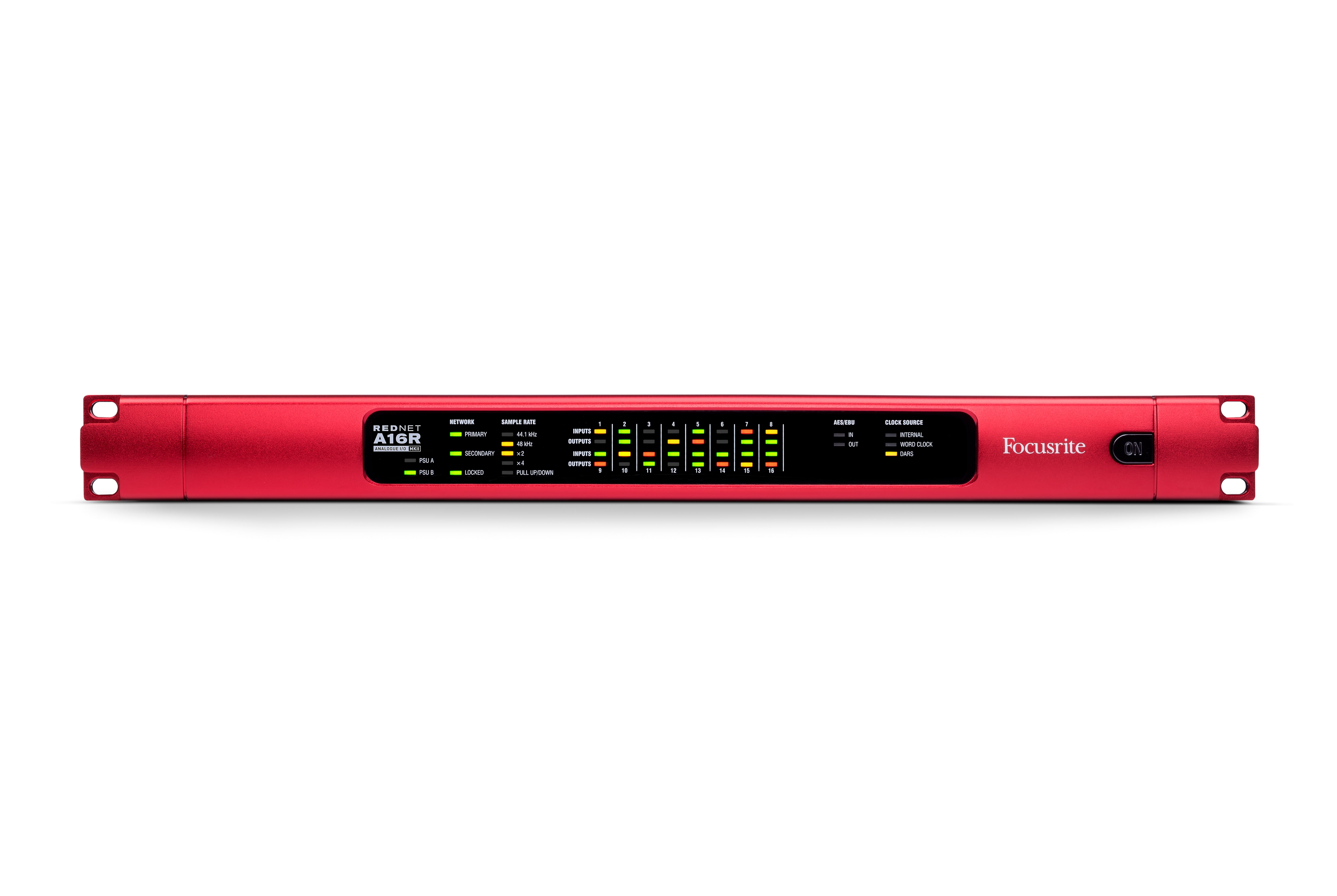

• Front-Panel LED Status: Individual visual signal and clip indicators for all 16 channels alongside network and power status LEDs.

Technical Specifications

• Form Factor: 1U Standard 19" Rackmount

• Channel Count: 16 Line Inputs / 16 Line Outputs

• Audio Resolution: Up to $24\text{-bit / }192\text{ kHz}$

• Audio Networking: Dante Audio-over-IP (AES67 and SMPTE ST 2110 compliant)

• Dynamic Range: $119\text{ dB}$ A-weighted (Inputs & Outputs)

• Frequency Response: $20\text{ Hz – }20\text{ kHz}$ ($\pm 0.15\text{ dB}$)

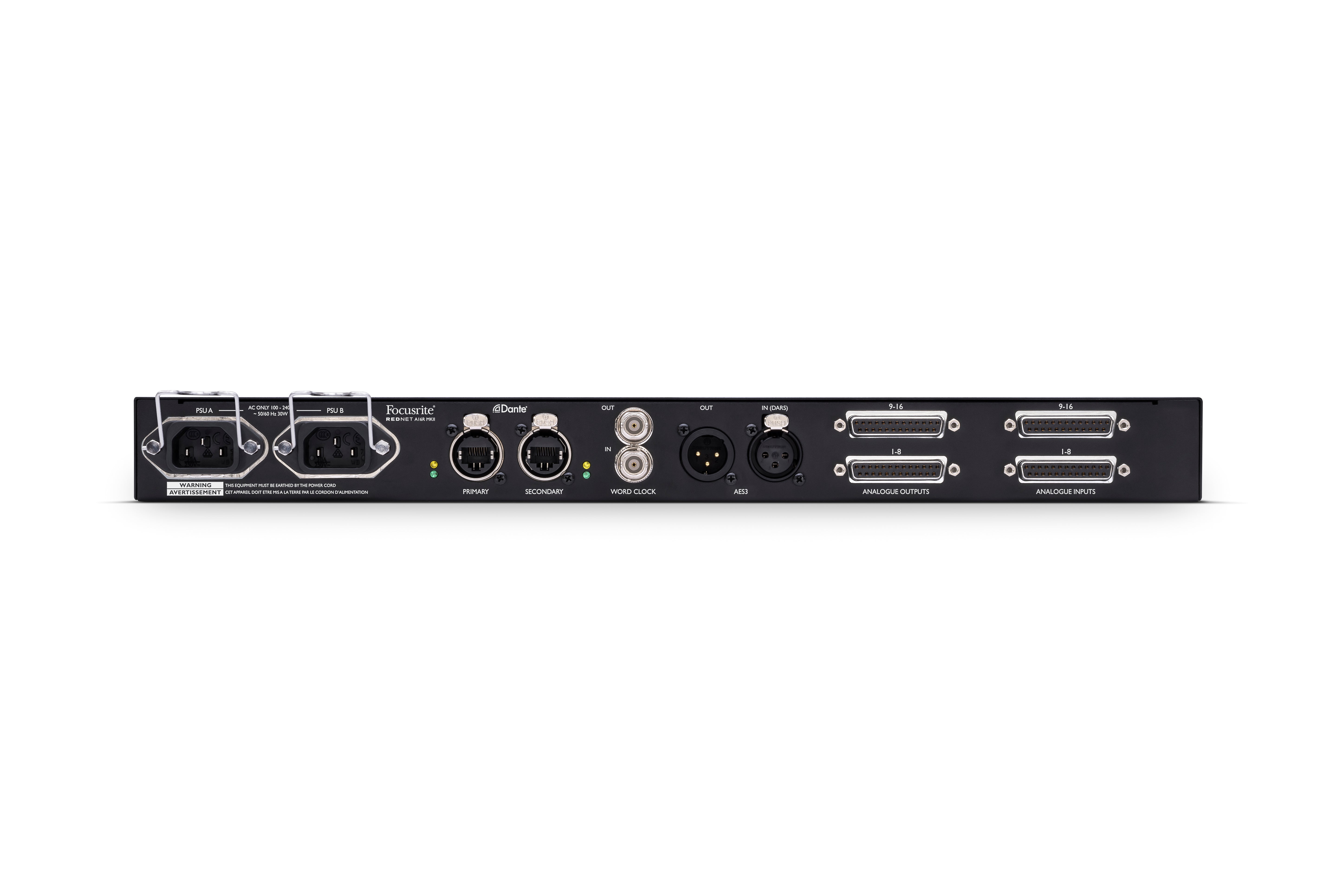

• Analog Line I/O: 2x DB-25 (Inputs 1–8 / 9–16), 2x DB-25 (Outputs 1–8 / 9–16)

• Digital Clock I/O: BNC Word Clock Input, BNC Word Clock Output

• Network Ports: 2x Neutrik etherCON (Redundant or Switched modes)

• Power Supply: Dual internal PSUs with 2x IEC AC inlets ($100\text{–}240\text{V}$)
