Tegeler Schwerkraftmaschine

Schwerkraftmaschine incorporates the sum of all Tegeler's expertise, combined with the feedback they received on the VTC. The result is a Vari-Mu compressor without equal.

In the Schwerkraftmaschine, the signal passes through a total of three transformers and four triode tubes per channel. Why does this matter? Tubes, and especially triodes, add harmonic overtones to the signal that the human ear finds pleasing, while improving our perception of individual sounds. The individual instruments are given additional presence through the tubes. Through the conversion of electricity into magnetic fields and back to electricity, the transformers and their non-linearities increase the density of the sound before it is compressed. The bass becomes cleaner and more defined. The high frequencies are pleasantly rounded.

Whether it is about softly compressing the sound, a more harder effect, or responding to complex situations - there is a mode for everything.

Generating a digital control signal offers flexibility that simply cannot be found in analogue equipment. This makes it possible to emulate the behaviour of any existing compressor.

When you need the Schwerkraftmaschine to work like an Optical Compressor, including the memory effect? But with the Attack and Release still being adjustable? Or you need it soft like a Vari-Mu? Or preferably just like a VCA? Tasks like this are child's play for the Schwerkraftmaschine. Tegeler created completely unique programs that have previously never existed in any compressor, which generates the control signal based on complex rules.

Modes:

• Multi-Band Complex

• Diode Pressor

• Breakthrough

• Stereo Transformer
• Vari Tube Compressor
• Vocal Leveler
• Optical Compressor

• Drum Smasher

• Classical VariMu

• Chart Analysis
• DeEsser


The side-chain filter determines which frequency range the compressor responds to. Prevent pumping using the low-cut filter. Add weight to the high or low frequencies using the pitch filter/tilt EQ. The sidechain filter works separately to the built-in compression mode filters.

Every control is fitted with a servomotor which can set the pots into any position.

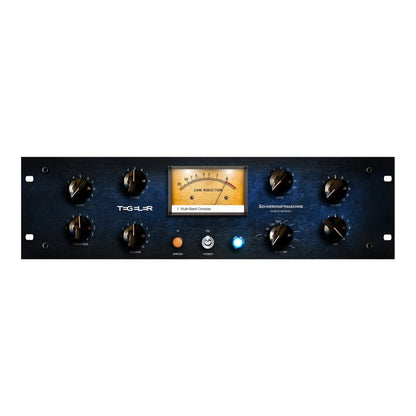

You can make adjustments whenever you want - a slip clutch combined with software always gives your direct control the priority. The Schwerkraftmaschine can be completely controlled from the front panel, where it behaves like any other piece of hardware.

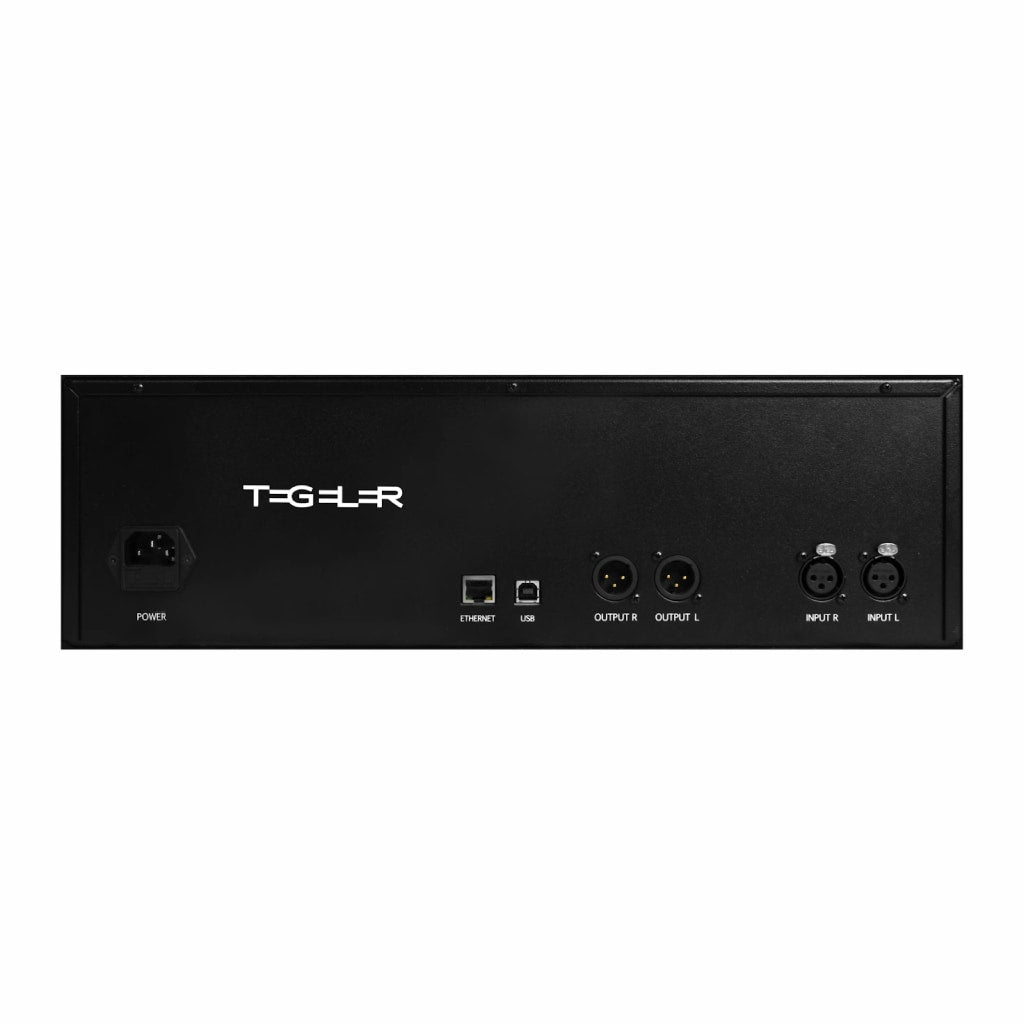

Connect the Schwerkraftmaschine to your network. It acquires the settings it needs automatically via DCHP. You can control the Schwerkraftmaschine from anywhere in the world.

Download the plug-in to your favourite DAW and control the Schwerkraftmaschine via the plug-in. The motorised pots follows every movement. Or directly on the device itself. Both settings are synchronised. When you save your song with the plug-in, the settings are automatically saved in the Schwerkraftmaschine, too. When you reload the song, all your settings are back. All the controls are exactly as they were before.

The plugin allows the Schwerkraftmaschine to be split into two separate mono channels.

Both channels then operate independently of each other. This means that two separate tracks can be processed individualy. All controls can be set separately for the left and right channel. The only thing they have in common is that channels always use the same mode. And the stereo transformer mode is not useful in dual mono mode. Together with an LR/MS and MS/LR matrix, the Schwerkraftmaschine is also ideal for M/S compression. As the physical front panel cannot be duplicated, this mode cannot be controlled directly on the device, but only via a plugin.
