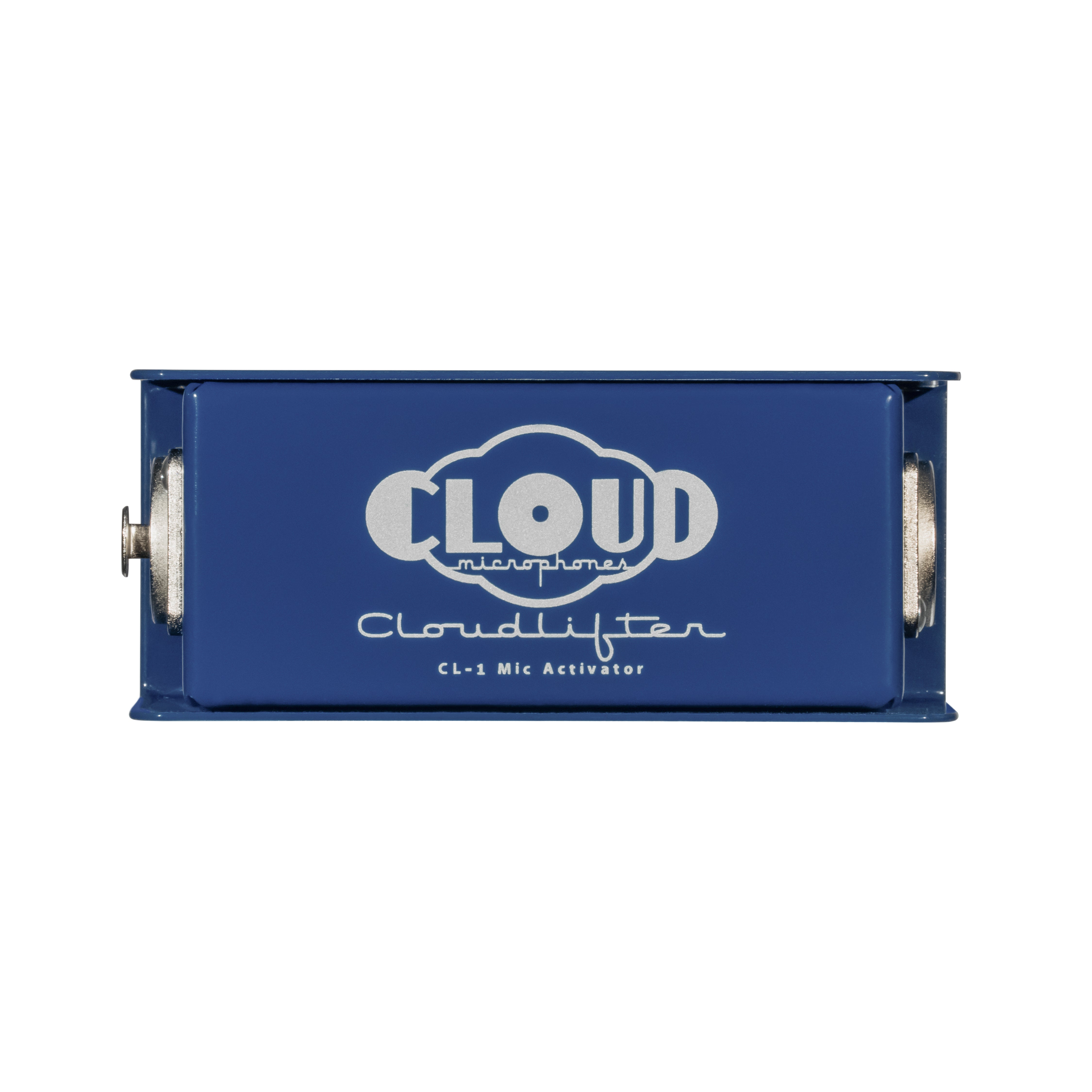

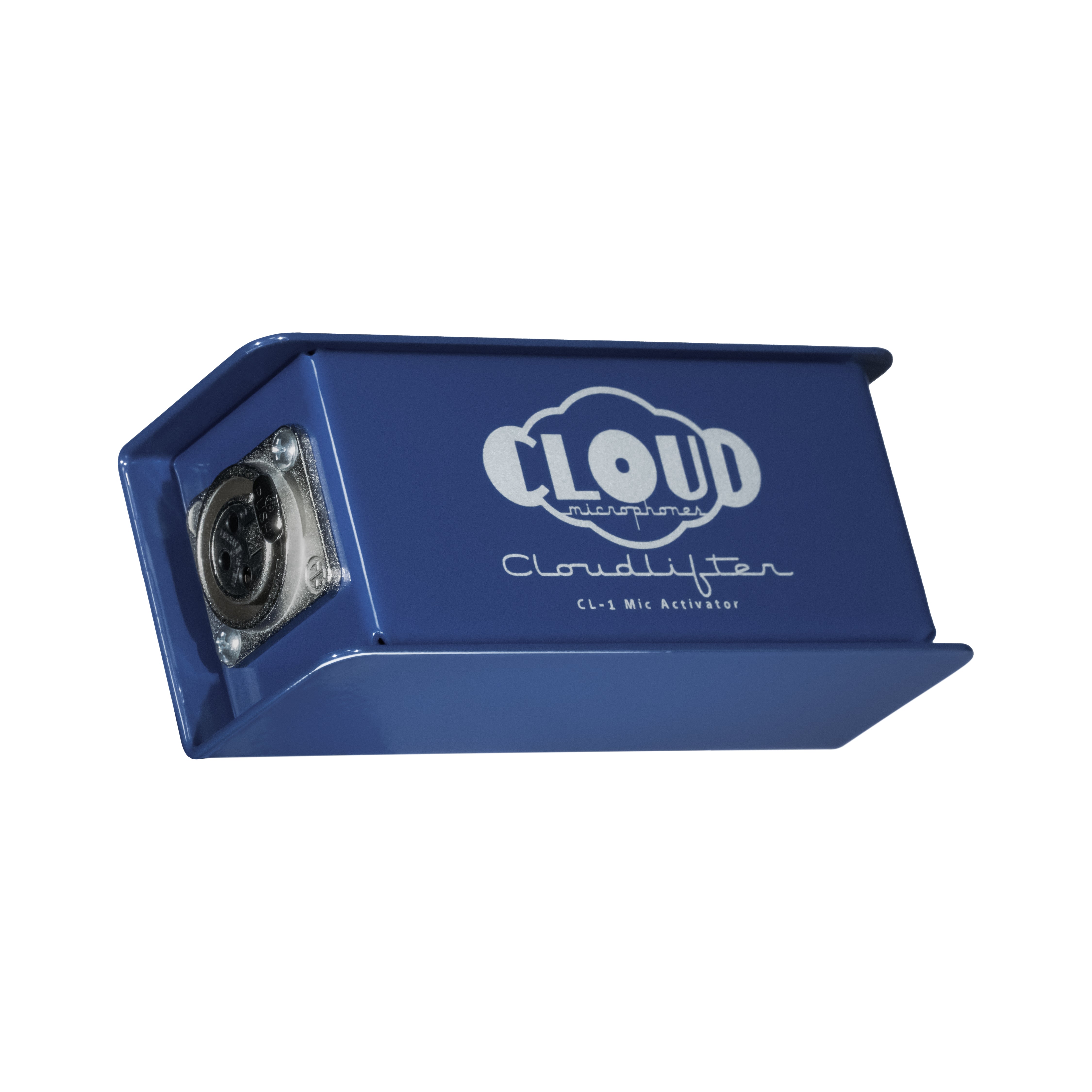

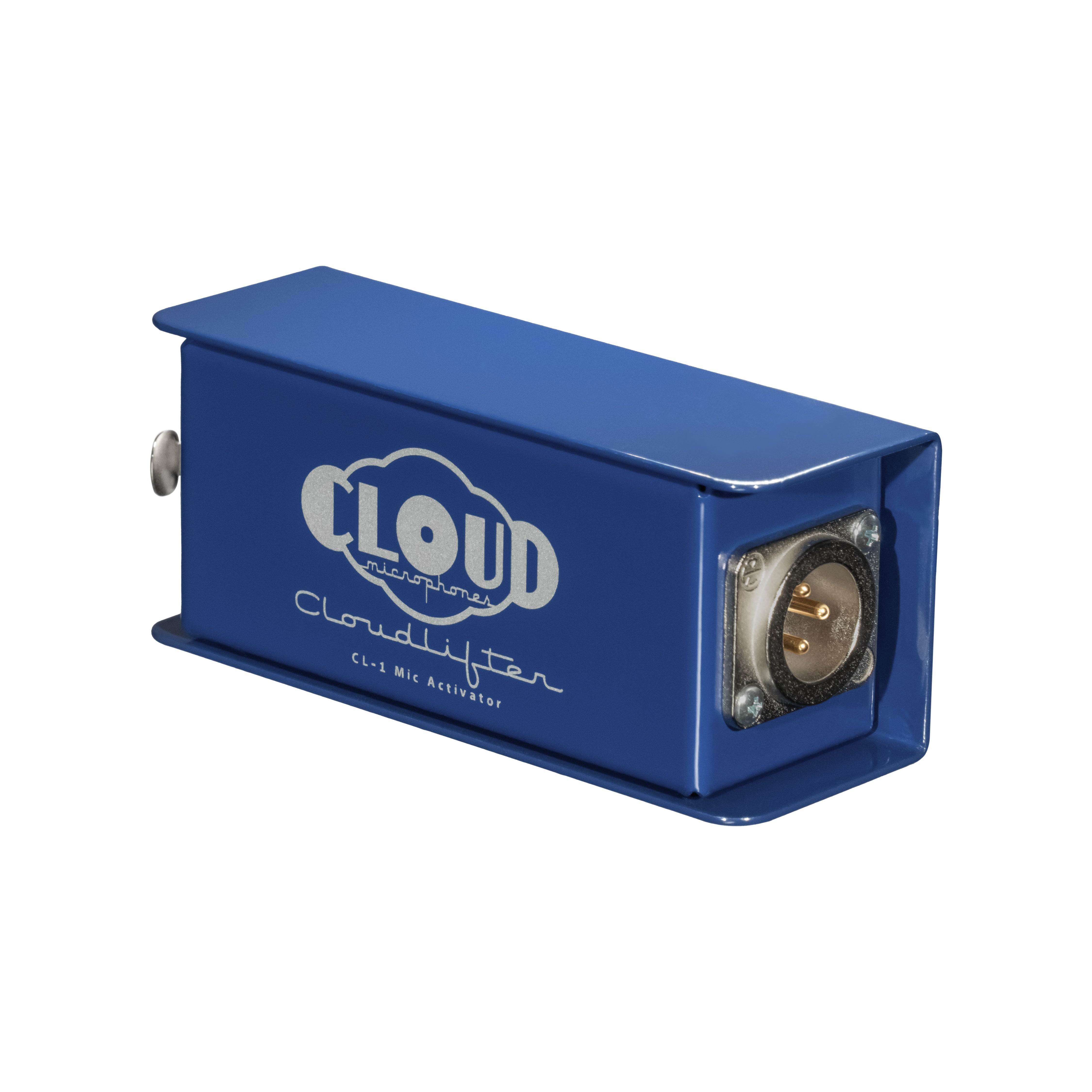

Cloudlifter CL-1 Single Channel Mic Activator

The Cloud Microphones Cloudlifter CL-1 is the industry standard inline microphone activator designed to turn passive dynamic, ribbon, and tube microphones into high-output active performers. Providing up to +25 dB of ultra-clean, transparent gain, it allows low-sensitivity microphones deliver maximum clarity without forcing your preamp into its noisy upper gain range.

Powered completely by standard +48V phantom power, the CL-1 uses the phantom power to drive its internal JFET gain stage while blocking DC current from passing through to the microphone. This makes it entirely safe for delicate passive ribbon microphones, vintage dynamics, and tube mic power supplies.

Key Features

• Up to +25dB of Ultra-Clean Gain: Boosts signal level significantly before reaching the audio interface or mixer preamp, dramatically improving signal-to-noise ratio.

• Patented Class-A Discrete JFET Circuitry: Ultra-clean signal path directly couples JFET architecture for uncolored sound and maximum transient fidelity.

• Phantom Power Protection: Operates on standard +48V phantom power without passing DC current to the microphone, protecting ribbon and tube mics.

• Optimal Load Matching: Provides a $3\text{ k}\Omega$ input impedance ideal for getting optimal performance from low-output dynamic and ribbon transducers.

• Gold-Pin XLR Hardware: Premium Neutrik gold-pin XLR input and output jacks ensure high signal integrity across thousands of connection cycles.

• Built for Life on the Road: Rugged steel enclosure handcrafted in the USA, backed by a limited lifetime warranty upon registration.

Technical Specifications

• Form Factor: Compact Inline / Desktop Hardware Chassis

• Channel Count: 1 Channel

• Gain Range: Up to $+25\text{ dB}$ (depending on microphone impedance load)

• Circuit Topology: Patented Class-A Discrete JFET

• Input Impedance: $3\text{ k}\Omega$

• Power Requirements: $+48\text{V}$ Phantom Power (Consumes phantom power; blocks phantom power from reaching the microphone)

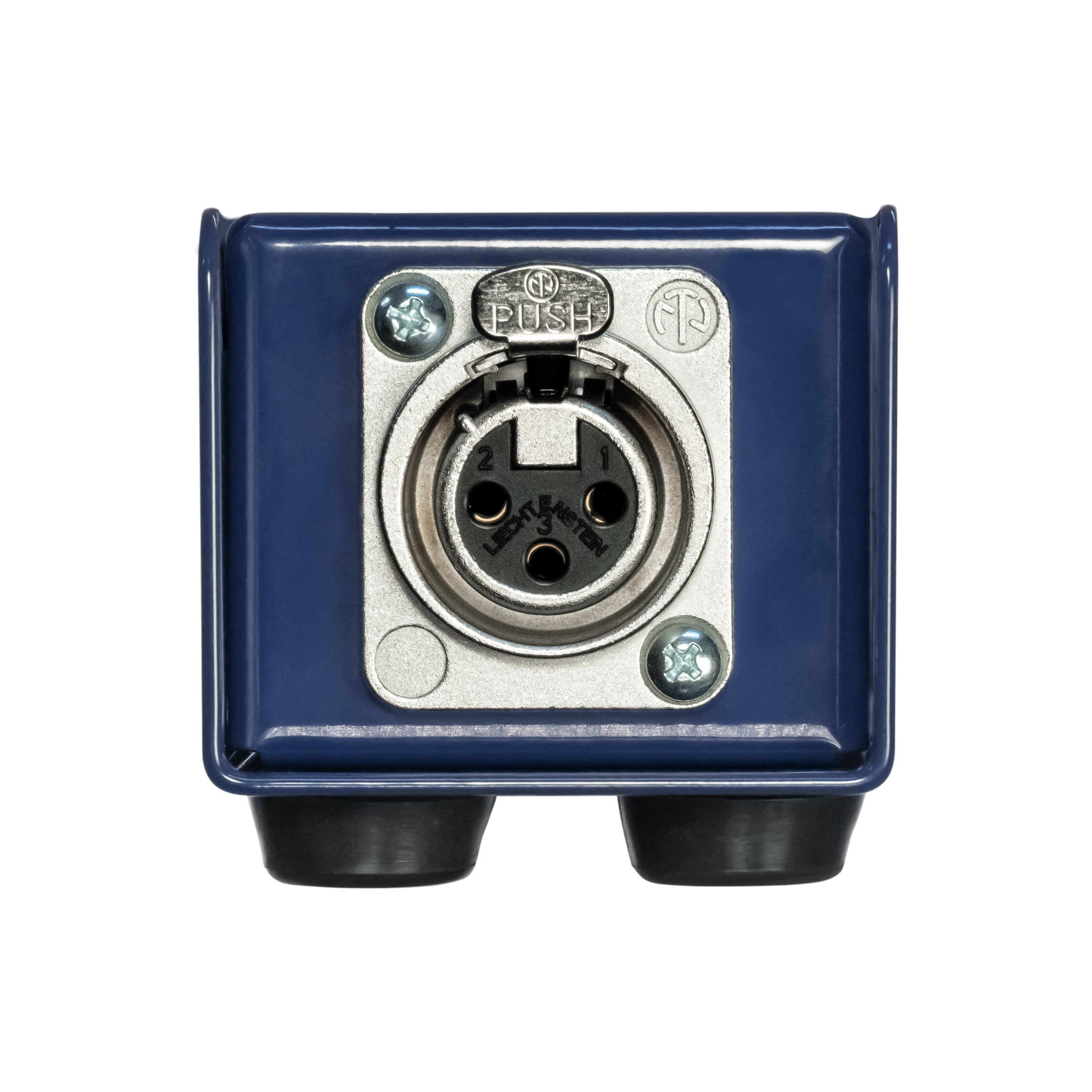

• Audio Inputs: 1x XLR Female (Gold Pin)

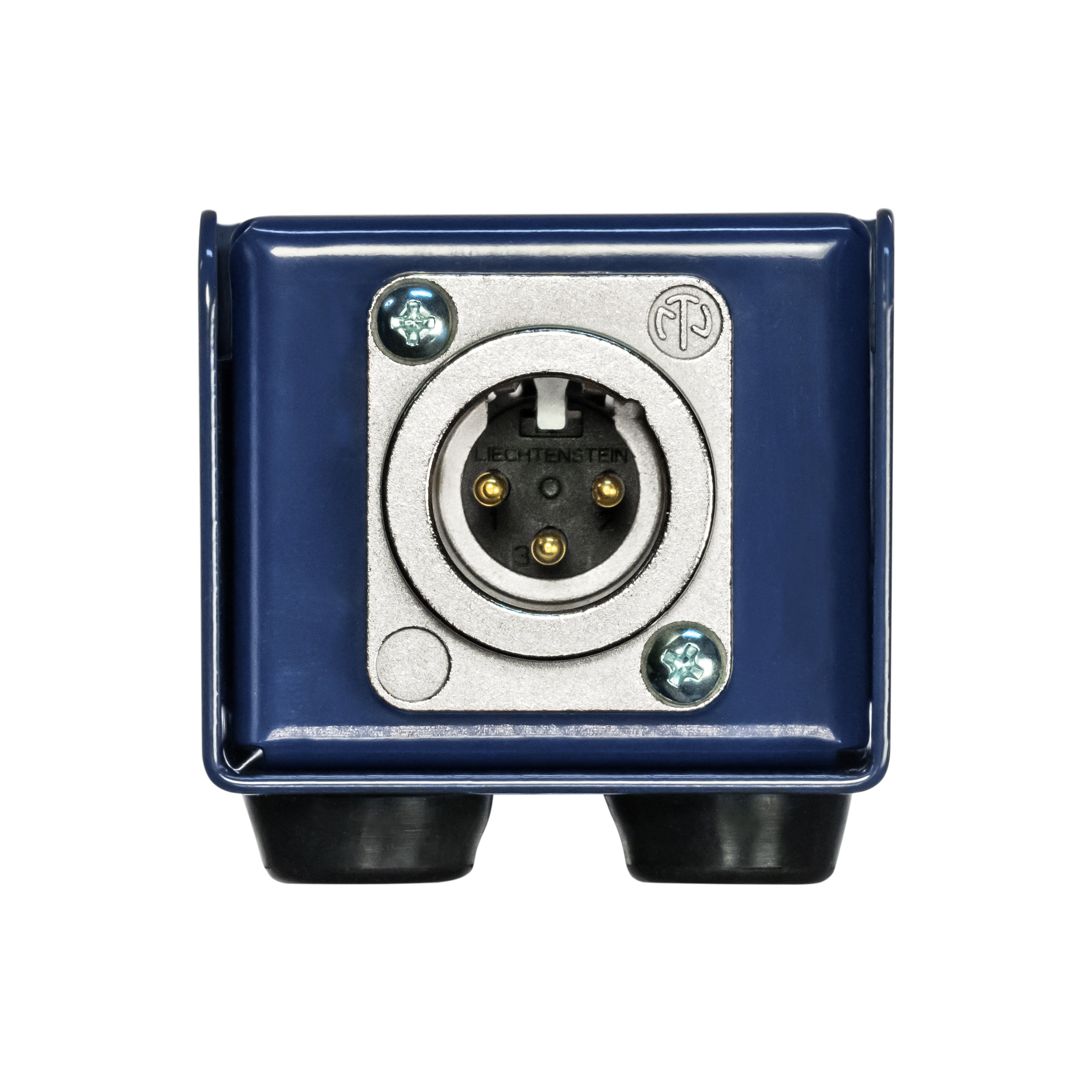

• Audio Outputs: 1x XLR Male (Gold Pin)

• Compatible Transducers: Passive Dynamics, Passive Ribbons, Tube Mics (via PSU output), Battery-Powered Condensers, Passive DIs

• Enclosure Construction: Heavy-Duty Steel Enclosure (Handcrafted in the USA)
