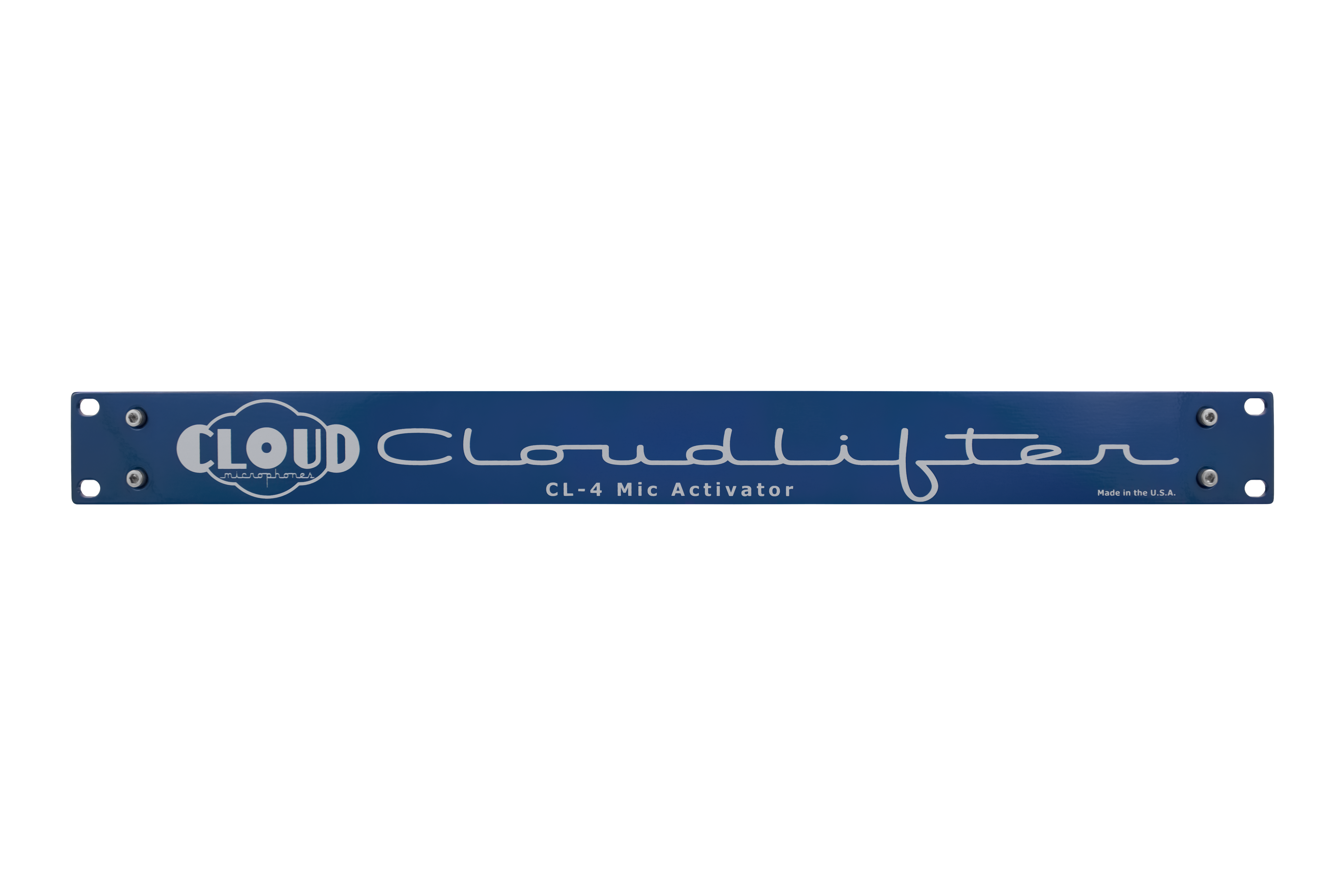

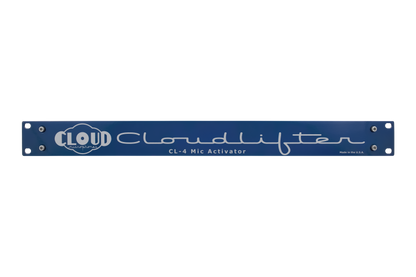

Cloudlifter CL-4 Four Channel Rack Mount Mic Activator

The Cloud Microphones Cloudlifter CL-4 brings the transparent performance of Cloud’s patented active circuitry into a 1U 19-inch rackmount enclosure. Engineered for multi-channel tracking, podcast panels, live sound rigs, and broadcast suites, the CL-4 provides up to +25 dB of ultra-clean gain across four independent channels, allowing passive dynamic, ribbon, and tube microphones to capture full detail without pushing preamp gain stages into noise and distortion.

Powered by standard +48V phantom power (supplied individually per channel from your console or interface), the CL-4 drives its internal JFET gain stages while blocking DC voltage from passing downstream to connected microphones. This guarantees full protection for passive ribbon microphones, vintage dynamic capsules, and tube microphone power supplies.

Key Features

• Four Independent Channels: Elevates four microphones simultaneously with up to +25dB of clean, uncolored gain per channel.

• Rackmount Convenience: Standard 1U 19-inch steel chassis design integrates seamlessly into studio racks, road cases, and live sound setups.

• Patented Class-A Discrete JFET Circuitry: Direct-coupled signal path ensures low noise, maximum transient detail, and zero frequency coloration.

• Phantom Power Safe: Operates via standard +48V phantom power per channel without passing DC current to microphones, safeguarding sensitive ribbon transducers.

• Optimal Impedance Load: Features a $3\text{ k}\Omega$ input impedance optimized to extract natural frequency response and dynamic depth from passive dynamic and ribbon mics.

• Gold-Pin XLR Connectors: Premium Neutrik gold-pin XLR inputs and outputs maintain clean conductivity across thousands of patch cycles.

• Handcrafted American Construction: Built in Tucson, Arizona, and backed by a limited lifetime warranty upon product registration.

Technical Specifications

• Form Factor: 1U 19-Inch Rackmount Enclosure

• Channel Count: 4 Independent Channels

• Gain Range: Up to $+25\text{ dB}$ per channel (load-dependent)

• Circuit Topology: Patented Class-A Discrete JFET

• Input Impedance: $3\text{ k}\Omega$

• Power Requirements: $+48\text{V}$ Phantom Power per channel (Blocks phantom power from reaching microphones)

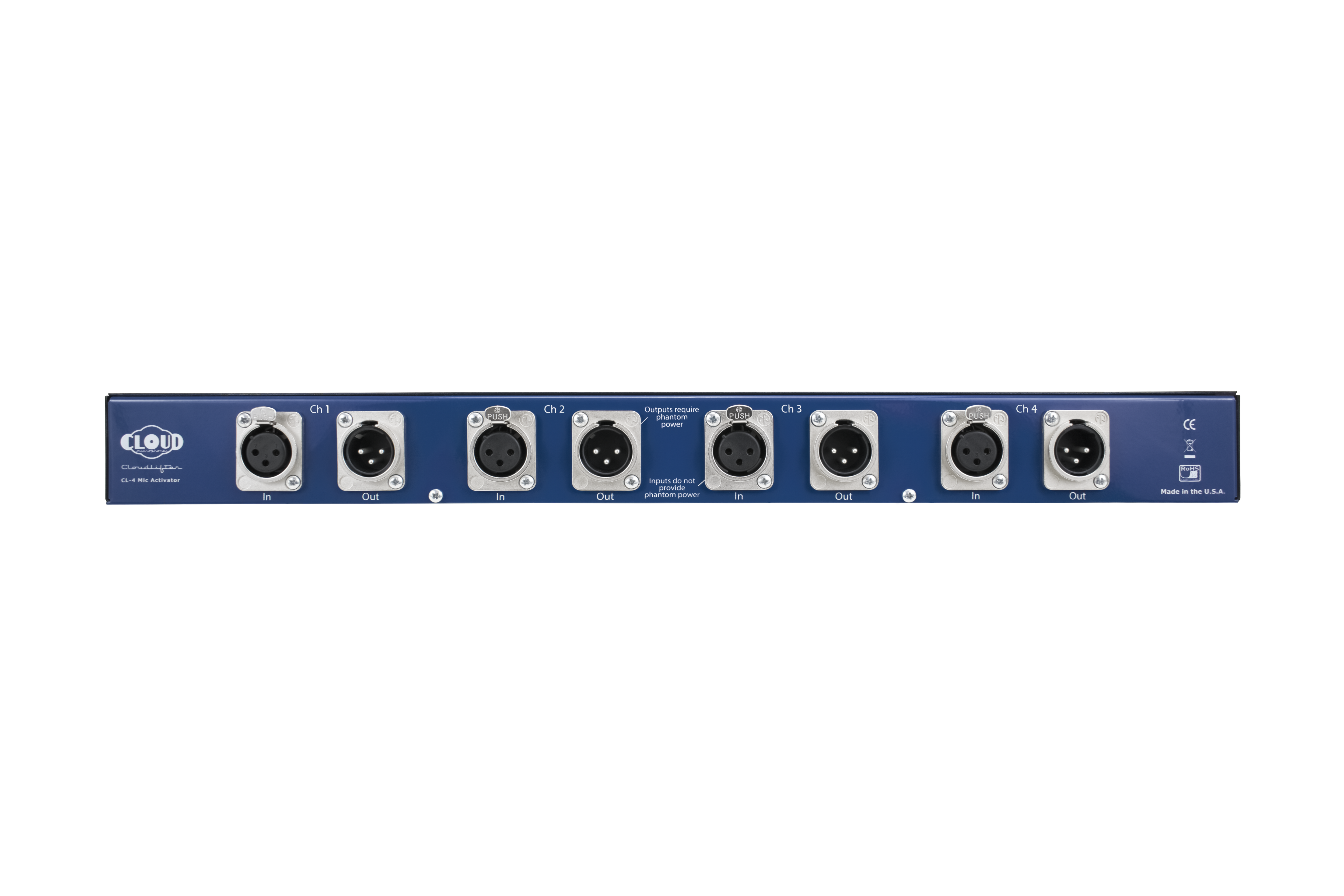

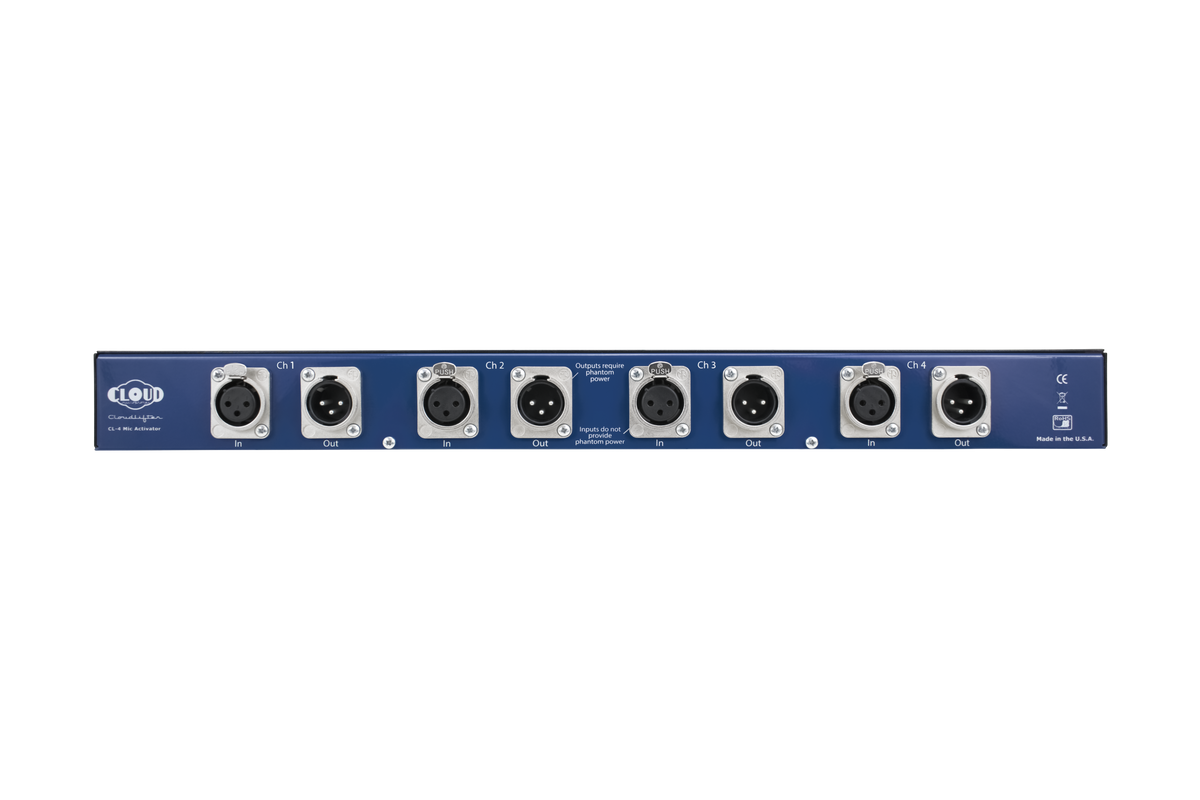

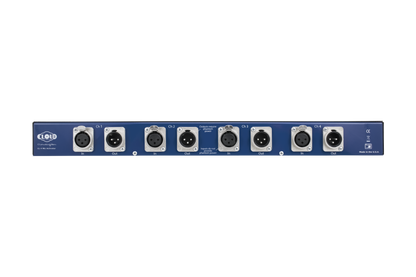

• Audio Inputs: 4x XLR Female (Gold Pin)

• Audio Outputs: 4x XLR Male (Gold Pin)

• Compatible Transducers: Passive Dynamics, Passive Ribbons, Tube Mics (via PSU output), Battery-Powered Condensers, Passive DIs

• Enclosure Construction: Heavy-Duty 1U Steel Chassis (Handcrafted in Tucson, AZ, USA)
