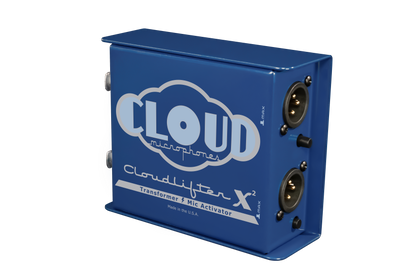

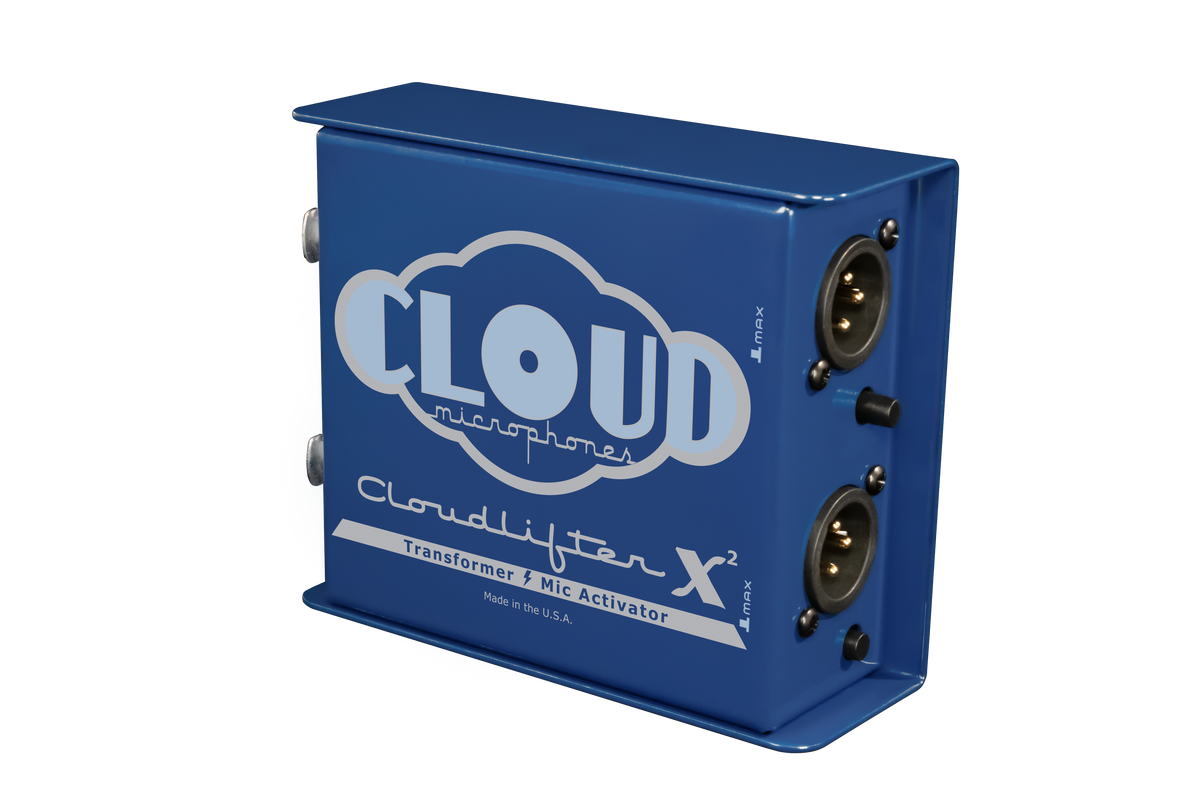

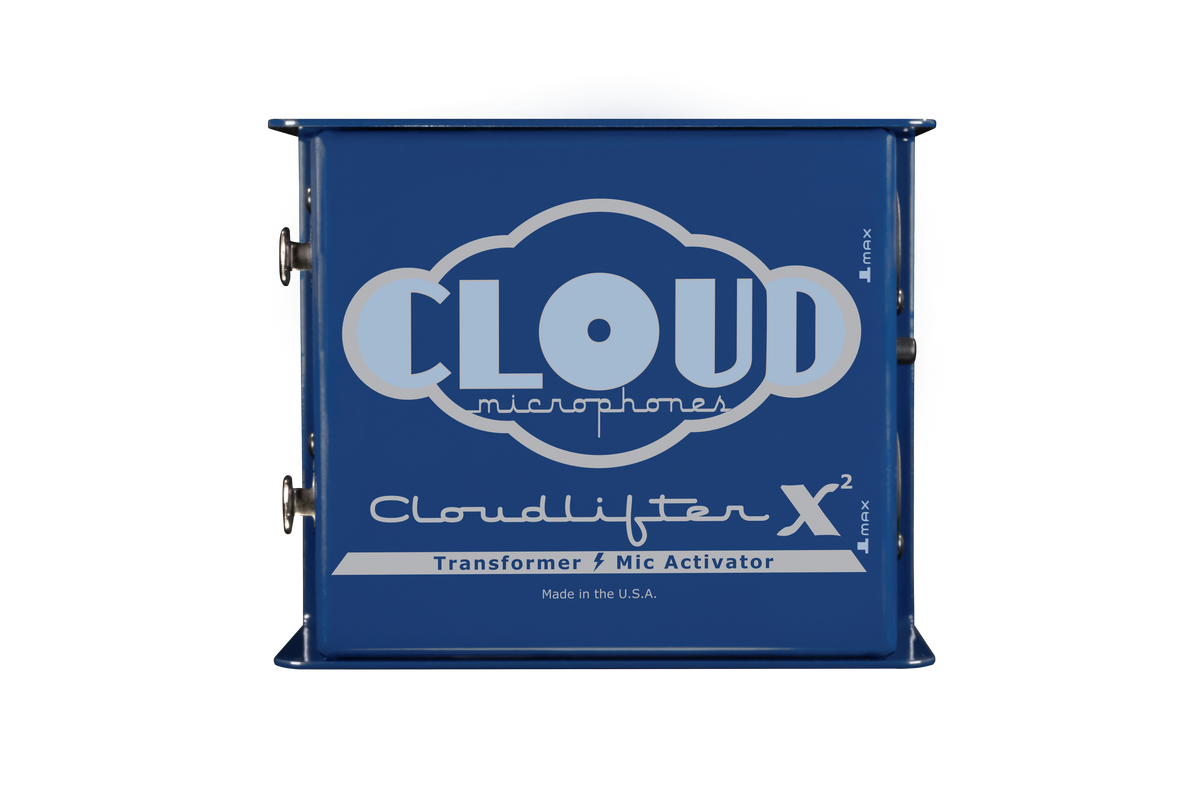

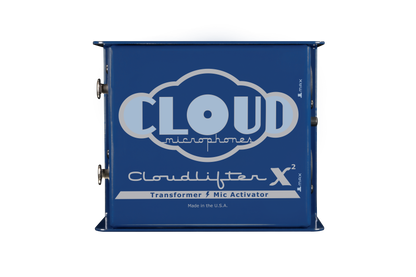

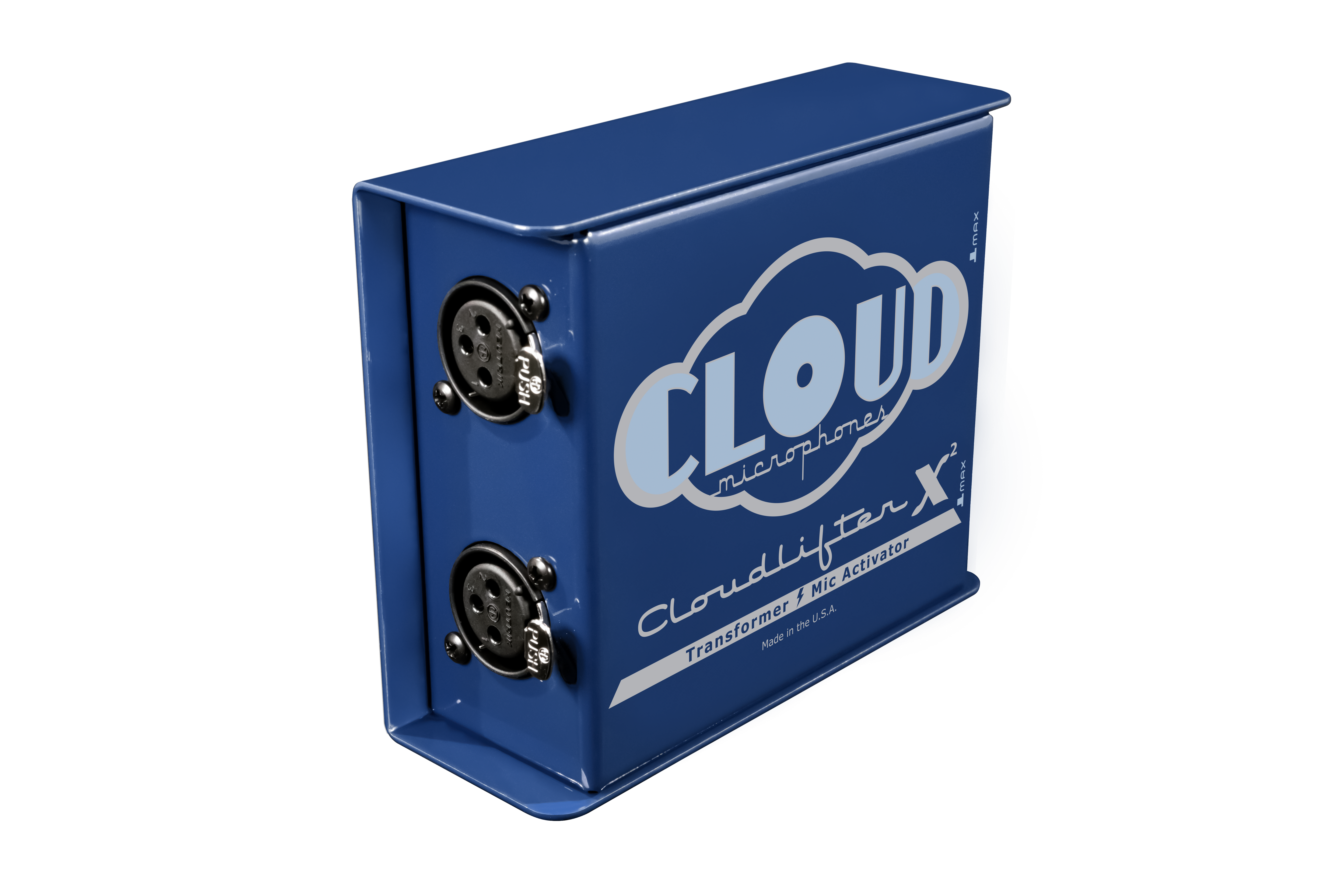

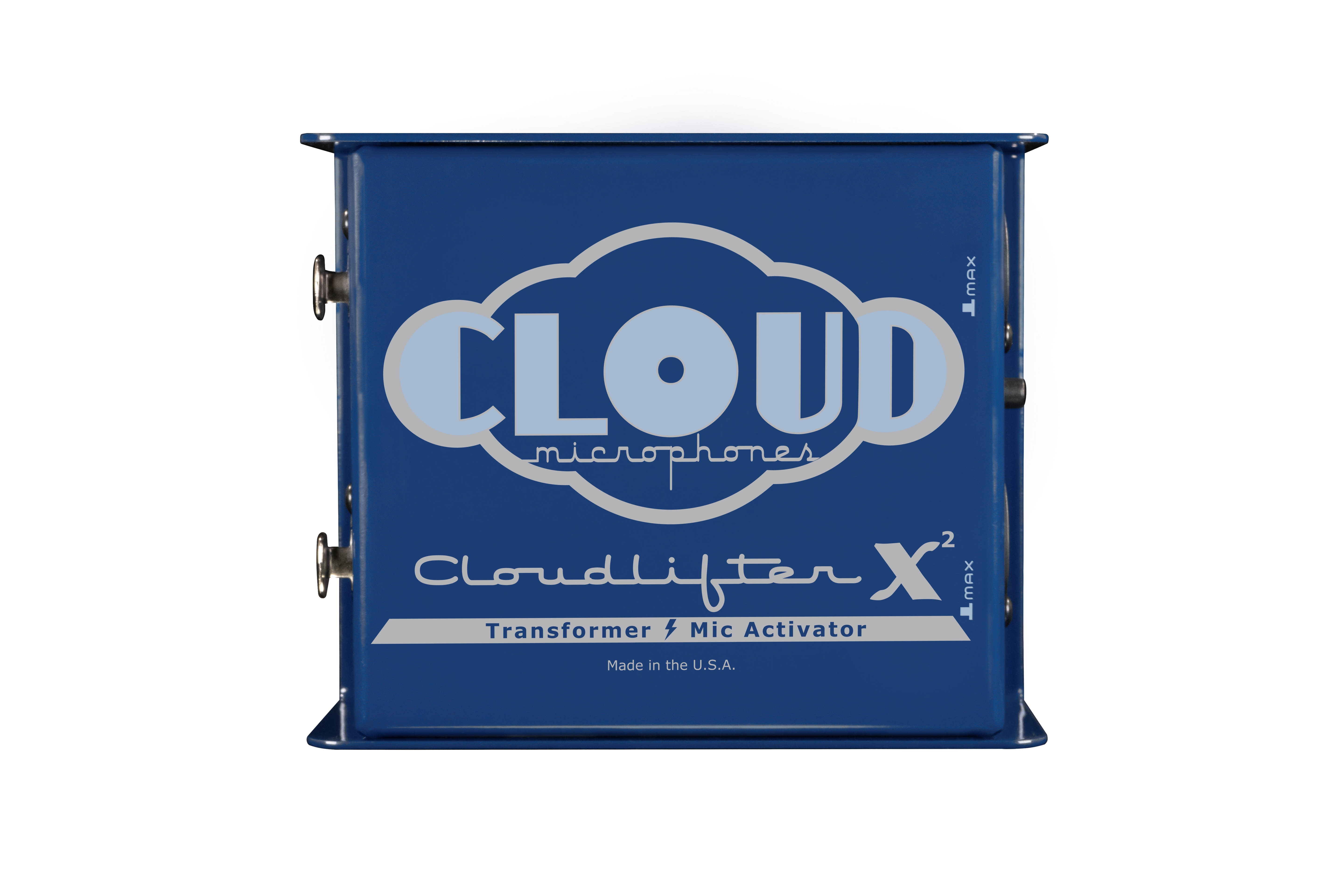

Cloudlifter CL-X2 Dual Channel Mic Activator with Cinemag Transformers

The Cloud Microphones Cloudlifter CL-X2 brings the transformer-enhanced gain staging of the CL-X into a dual channel portable enclosure. Combining Cloud's patented Class-A discrete JFET circuitry with custom nickel-core CineMag input transformers, the CL-X2 provides switchable gain levels of +12 dB or up to +36 dB per channel.

Each channel on the CL-X2 features an independent More / Max output attenuator switch. In Max mode, the CL-X2 delivers up to +36 dB of clean boost, taking the gain burden off your preamps when capturing whispered vocals, ambient room sounds, or low-sensitivity dynamic and ribbon mics. Switching to +12 dB mode allows louder sources too drive the CineMag transformer stage without clipping downstream interfaces or converters.

Key Features

• Dual-Channel Versatility: Empowers two microphones simultaneously with independent transformer-coupled gain stages—ideal for stereo mic techniques or multi-person recording.

• Custom CineMag Nickel-Core Transformers: Infuses signals with natural harmonic depth, open top-end response, and subtle console-style weight.

• Switchable +12dB / +36dB Gain Stages: Choose between maximum clean boost (+36dB) for delicate sources or moderate attenuation (+12dB) to drive the transformer hard with loud signals.

• Patented Class-A Discrete JFET Circuitry: Ultra-clean direct-coupled topology retains transient speed while keeping the noise floor virtually silent.

• Phantom Powered & DC Safe: Powered via standard +48V phantom power per channel without passing DC voltage to input transducers, ensuring complete safety for passive ribbon and vintage dynamic microphones.

• Optimal $3\text{ k}\Omega$ Load Impedance: Matched loading extracts full frequency extension and dynamic detail from passive dynamic and ribbon capsules.

• Handcrafted USA Steel Chassis: Heavy-duty portable steel enclosure fitted with premium Neutrik gold-pin XLR connections, built in Tucson, Arizona, and backed by a limited lifetime warranty.

Technical Specifications

• Form Factor: Portable Dual-Channel Desktop Unit

• Channel Count: 2 Independent Channels

• Gain Settings: Selectable $+12\text{ dB}$ ("More") / $+36\text{ dB}$ ("Max") per channel

• Circuit Topology: Patented Class-A Discrete JFET with Custom CineMag Nickel Transformers

• Input Impedance: $3\text{ k}\Omega$

• Frequency Response: $5\text{ Hz}-80\text{ kHz}(-0.3\text{ dB})$

• Power Requirements: $+48\text{V}$ Phantom Power per channel (Blocks phantom power from passing to connected microphones)

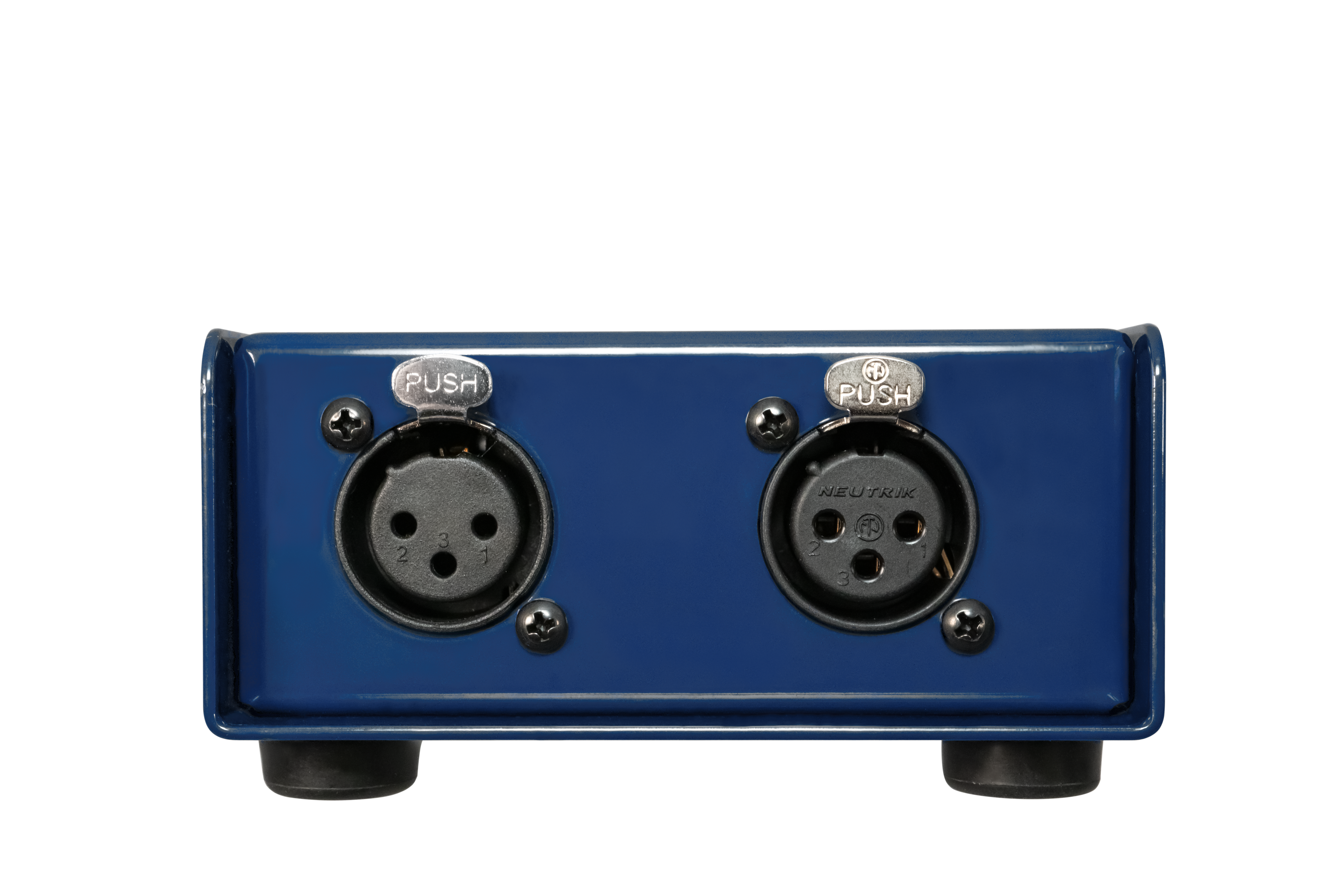

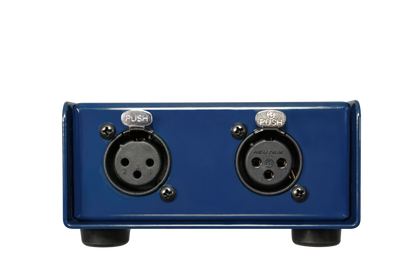

• Audio Inputs: 2x XLR 3-Pin Female (Neutrik Gold Pin)

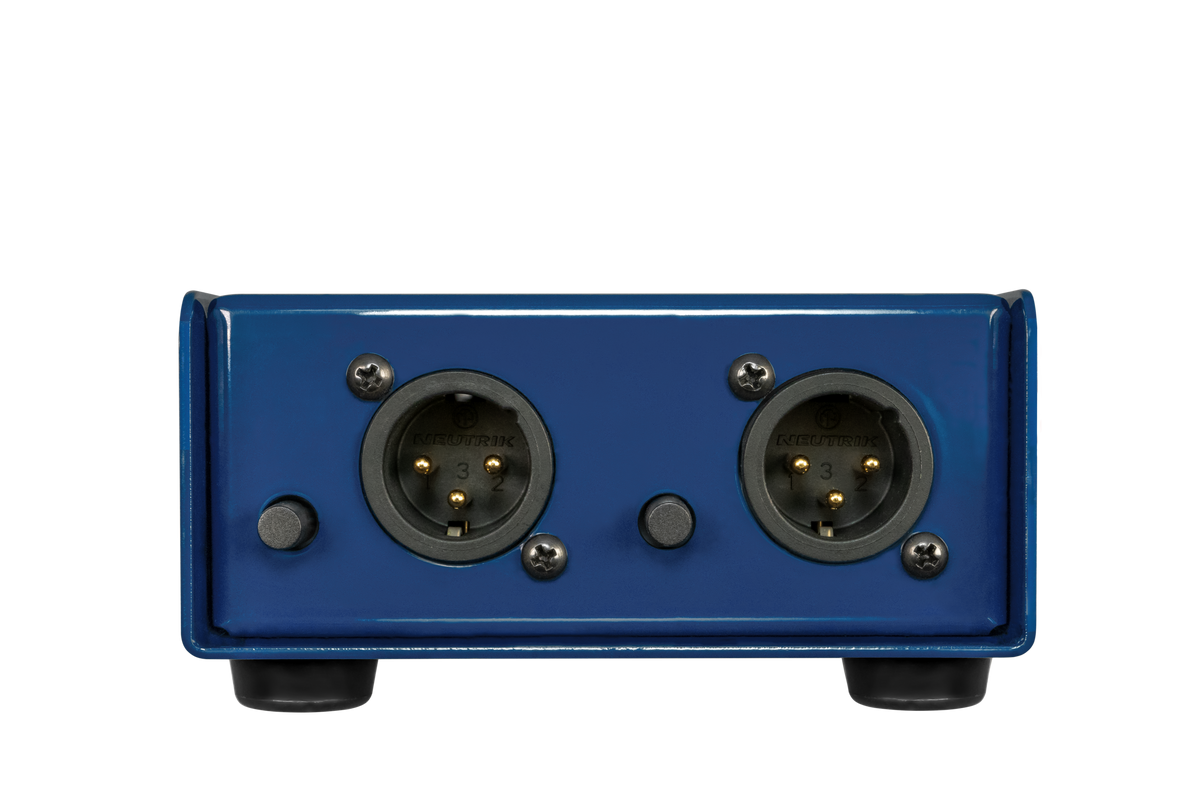

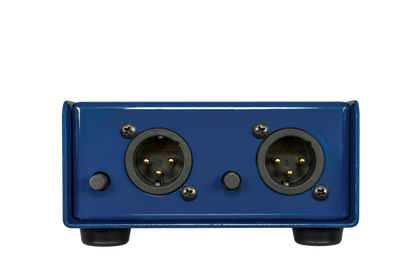

• Audio Outputs: 2x XLR 3-Pin Male (Neutrik Gold Pin)

• Compatible Transducers: Passive Dynamics, Passive Ribbons, Tube Mics (via PSU), Battery-Powered Condensers, Passive DIs

• Enclosure Construction: Heavy-Duty Steel Chassis (Handcrafted in Tucson, AZ, USA)
