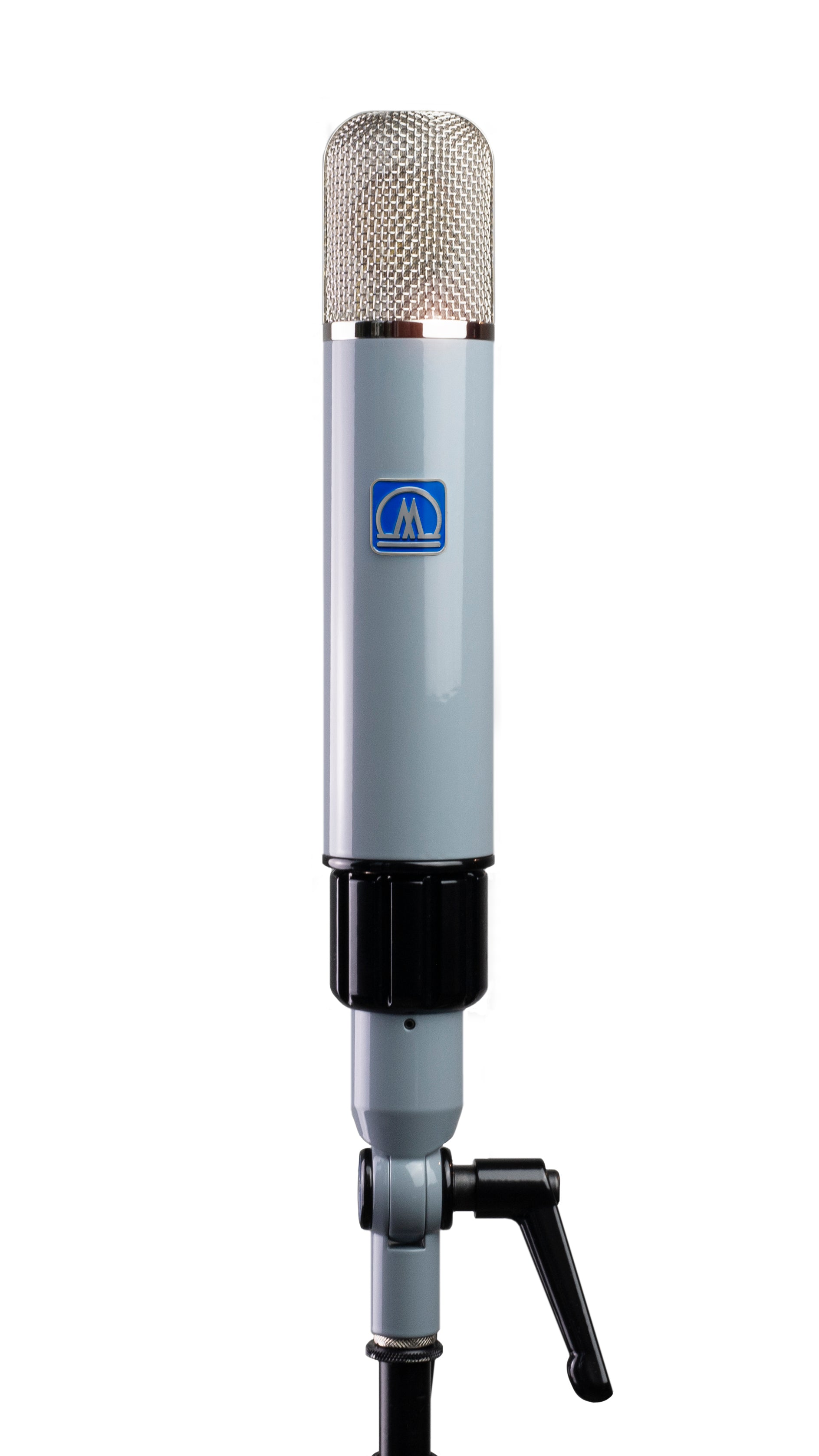

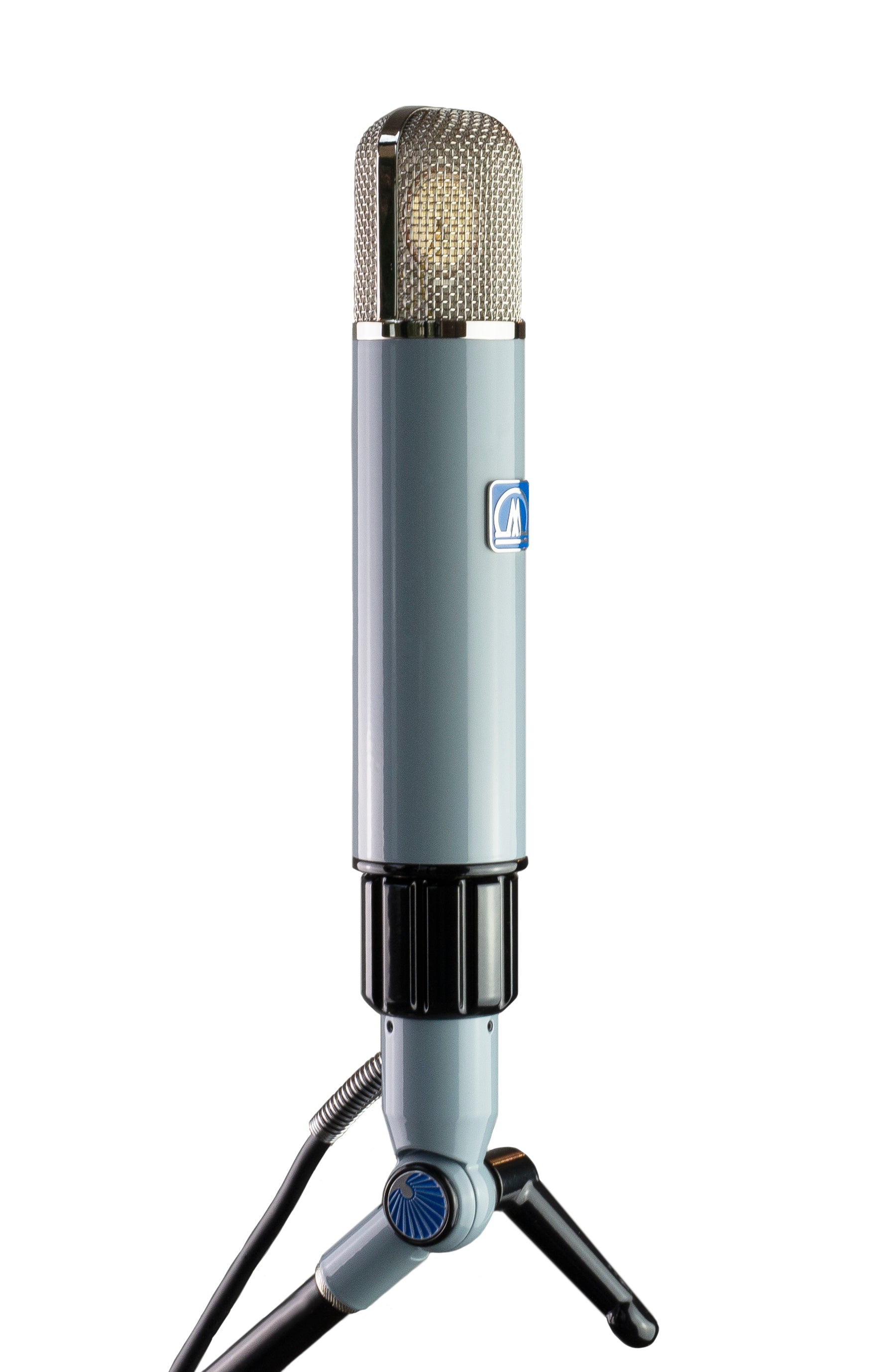

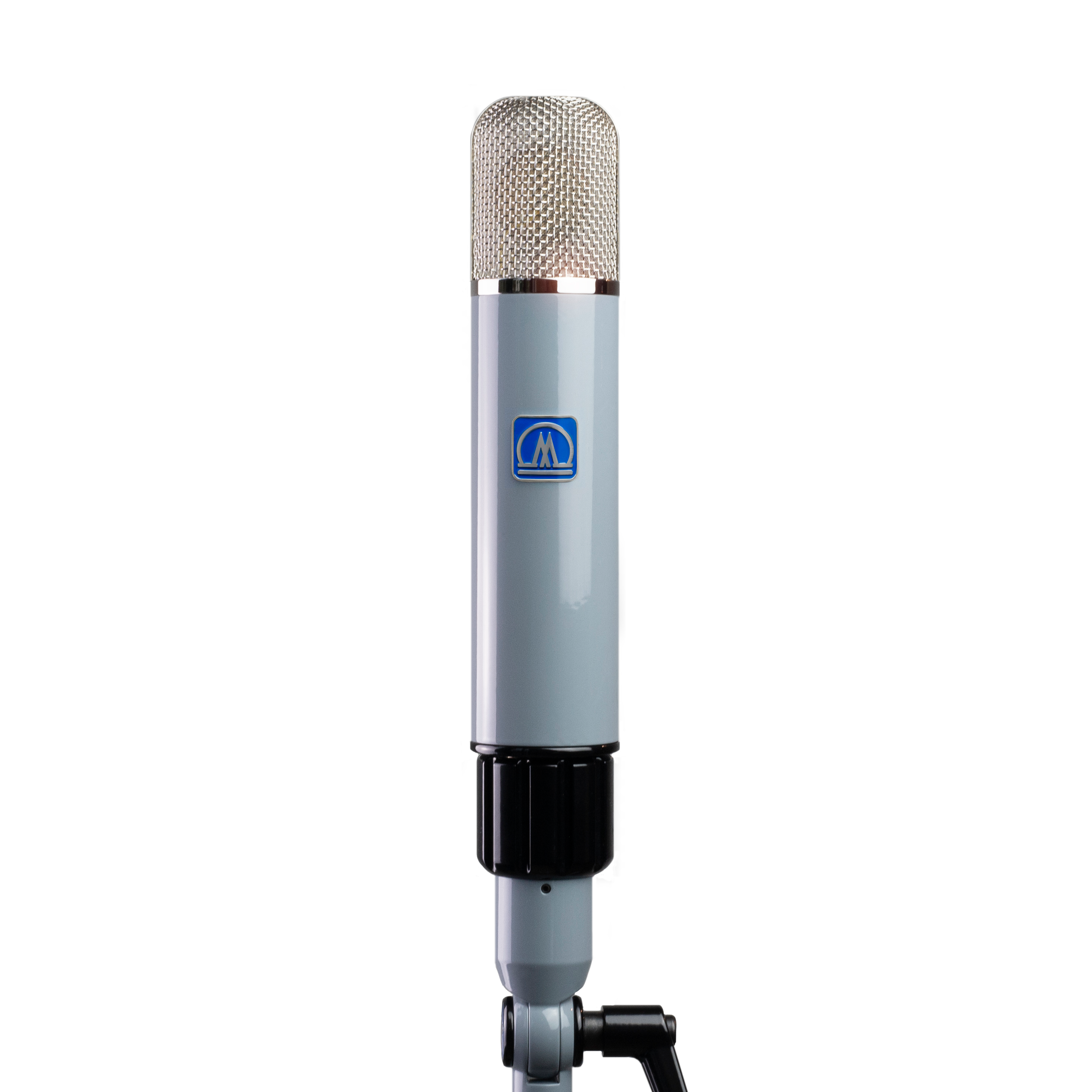

Myburgh M1 Tube Condenser Mic
The M1 is a new tube microphone. A whole new circuit design inspired by the vintage greats. Designed by Andrew Myburgh, Andreas Grosser and Eckehard Dux.
We are proud to announce these are available to the UK exclusively at Make Noise Pro Audio.
Capsule & Tube

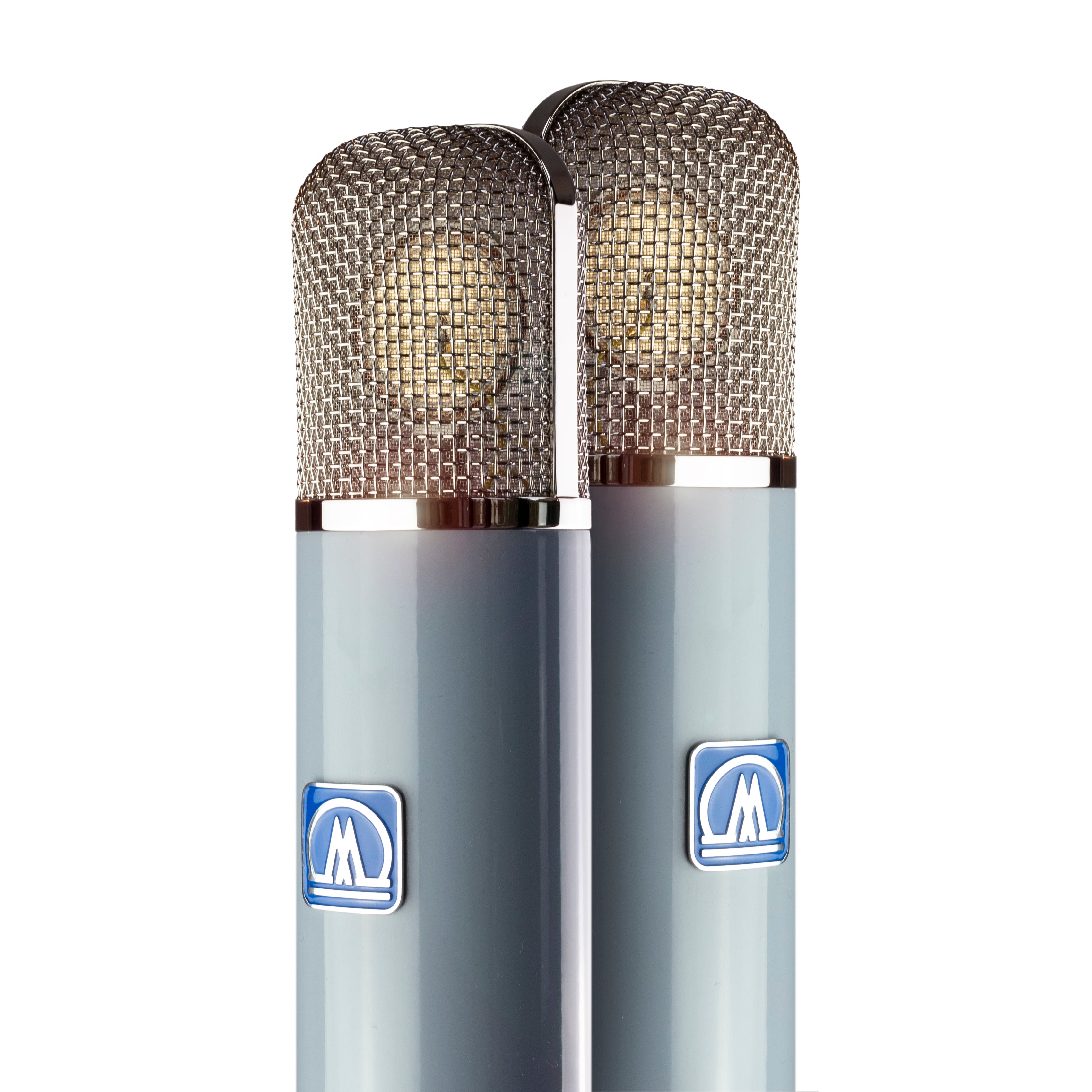

The M1 incorporates a German made Mylar M7 capsule manufactured by Siegfried Thiersch and a Russian military grade long life tube.
Amplifier & Transformers
The M1's amplifier has an incredible linear frequency response with minimal cut off below 30Hz or over 20kHz. With two custom built transformers; one in the mic and another in the power supply, the amplifier design, combined with the German made capsule and the new capsule headbasket design give the M1 its unique sound.
Noise Floor, Output & SPL
The M1 also has a super low noise floor, a monster output and handles SPL like your favourite FET kick drum mic does. Variable polar patterns and true cardioid is a main feature.
Specifications
- Original all new circuit design
- Switchable: Omni, Cardioid, Figure-of-8, 100% Cardioid
- Frequency response: 20 Hz - 20 kHz
- Internal pre-amplification stage: Linear 30 Hz - 20 kHz
- Sensitivity: 24mV/Pa
- Equivalent noise level: 15dBA
- Maximum SPL: 124 dB
- Capsule: M7 Thiersch Mylar
- Tube: Russian Military Grade Tube

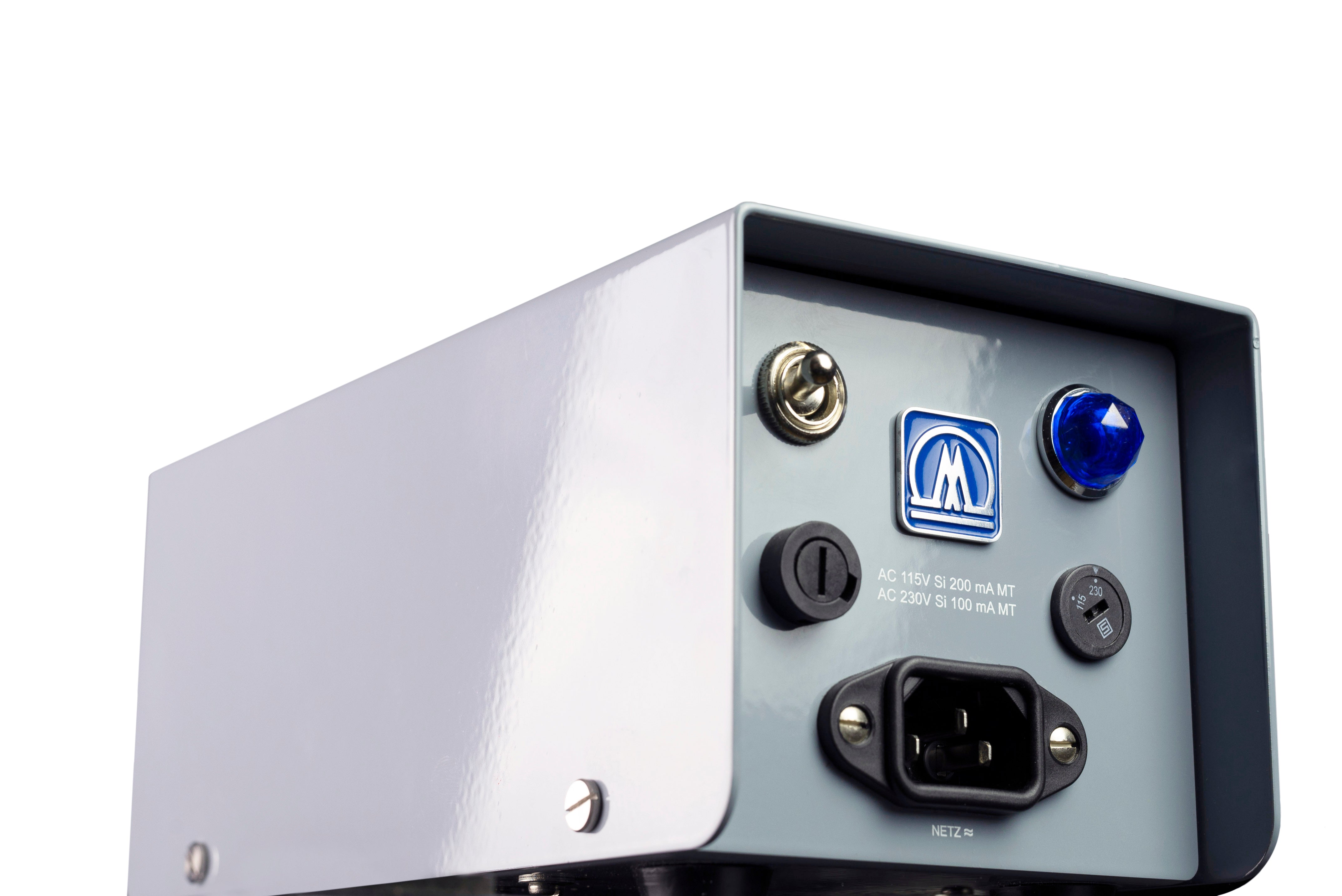

- Transformers: Custom spec Mic and PSU transformers by Pikatron
- Cable: Mogami Neglex 3172 tube microphonecable 7m (23 ft)
- Connectors: 7 Pin = Binder and 3 pin XLR = Neutrik
- Output impedance: 200 Ohms

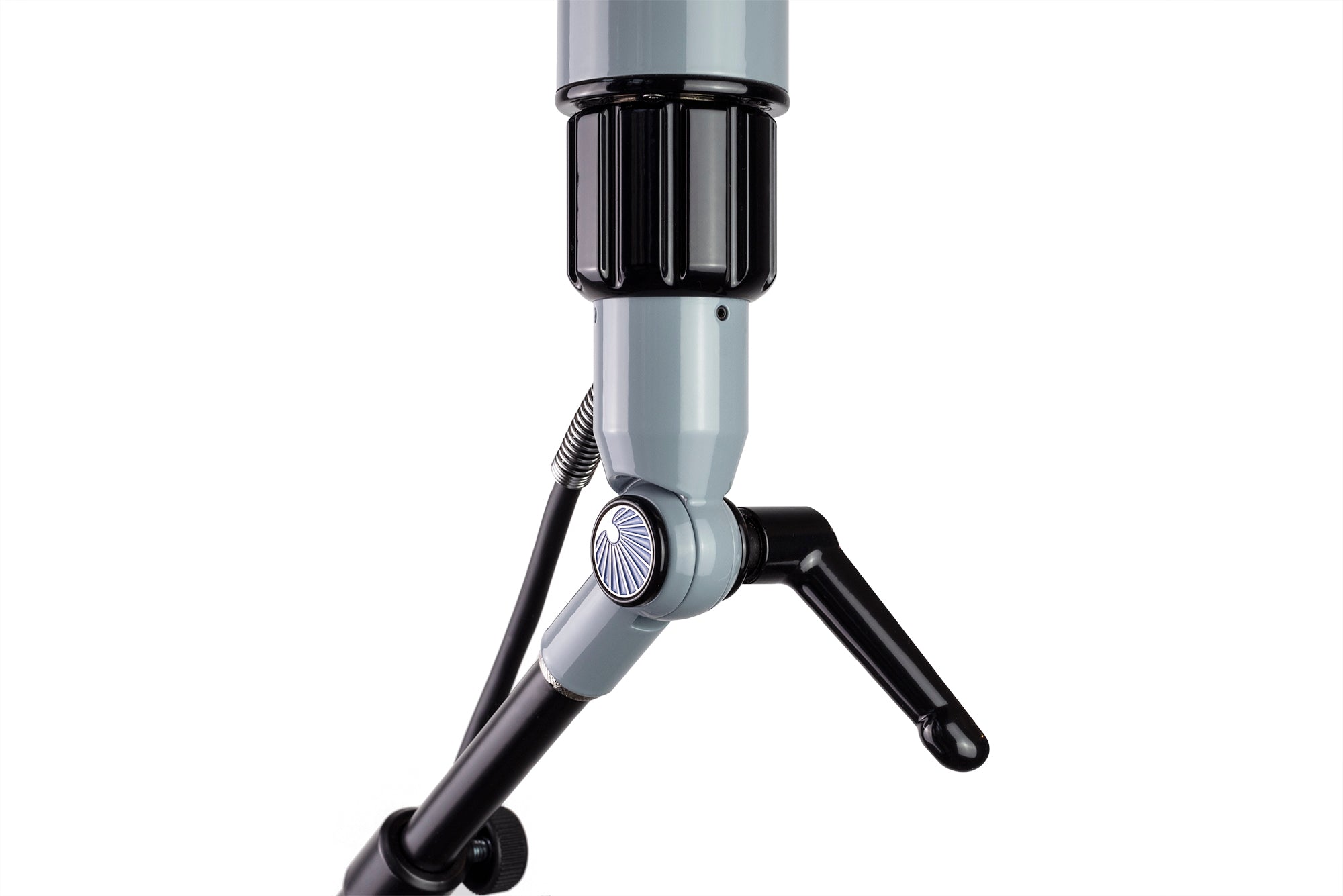

- Dimensions: Microphone: 22.5cm (8.85") / Mic + Swivel = 35.5cm (14")
- Weight: M1 = 0.6 kg (1.3 lbs) / M1 + Swivel = 1.9 kg (4.2 lbs)
- Shipping weight: 9 kg (20 lbs)

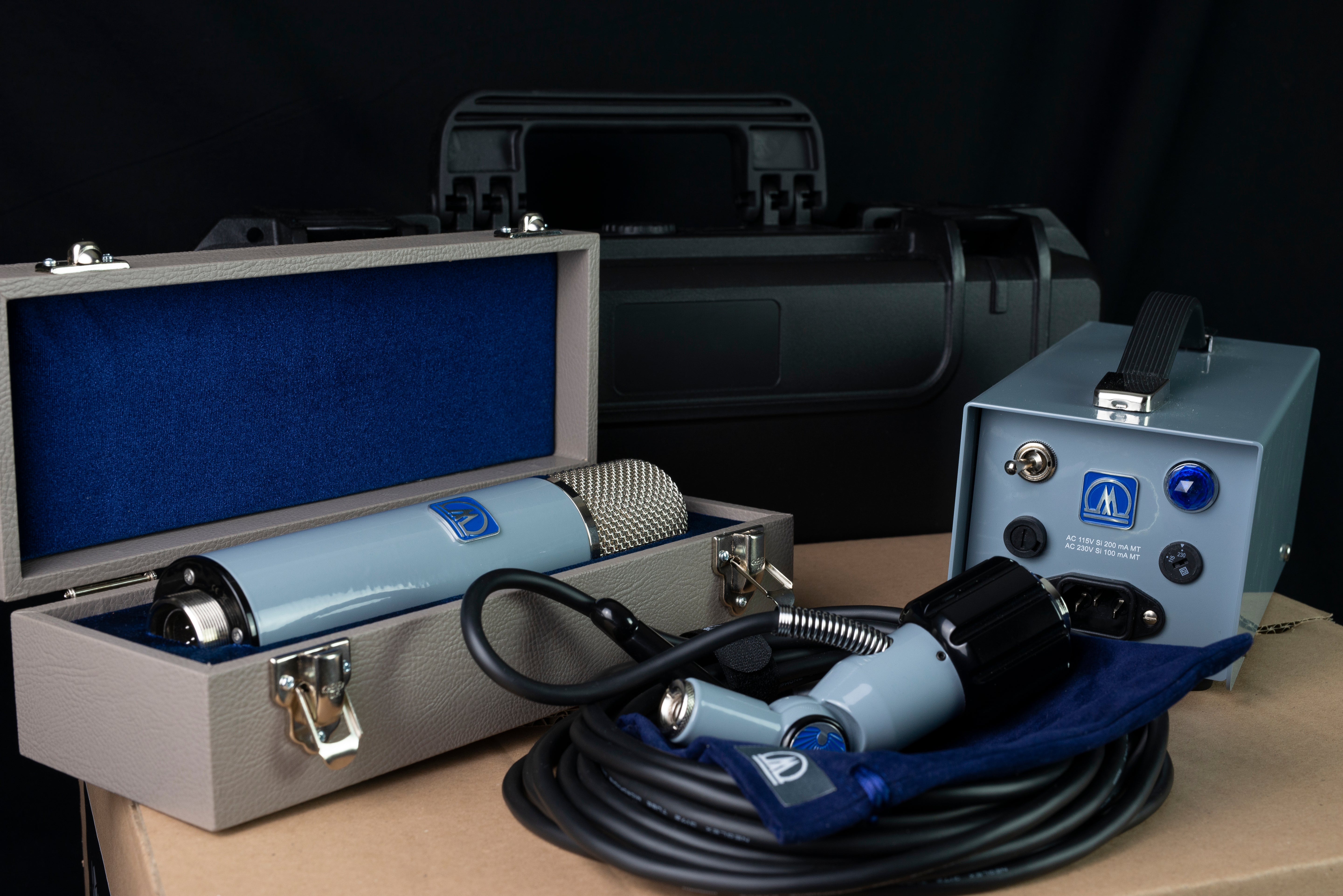

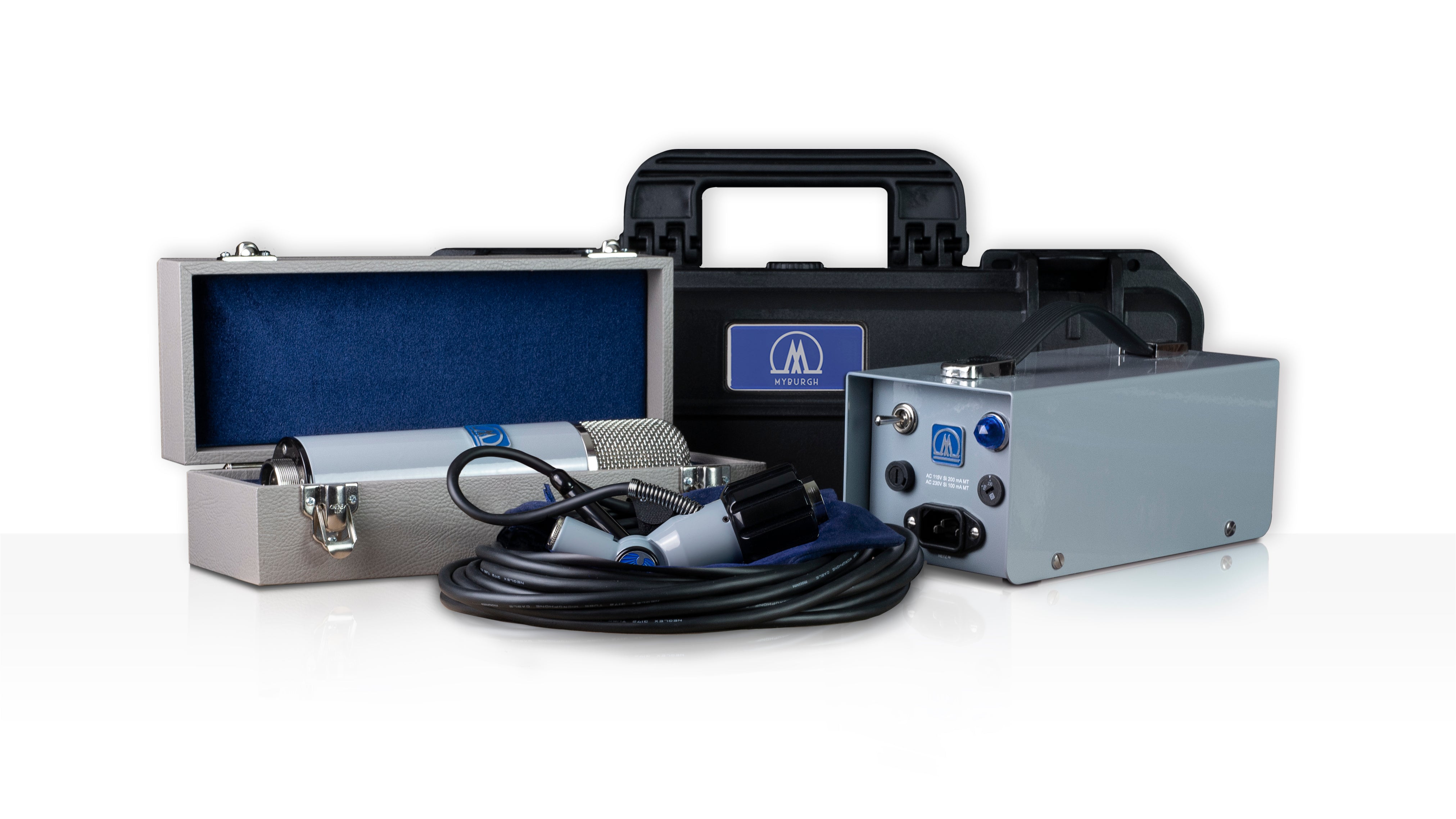

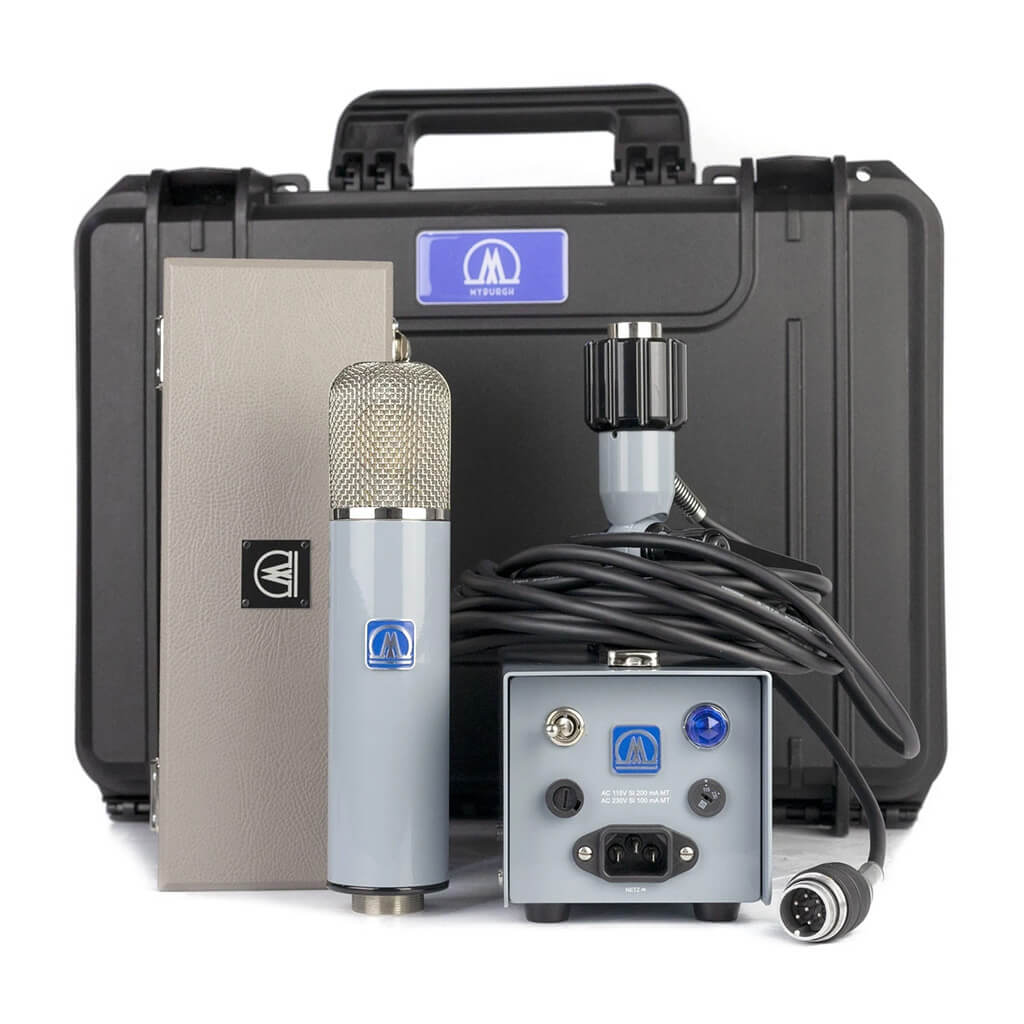

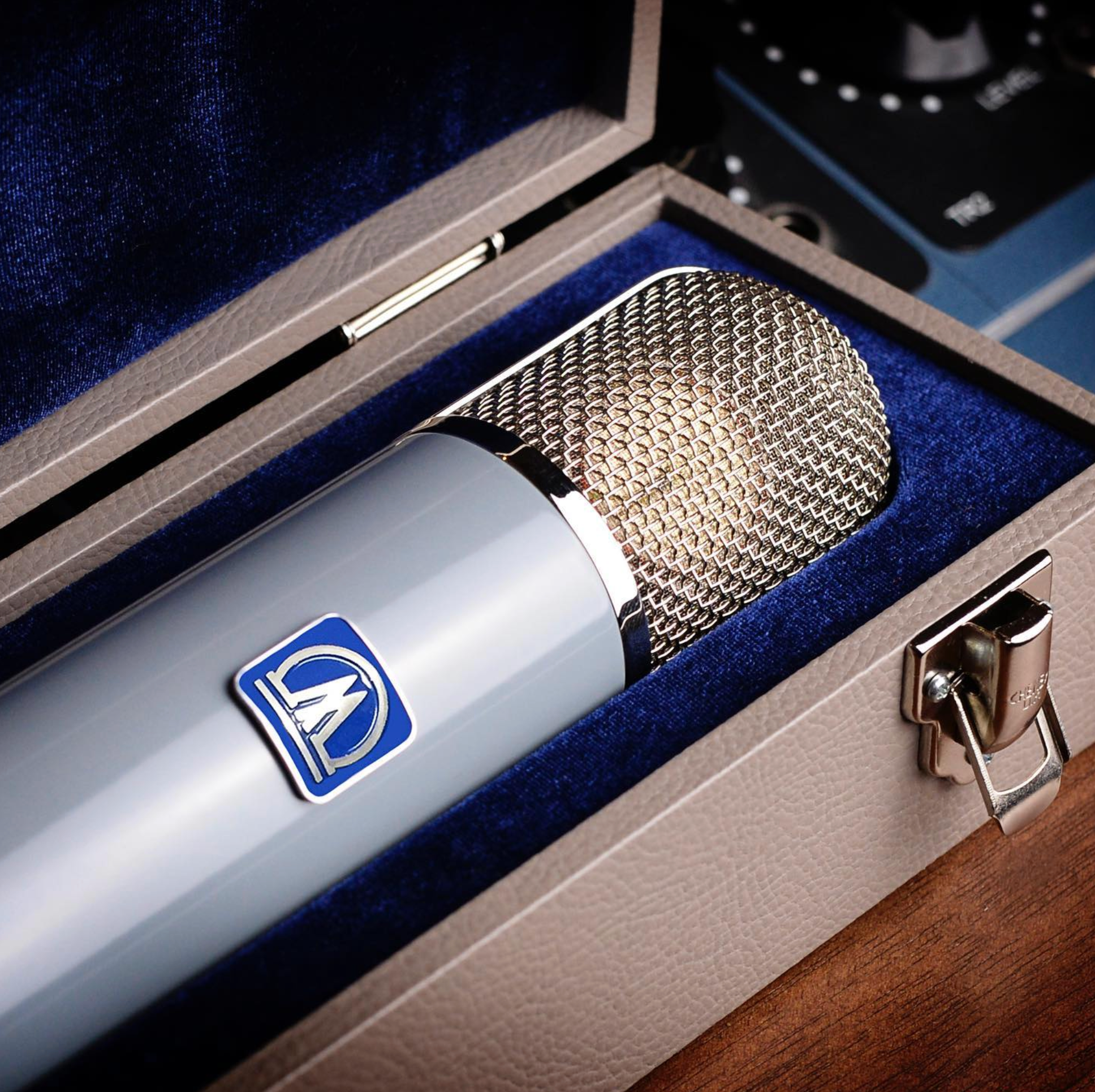

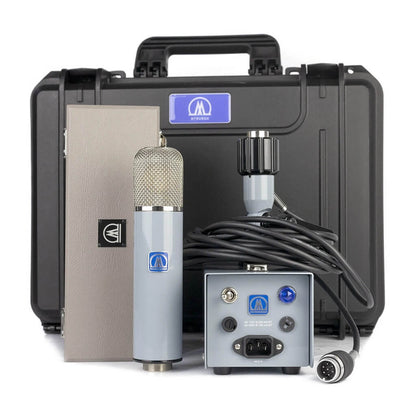

- Accessories: Custom M1 box, Waterproof Case, Swivel pouch
MYBURGH-M1
Myburgh M1 Tube Condenser Mic
