RME Digiface AES

The latest Digiface AES is a professional, bus powered 14 input and 16 output channel USB 2.0 interface with 2 Mic/Line universal analog input channels and 4 analog output channels (2 XLR, one TRS phones) complementing its digital I/O section. With an excellent set of digital connectivity, SteadyClock FS, full stand-alone operation and built-in parametric EQ, the Digiface AES shines as the perfect all-in-one solution for recording and playback of digital and analog sources, as well as flexible playback/monitoring via TotalMix FX.

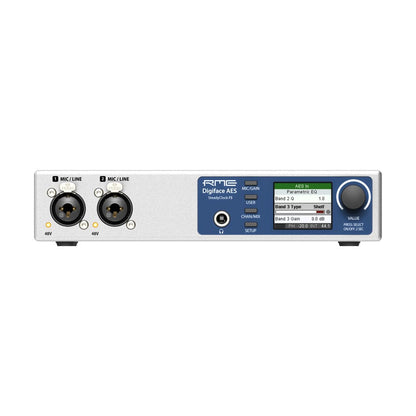

For the main inputs, RME uses the proven mic/line preamps in XLR combo configuration of the Babyface Pro FS. Two digitally controlled preamps provide individually switchable 48V phantom power. These circuits feature a gain range of 75 dB, adjustable in steps of 1 dB, including a relay-driven PAD, resulting in exceptional EIN (Equivalent Input Noise) performance as well as line overload protection, and enough gain for even the lowest level microphones.

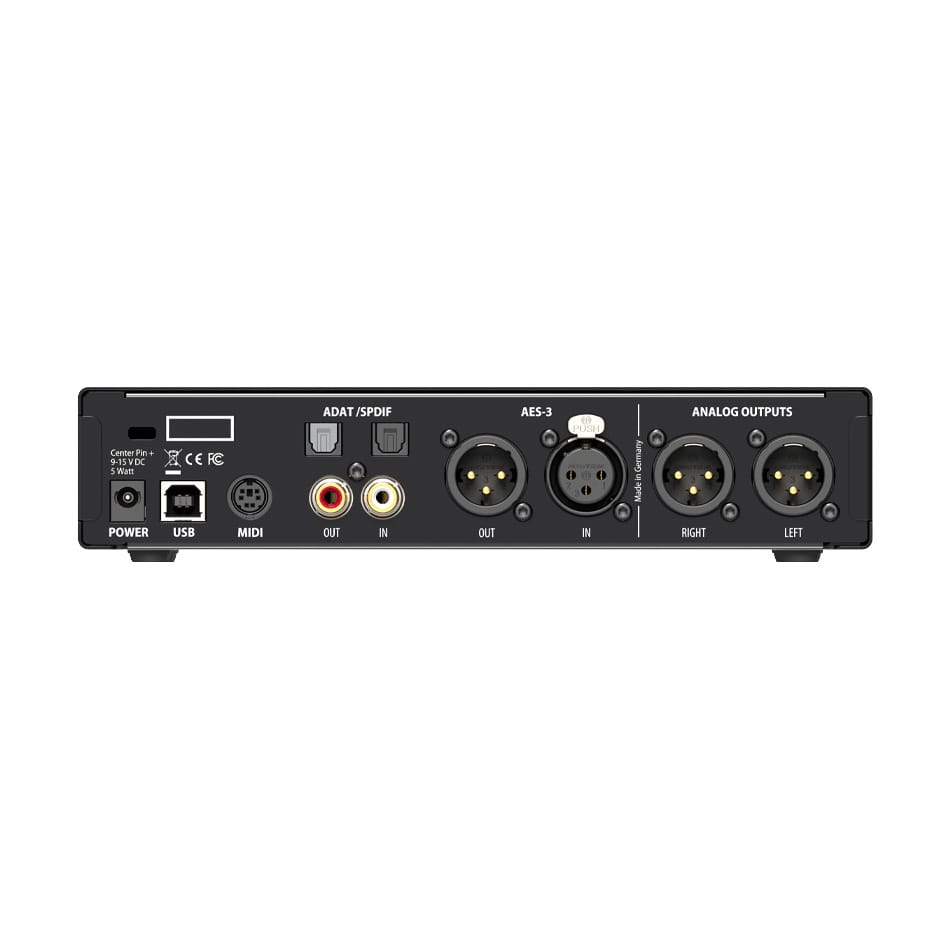

On the back of the Digiface AES there are 2 balanced analogue outputs via XLR male to drive power amps, active monitor speakers, or recordings. The headphone output allows additional and independent high quality monitoring, providing sufficient output power and volume on high and low impedance headphones.

The comprehensive set of digital I/Os, centred around an AES/EBU input and output via XLR, also includes SPDIF coax, SPDIF optical or 8-channel ADAT. All I/Os can be used simultaneously, turning the unit into a swiss army knife interface that receives and sends all common digital audio formats. An integrated SRC (Sample Rate Converter) can be switched to one of the three inputs to solve clocking issues and to adapt to other sample rates. This allows, for example, the device to be AES clock-synchronised from the main source and to listen to SPDIF independently at the same time. MIDI I/O via an included breakout cable completes the package.

• 2x Mic/Line Inputs
• 2x XLR Outputs
• 1x Headphone Output

• 1x SPDIF Coaxial I/O
• 1x SPDIF Optical I/O
• 1x ADAT I/O
• 1x MIDI I/O
• Sample Rate Converter
• SteadyClock FS
• TotalMix FX
• USB bus-powered
• ARC USB
• Class-compliant mode
