RME Fireface UFX III

The Fireface UFX III is the centrepiece of any multitrack studio, handling up to 94 channels I/O with ease. Its unprecedented flexibility, compatibility, the inclusion of DURec (Direct USB Recording) and RME's famous low latency hardware and driver designs guarantee flawless operation in any mode and application.

Packed with professional features, including SteadyClock FS, MADI I/O (64 channels), a powerful DSP, USB 3.0 (full 94 channel I/O Class Compliant ready), TotalMix FX, Direct USB Recording, and support for the Advanced Remote Control USB (available separately), the Fireface UFX III is the professional's preferred tool for multitrack recording, mixing and mastering.

The Fireface UFX III is based on a newly developed analogue and digital board. While the analog board offers, for example, DC-coupled analogue outputs as well as new AD and DA converters with improved THD+N value, the digital board also enables interesting new features thanks to updated high-tech components.

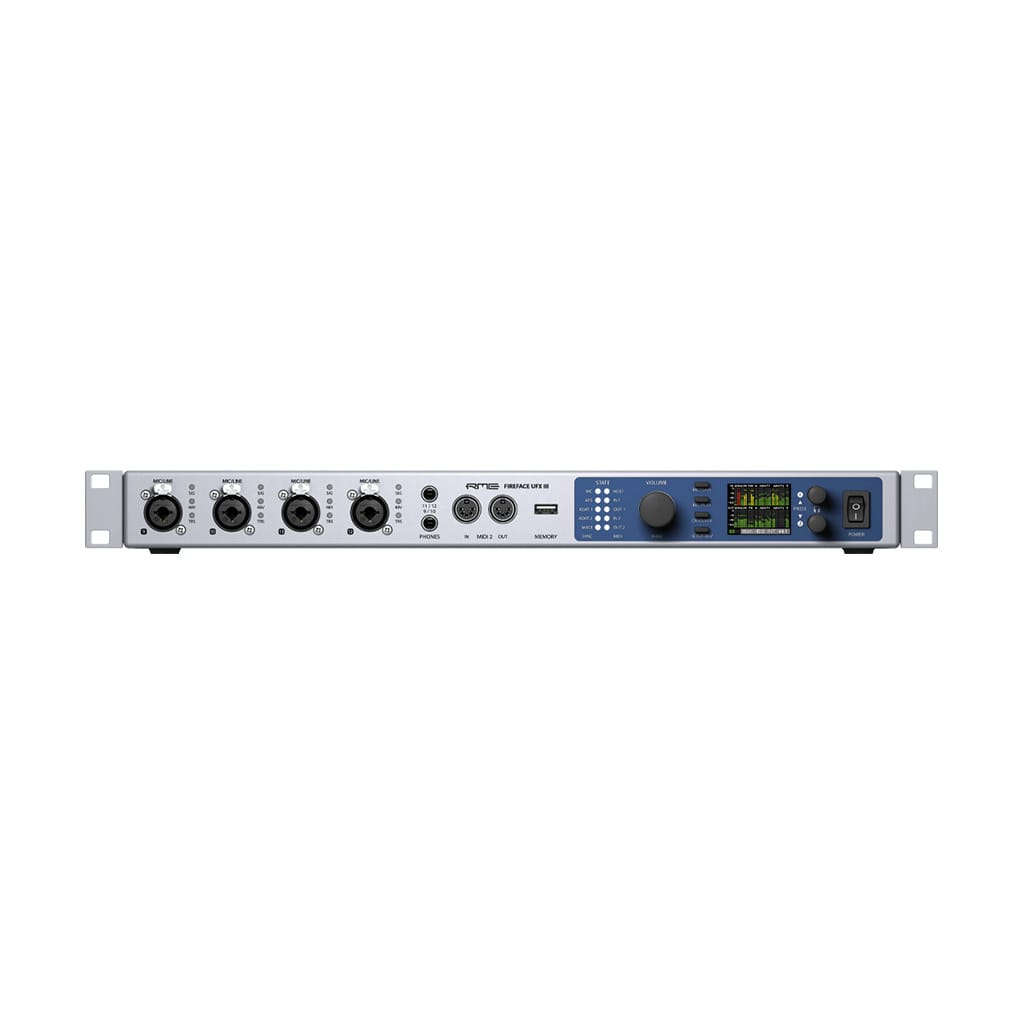

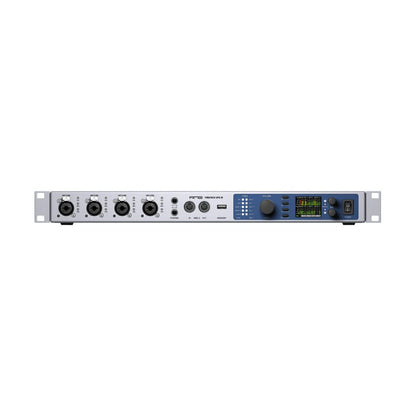

The front panel of the Fireface UFX III provides four high-performance XLR/TRS combo inputs for microphone, instrument and line signals, two stereo headphone jacks with +19 dBu output level, MIDI I/O, and a USB port. In combination with the DURec function (Direct USB Recording), the USB port allows independent recording of selected input and output signals (up to 80 channels) to a connected USB storage medium.

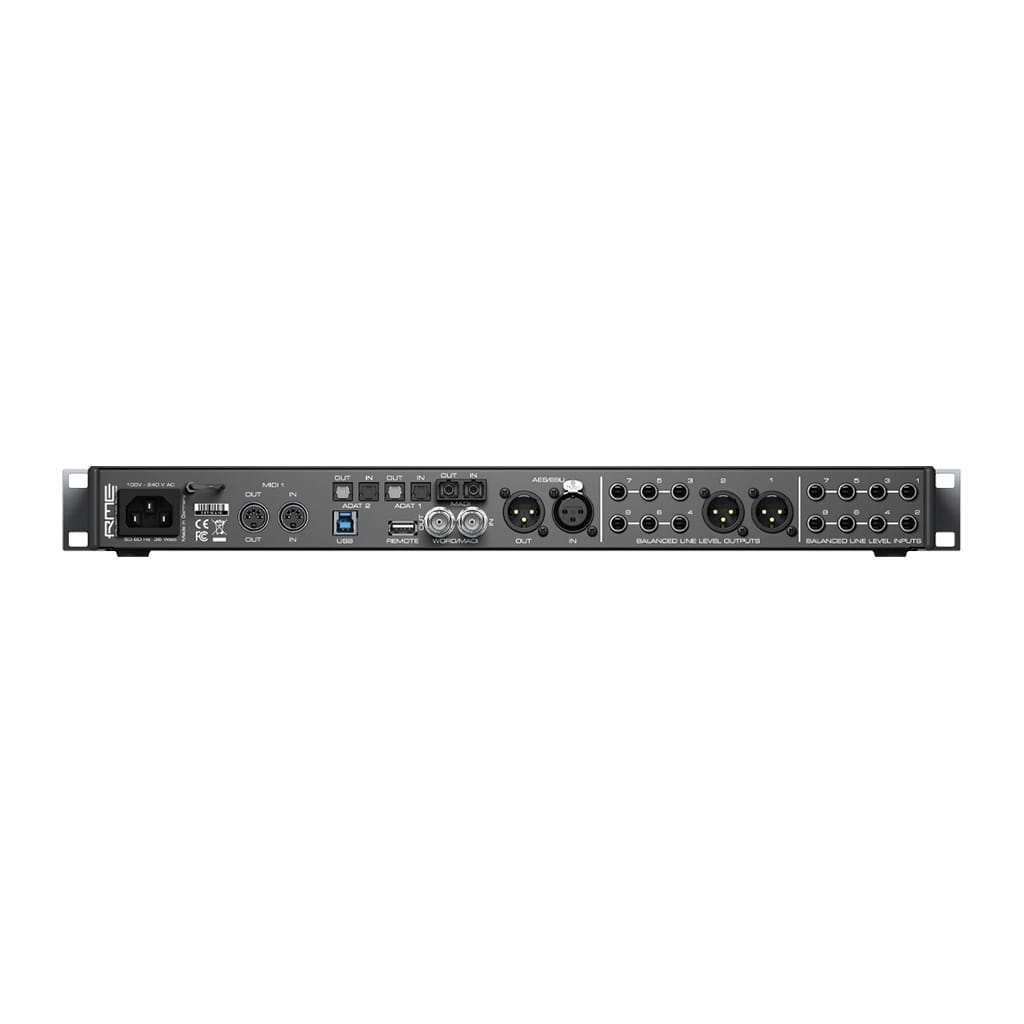

The rear panel reveals the full connectivity of the Fireface UFX 3. Besides another MIDI I/O, the two optical ADAT I/Os, an AES/EBU I/O, and eight balanced analogue outputs with line level (including XLR stereo monitor outputs) are available. With the new Multi-Mode, the two ADAT I/Os can be used as separate optical SPDIF inputs and outputs in addition to the AES I/O. Furthermore, the Fireface UFX3 offers an optical MADI interface (SC) with 64 bidirectional channels. The Word Clock connectors (BNC) work as additional coaxial MADI input and output if required.

The Fireface UFX III opens the doors to a host of RME and 3rd party digital and analog I/O solutions. Expanding your analogue channel count, the ability to route/mix within the digital domain through numerous sources presents many flexible options. Multiple external MADI devices can also be connected in series.

To further enhance MADI flexibility, the Fireface UFX III boasts some typical RME-style features. For example in USB 2 mode, which is limited to 30 channels I/O (12 analogue plus 16 ADAT plus AES), the MADI I/O is still available via RME's integrated hardware mixer TotalMix FX. Word Clock I/O (BNC) can be switched to MADI I/O (coaxial), and a special split mode even supports the use of both MADI I/Os simultaneously, with 32 channel each on optical and coaxial.

• 12 x Analogue I/O
• 4 x Mic/Line/Instrument Inputs
• 2 x Headphone Outputs
• 1 x AES/EBU I/O
• 2 x ADAT or SPDIF I/O

• 1x MADI Optical I/O
• 1x MADI Coaxial I/O
• 1 x Word Clock I/O
• 2 x MIDI I/O

• TotalMix FX
• ARC USB
• 1x RME USB 3.0
• DURec
• Class Compliant Mode

• AutoSet Digital Gain Control
• DC-coupled Outputs
• Included FX
• SteadyClock FS
