Shadow Hills The Equinox

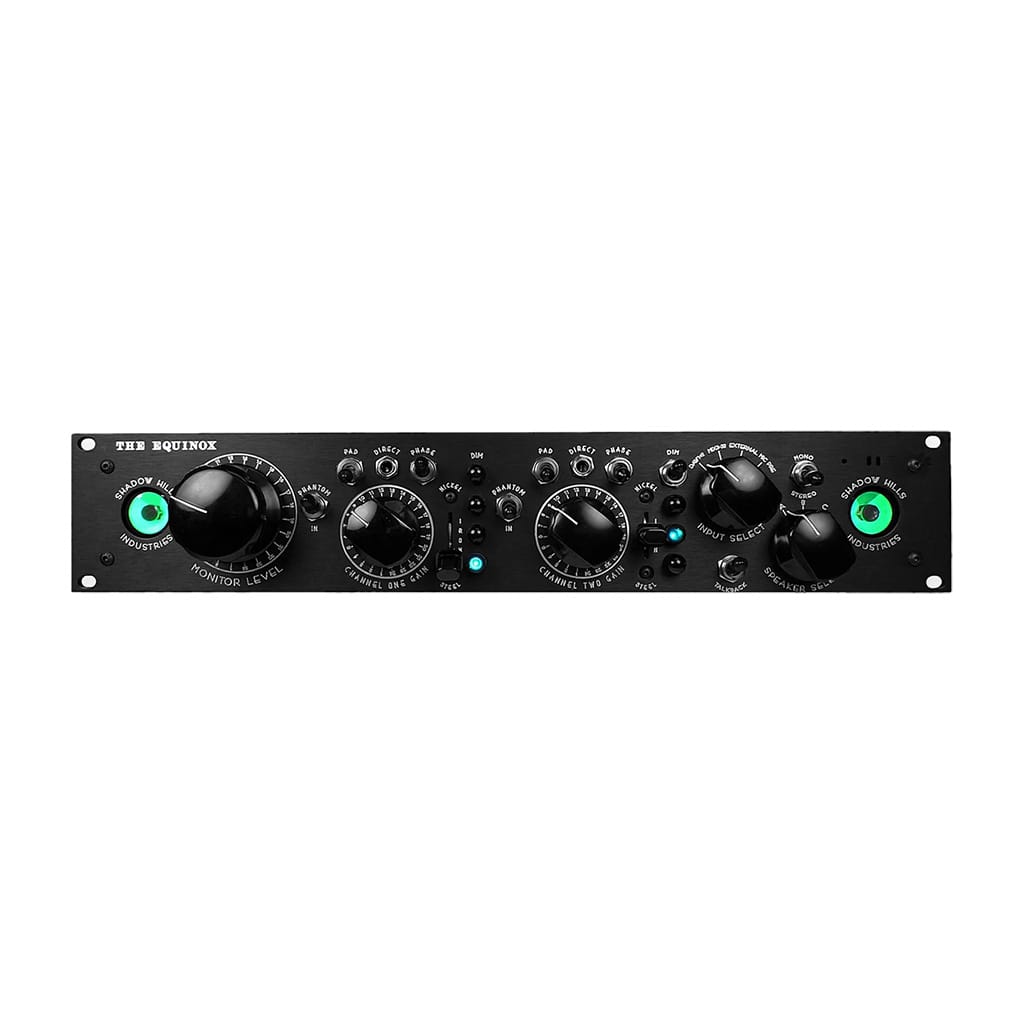

The Shadow Hills Equinox is a complete recording console. First, the control room section features a twenty-four-position discrete monitor volume control and a three-position speaker selector. The four-position input selector chooses

The four-position input selector chooses from DAW 1+2, Channels 3 - 32 summed, 2-track or external input, and mic preamp. The summing buss is a 30-channel mixer utilising copper buss bars and esoteric resistors, for simply the finest sounding passive monitor section ever made. Combined through our switchable custom output transformers, Nickel, Iron, and Steel. Effectively giving you the sound of three different consoles. The mic preamps are the same as the stellar GAMA.

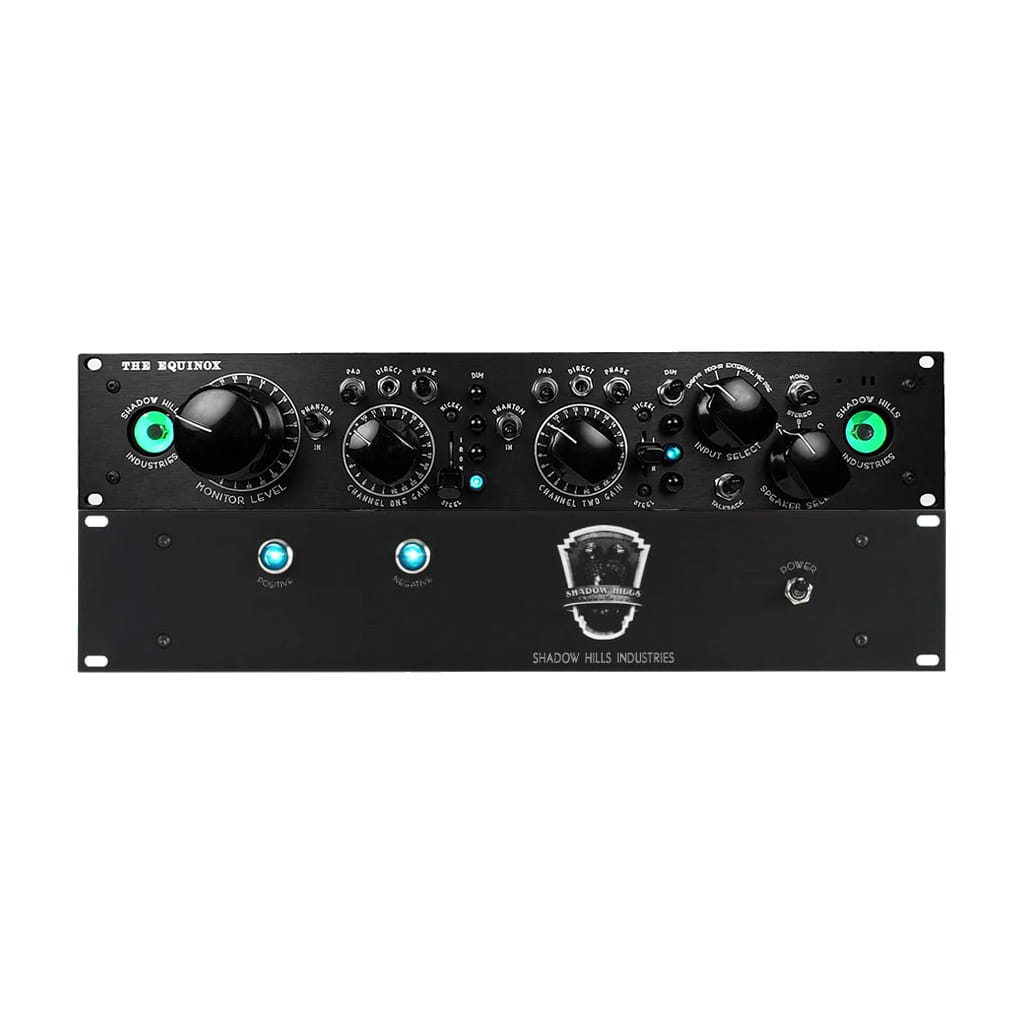

There is a built-in talkback microphone, a dim and a mono stereo switch, and VU-meters. The Equinox may just be the most solid two rack spaces ever built. With it you can record, mix, and monitor to the tolerance of a bygone era. The front panel is engraved. The knobs are bake-lite, and the two-rack space external power supply will work in any country on any voltage.

A dual-channel version of the Golden Age Microphone Amp, and Thirty-two channel summing mixer in a 2u package. The microphone preamp features three selectable output transformers, to create a broad pallet of sonic characteristics. 24 position Stepped input switches included. 60dB gain, phase, 48v, 1/4" DI.

Custom Steel Transformer (hand-wound to match a favourite 1970's American output transformer.) Tight and punchy, the sound of rock and roll.

Custom Nickel Transformer (hand-wound transformer based on an L.A. custom console) Super clear and wonderful sounding.

Iron Transformer modern version of the Class A St. Ives 1166 Neve output transformer.

The mode switch selects between microphone preamp and sixteen or thirty-two channel summing mixer. The summing mixer uses hand-matched esoteric holco resistors, The same type used in the Shadow Hills mastering consoles and attenuators. The mixer output also uses the selectable output transformers, thus allowing three different sounding mix bus options.

The control volume section includes: Control room volume, 3 speaker selector, 2x two-track inputs.

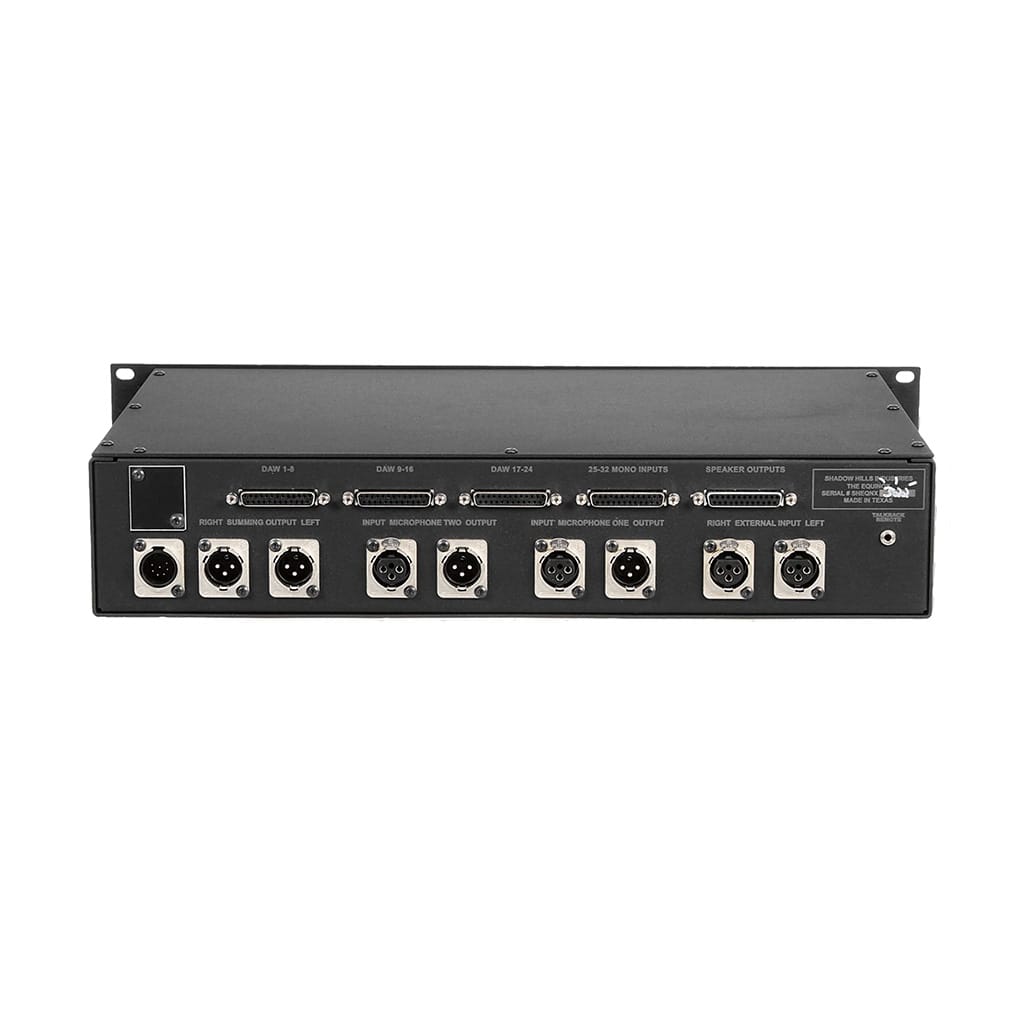

You toggle between your DAW stereo mix, the summing mixer's stereo output, or just the 2x mic pre outputs. Dim, mute and talk back. Rear panel connections: sum buss inputs via DB25, in stereo pairs. Odd/left, even/right. All other connections via XLR. 3 Speaker selector on 1 DB25 - XLR cable wired as: 1-2 Speaker set A, 3-4 Speaker set B, 5-6 Speaker set C, 7-8 Cue outputs.
