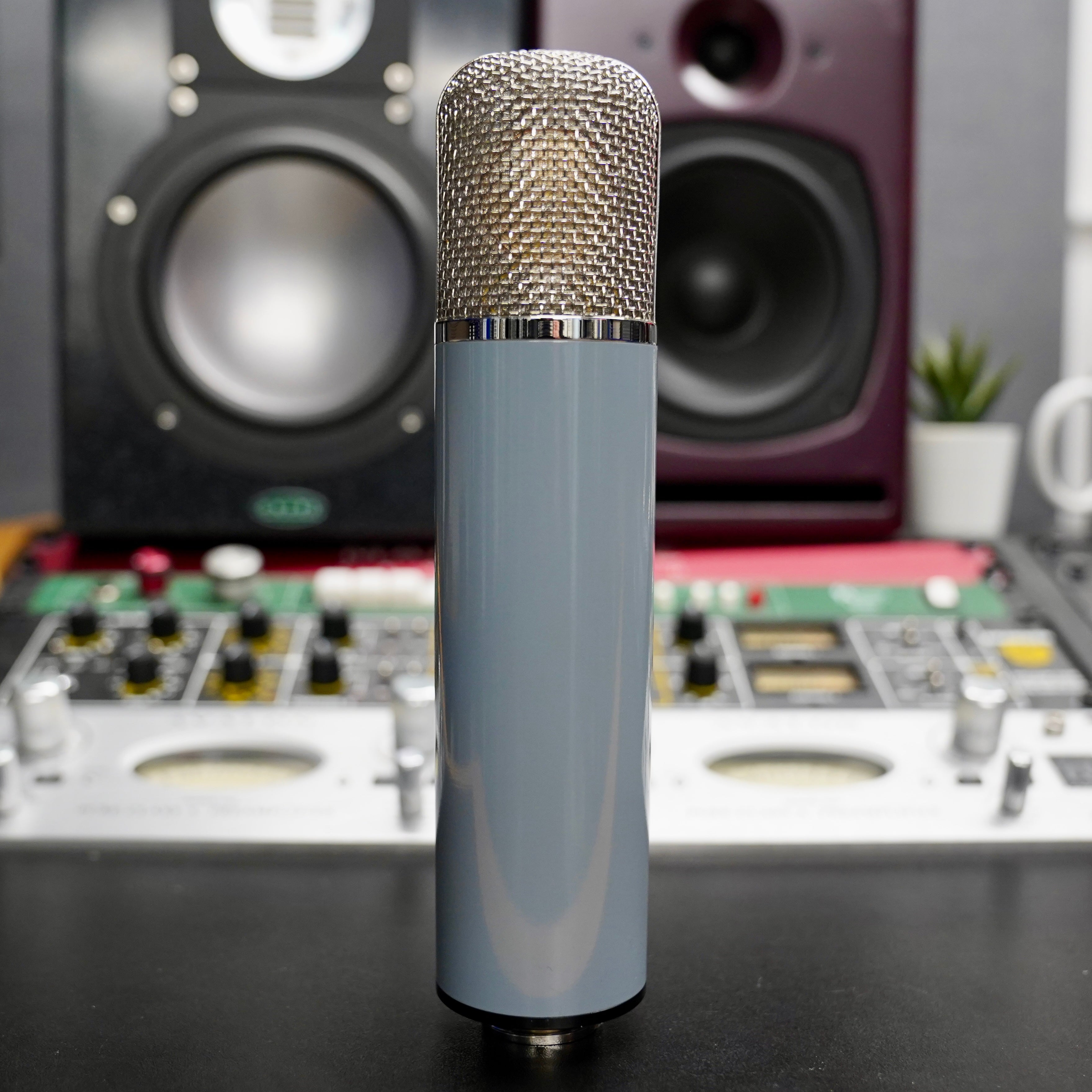

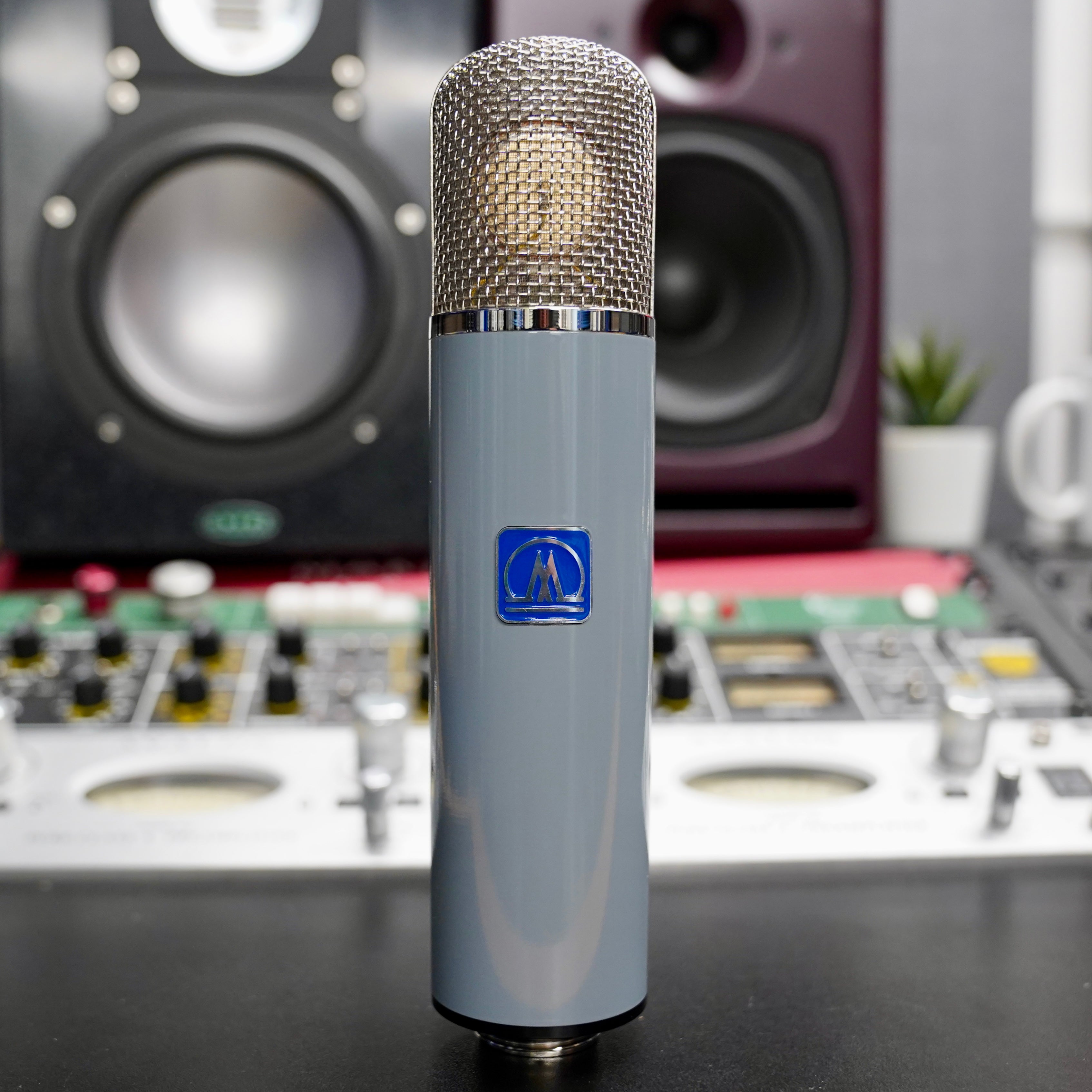

Myburgh M1 Tube Condenser Mic
(B-Stock)
Ex demo mic.
Condition: Very good

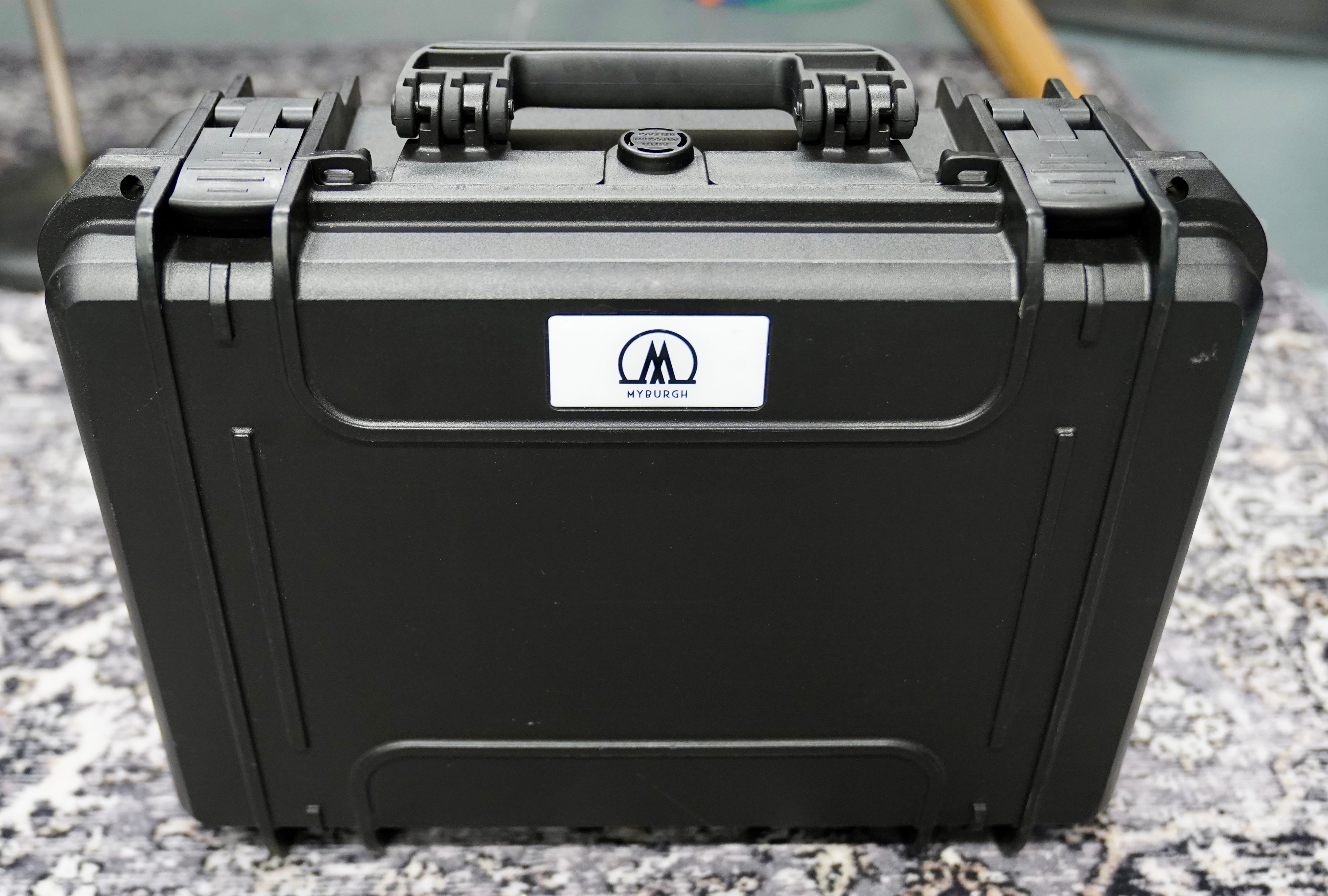

Accessories: Flight case, power supply and cable

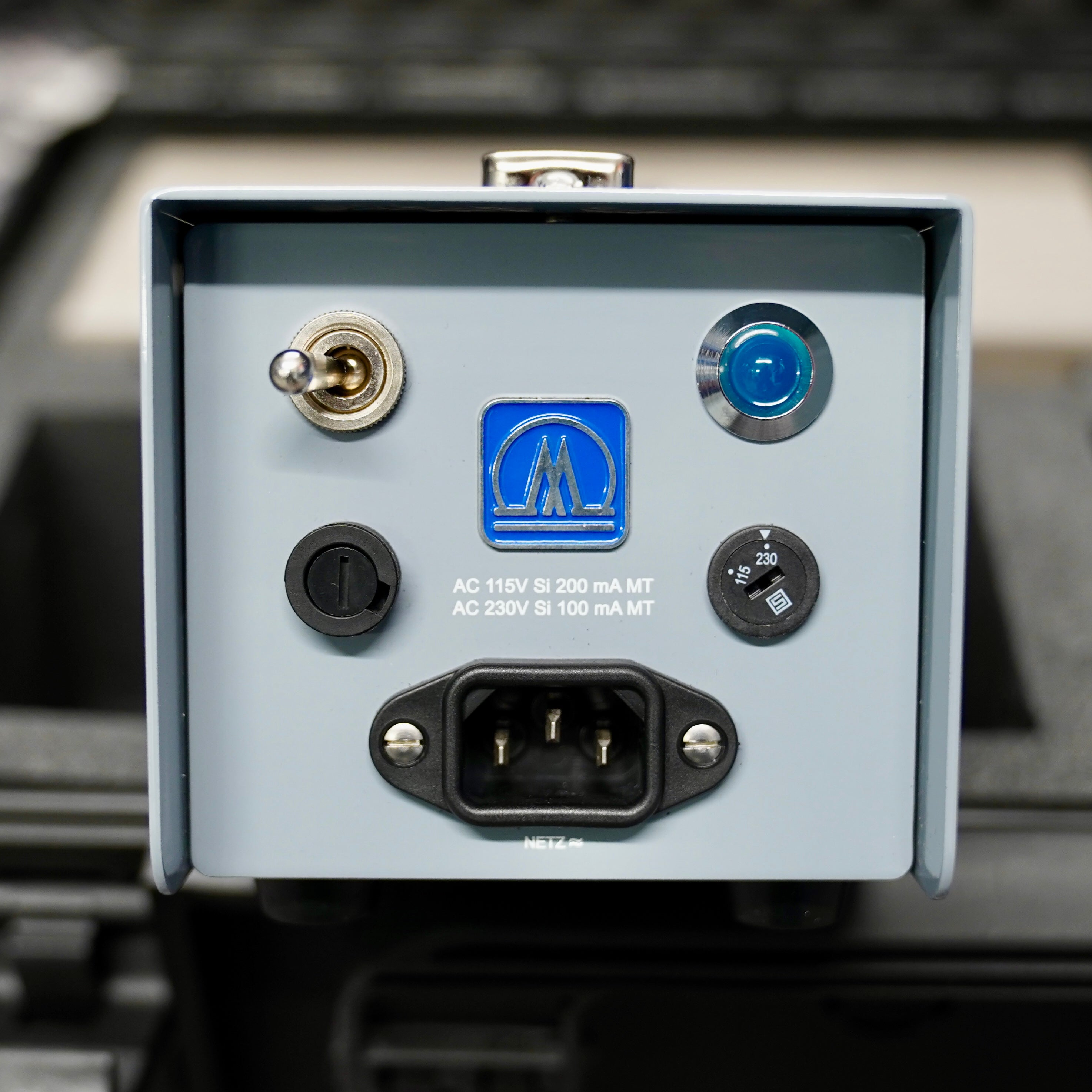

Voltage: 115/230V
The M1 is a new tube microphone. A whole new circuit design inspired by the vintage greats. Designed by Andrew Myburgh, Andreas Grosser and Eckehard Dux.
We are proud to announce these are available to the UK exclusively at Make Noise Pro Audio.
Capsule & Tube
The M1 incorporates a German made Mylar M7 capsule manufactured by Siegfried Thiersch and a Russian military grade long life tube.
Amplifier &
Transformers
The M1’s amplifier has an incredible linear frequency response with minimal cut off below 30Hz or over 20kHz. With two custom built transformers; one in the mic and another in the power supply, the amplifier design, combined with the German made capsule and the new capsule headbasket design give the M1 its unique sound.
Noise Floor,
Output & SPL
The M1 also has a super low noise floor, a monster output and handles SPL like your favourite FET kick drum mic does. Variable polar patterns and true cardioid is a main feature.
Specifications
Circuit design
Original all new circuit design
Polar pattern

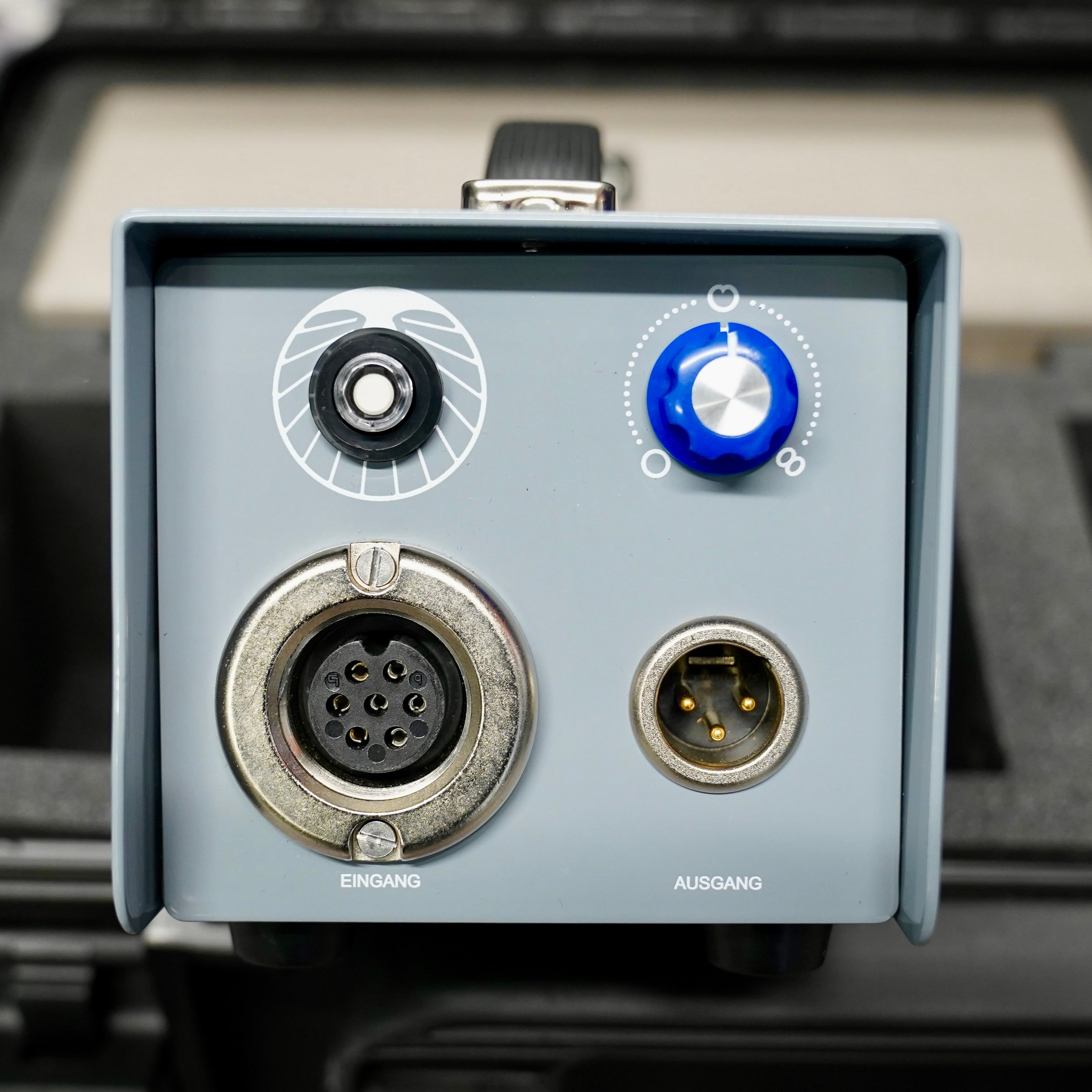

Variable on detented potentiometer:
Omni; Cardioid; Figure 8 plus 100% Cardioid selectable on PSU
Frequency response
20 Hz - 20 kHz
Internal pre-amplification stage
Linear 30 Hz - 20 kHz
Sensitivity
24mV/Pa
Equivalent noise level
15dBA
Maximum SPL
124 dB
Capsule
M7 Thiersch Mylar
Tube
Russian Military Grade Tube
Transformers
Custom specifications. M1 and PSU transformers by Pikatron
Cable
Mogami Neglex 3172 tube microphonecable 7m (23 ft)
Connectors

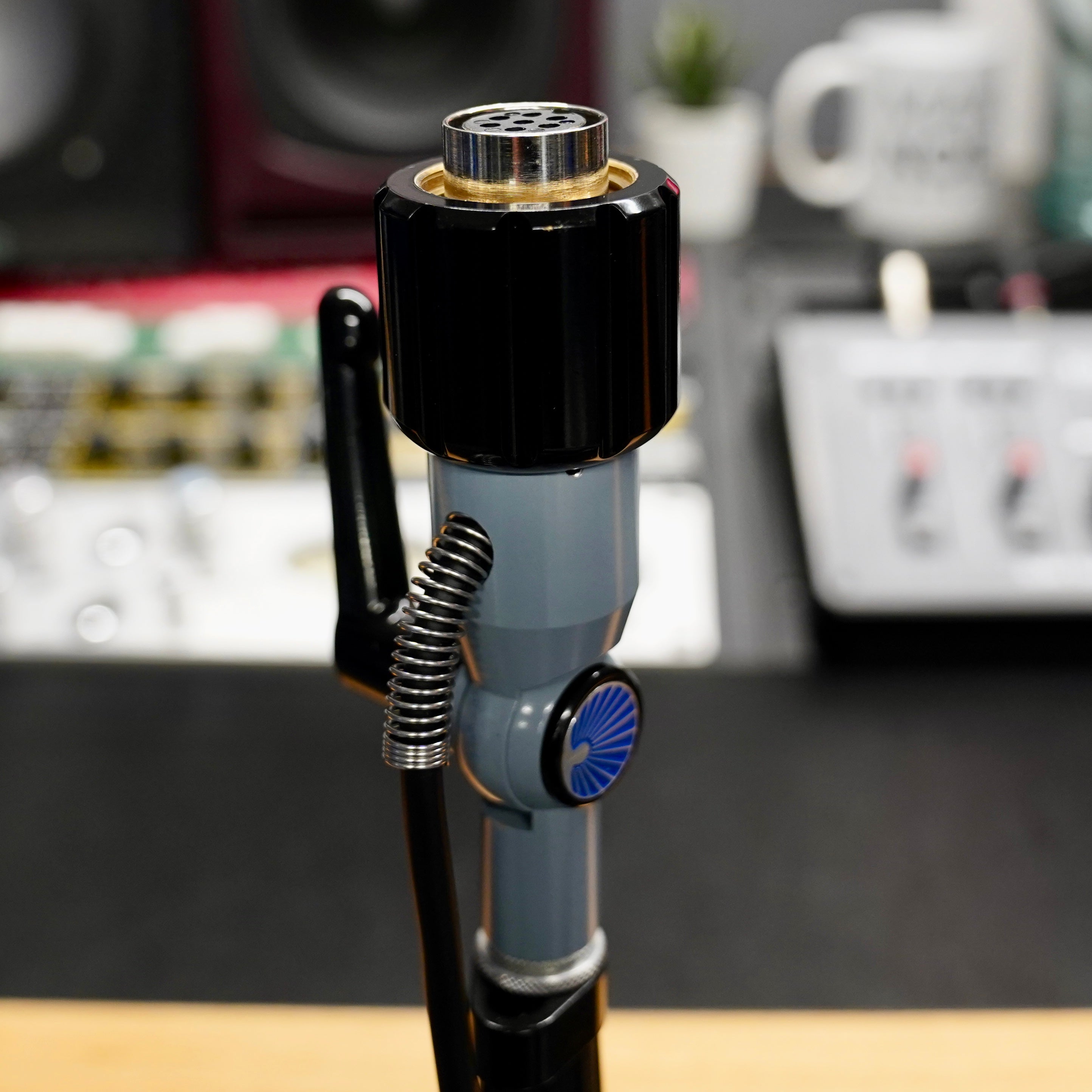

7 Pin = Binder and 3 pin XLR = Neutrik
Output impedance
200 Ω
Dimensions

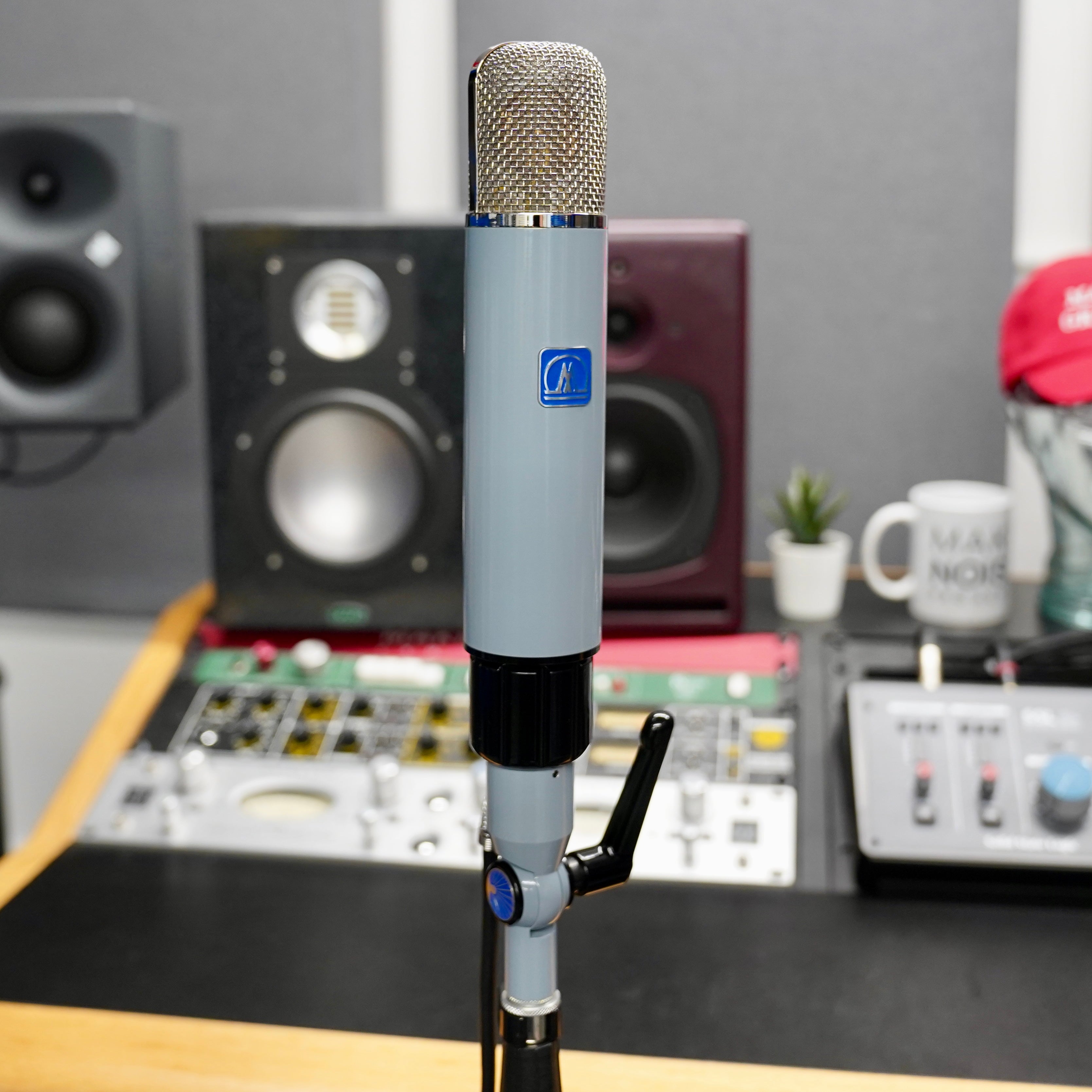

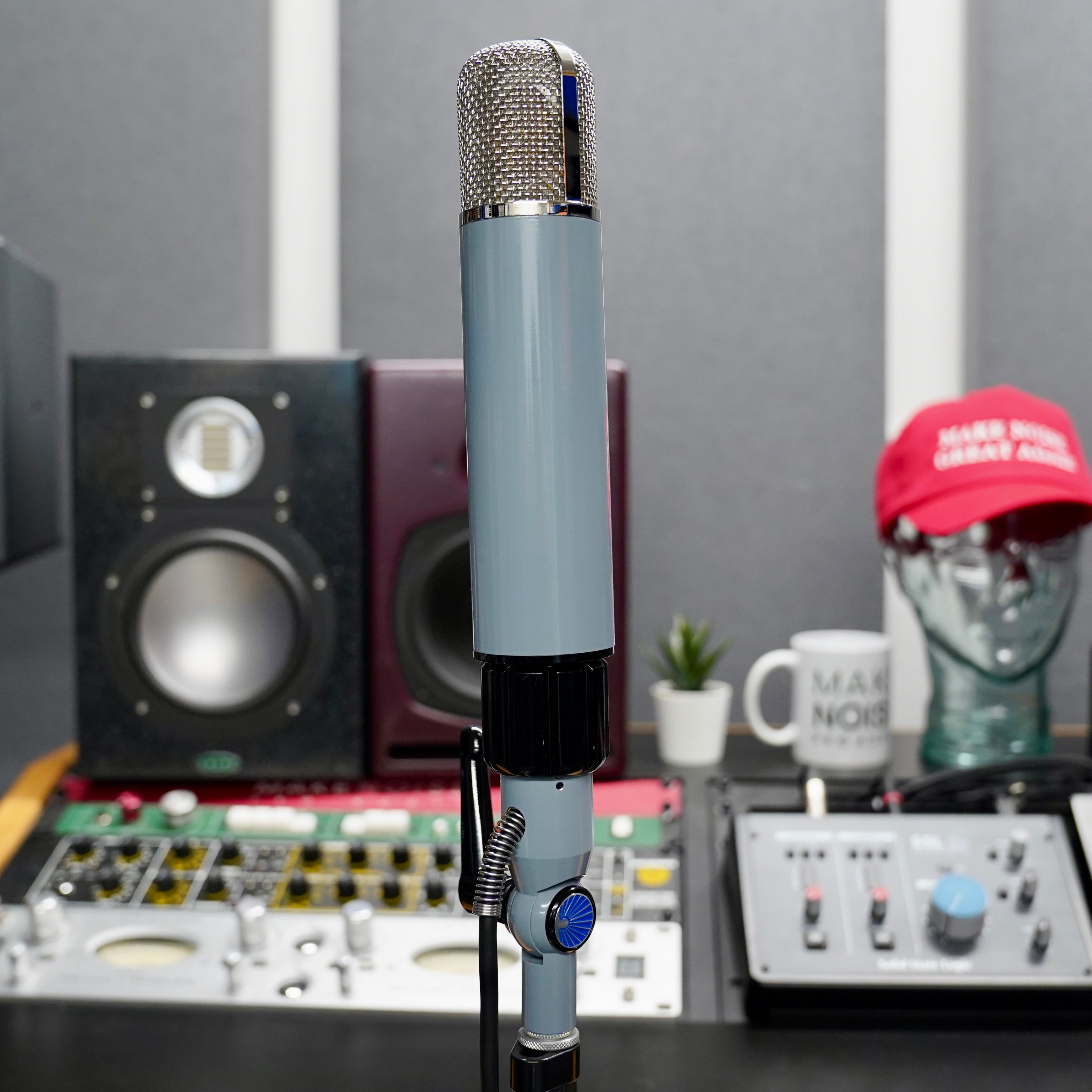

M1 22.5cm (8.85”) / M1 + Swivel = 35.5cm (14”)
Weight
M1 = 0.6 kg (1.3 lbs) / M1 + Swivel = 1.9 kg (4.2 lbs)
Shipping weight
9 kg (20 lbs)
Peripherals

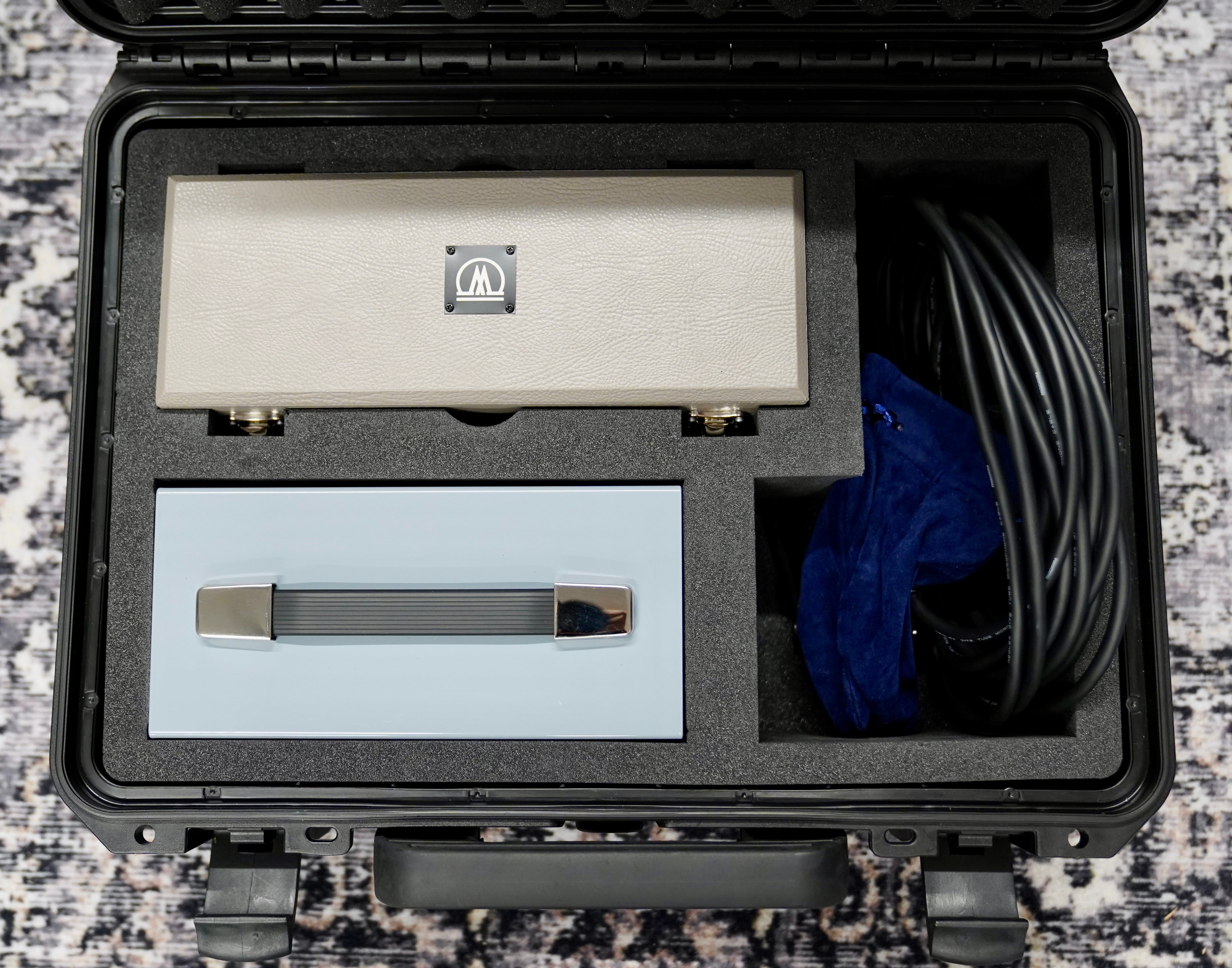

Custom M1 box, Waterproof Case, Swivel pouch
